Taylor Cable 79230 10.4mm 409 Spiro Pro Race Fit Spark Plug Wires 90° Red

Taylor Cable 79230 10.4mm 409 Spiro Pro Race Fit Spark Plug Wires 90° Red

Part Number: 79230
Skip to product information

Features & Benefits

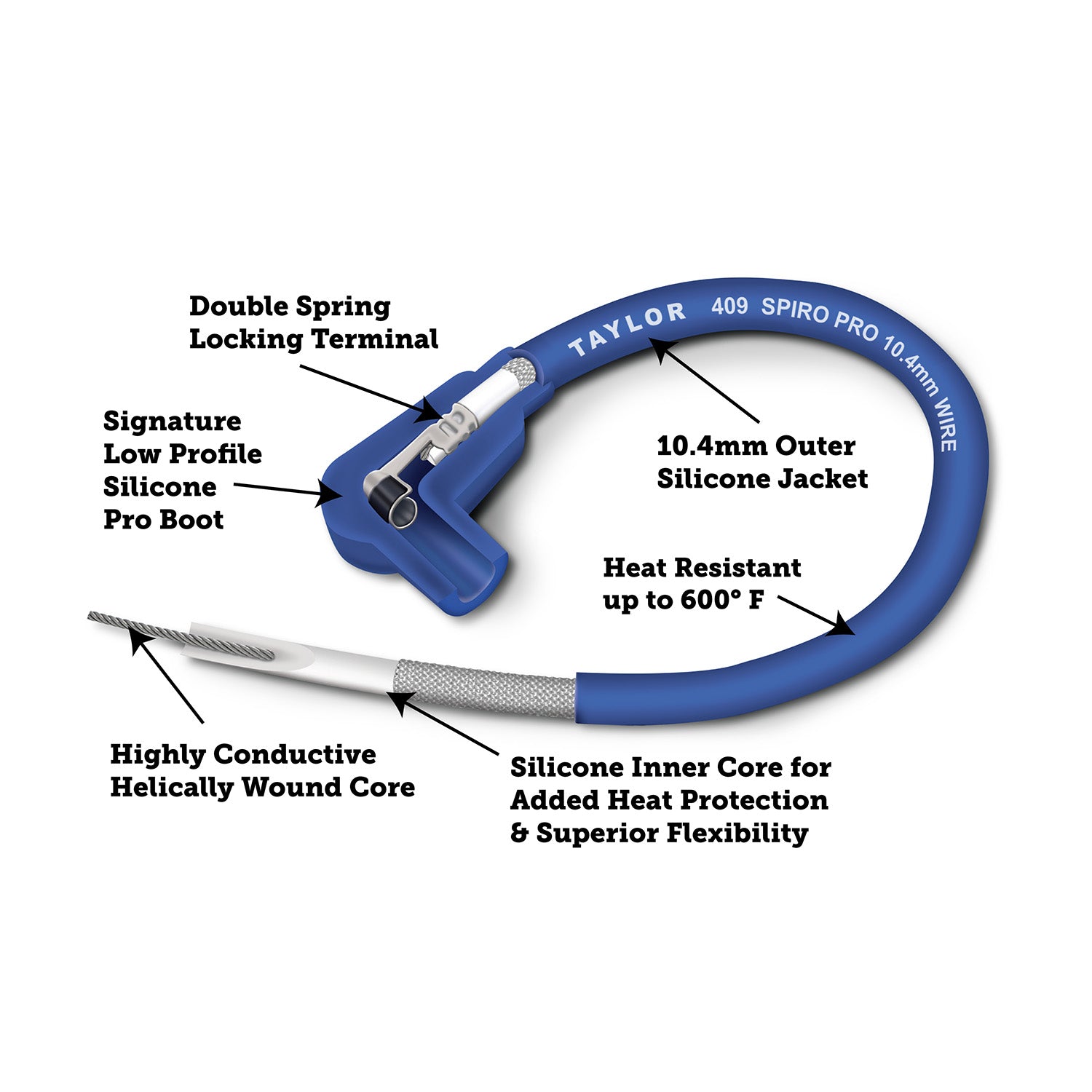

  • 350 ohms per foot
  • 10.4 mm Outer Silicone Jacket
  • Highly conductive helically wound core
  • Silicone inner core provides added heat protection and superior flexibility throughout its lifetime.
  • Superior RFI / EMI suppression for applications with CD or electronic ignitions, on board computers, stereos or pit radios

Race Fit Wires are engine specific rather than model specific applications where headers are being used. Sets are cut to exact length with boots and terminals on each end ready to install. Comes with an extra-long coil wire, one end complete, the other end ready to cut and install the correct boot for your choice of high-performance coil. 8.0mm Spiro Pro Ignition Wires are engineered to deliver superior performance with unsurpassed quality. They are the top choice amongst racers and enthusiasts with heat protection up to 600° F and 65,000 volts of dielectric strength. 8.0mm Spiro Pro wire sets offer superior heat protection across a broad range of applications for street and track.


For over 90 years, Taylor Cable Products have been the top choice of racers and enthusiasts for its value and high-performance features. Taylor Cable is an icon of quality and customer satisfaction in the automotive performance and racing markets. We are proud to have our Ignition Wire Sets firing some of the fastest race and street vehicles in the world.

Specifications

Wire Series 409
Insulation Color Red
Resistance 350 ohm/ft
Outside Diameter 10.4 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 10.4 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Red
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions

Download PDF
