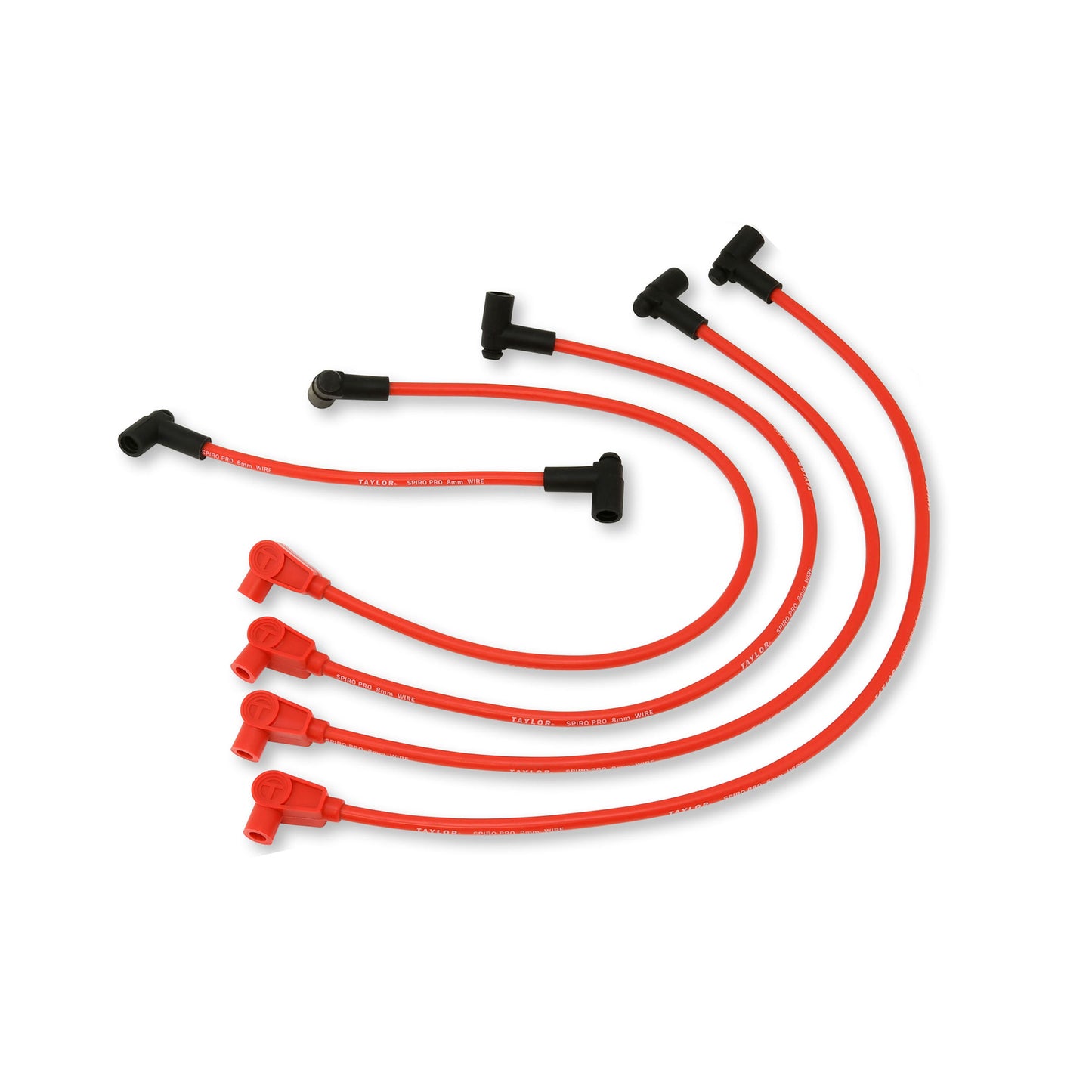

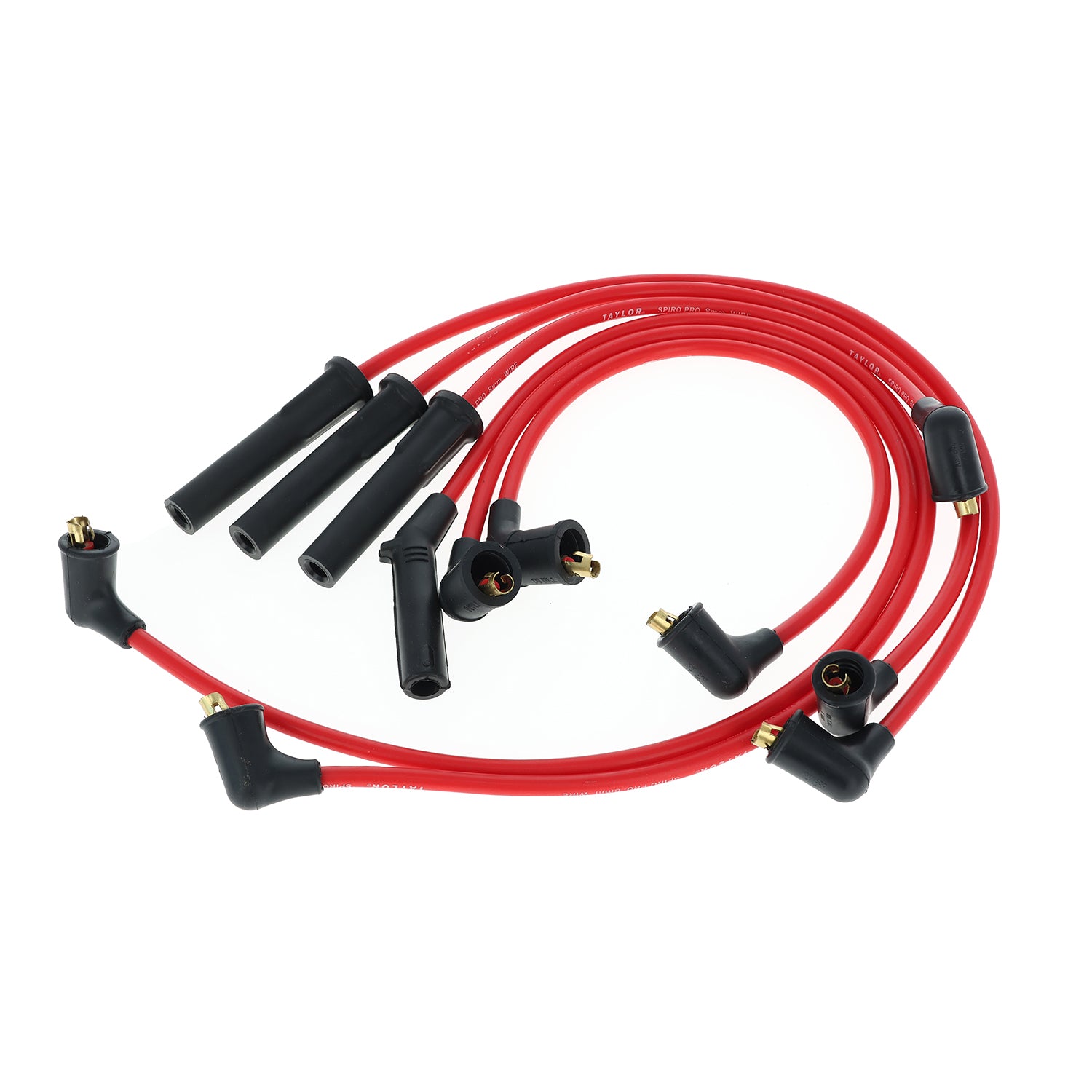

1989-97 Nissan 2.4L SOHC 4-Cylinder 8mm Spiro-Pro Spark Plug Wire Set

1989-97 Nissan 2.4L SOHC 4-Cylinder 8mm Spiro-Pro Spark Plug Wire Set

Part Number: 77247
Skip to product information

Features & Benefits

8mm Spiro Pro wire sets are for street & strip, off road, street rods, and custom cars. 8mm Spiro Pro wires are engineered to deliver superior performance with unsurpassed quality. They are the top choice amongst racers and enthusiasts alike with heat protection up to 600° Fahrenheit and 65,000 volts of dielectric strength.

Custom Wires are designed to replicate your OE wire set. Each wire is cut to length and booted to match OE wires. Lower resistance will get more fire to your spark plugs, increased horsepower and torque, and improved fuel mileage.

  • Custom fit for 1989-97 Nissan 2.4L SOHC 4-Cylinder applications. Please see applications chart on the product page for complete list of applications.

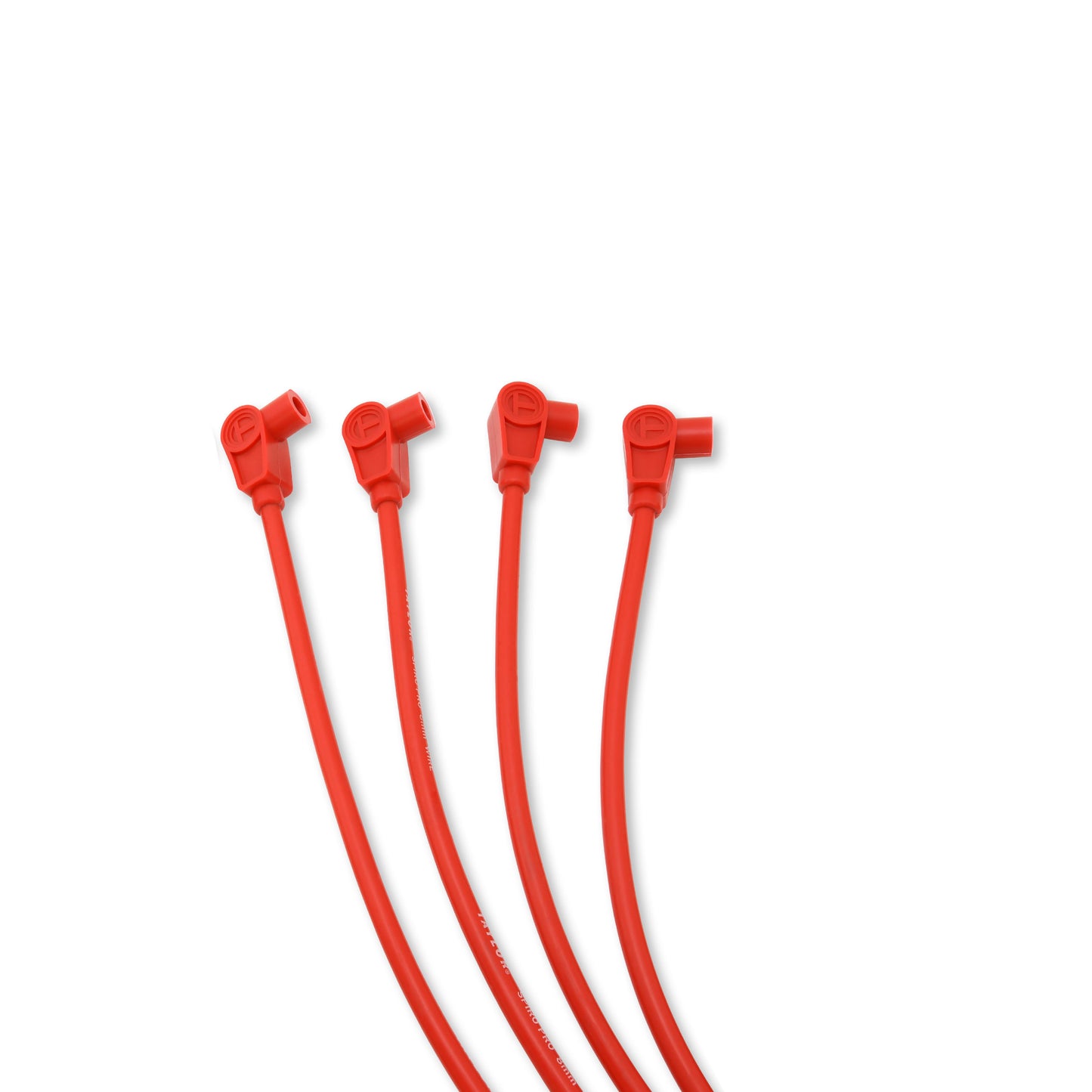

  • Spark Plug Wire Lengths (inches): 4 cylinders - 14, 20, 23, 29, coil not required
  • Red

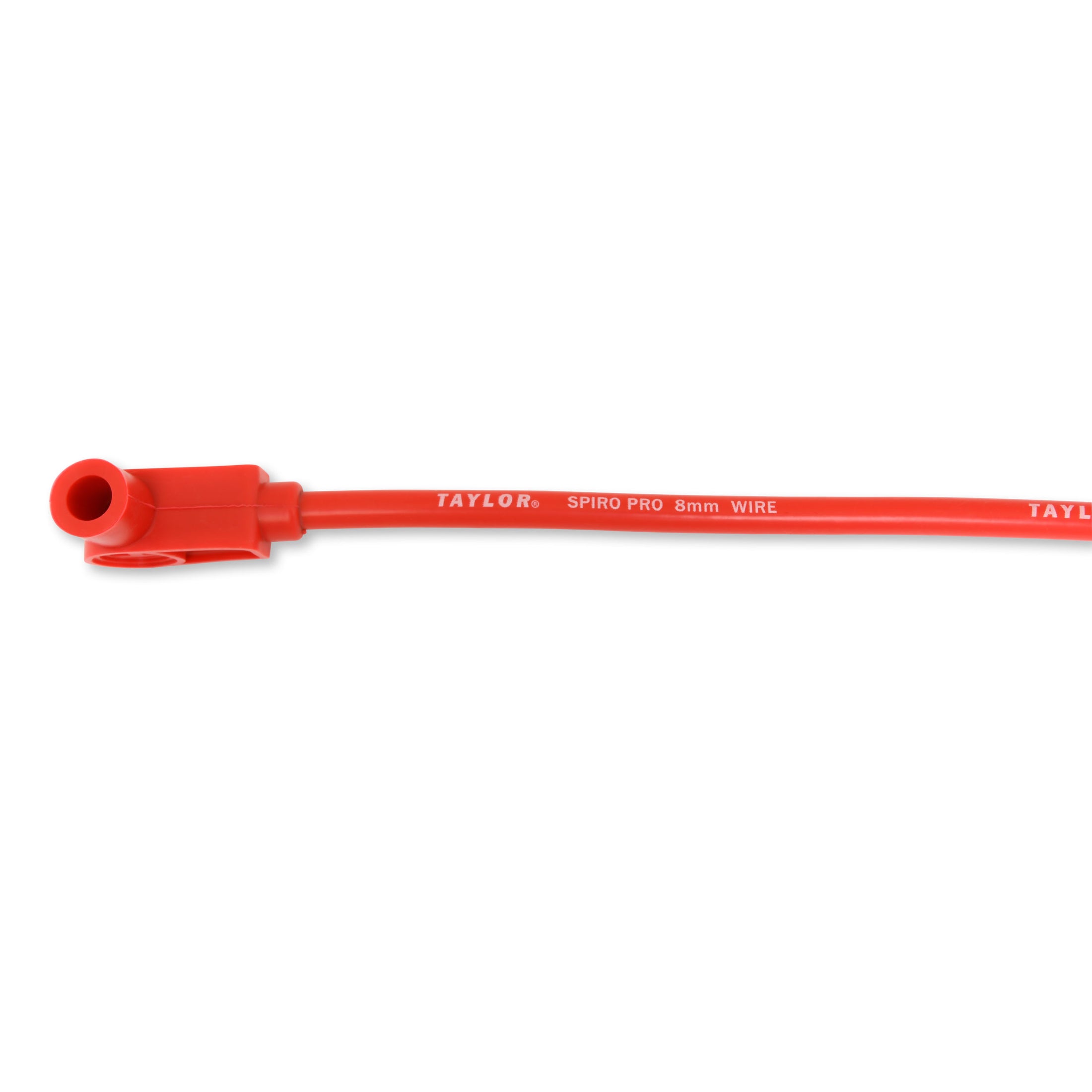

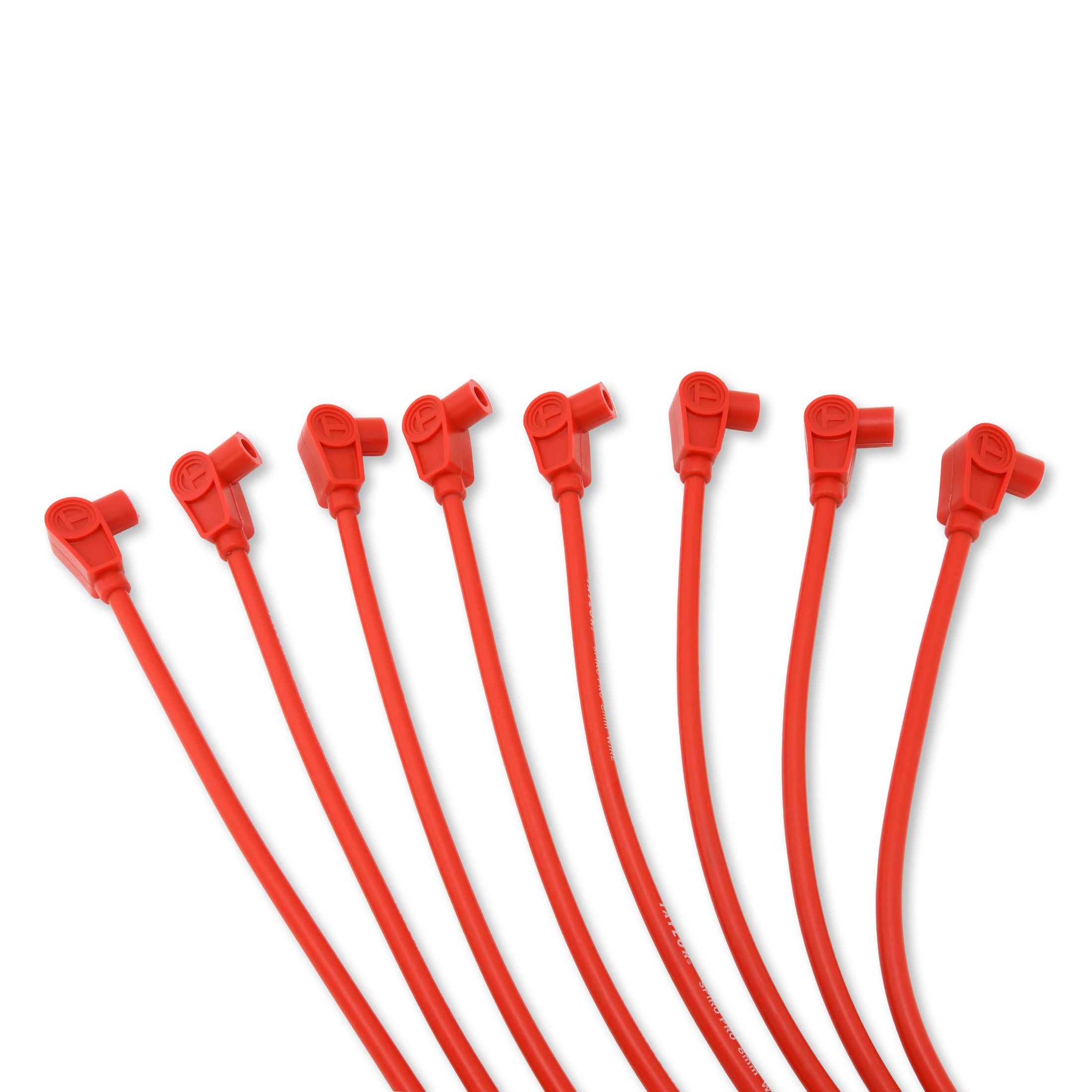

  • 180°/135° spark plug boot angle

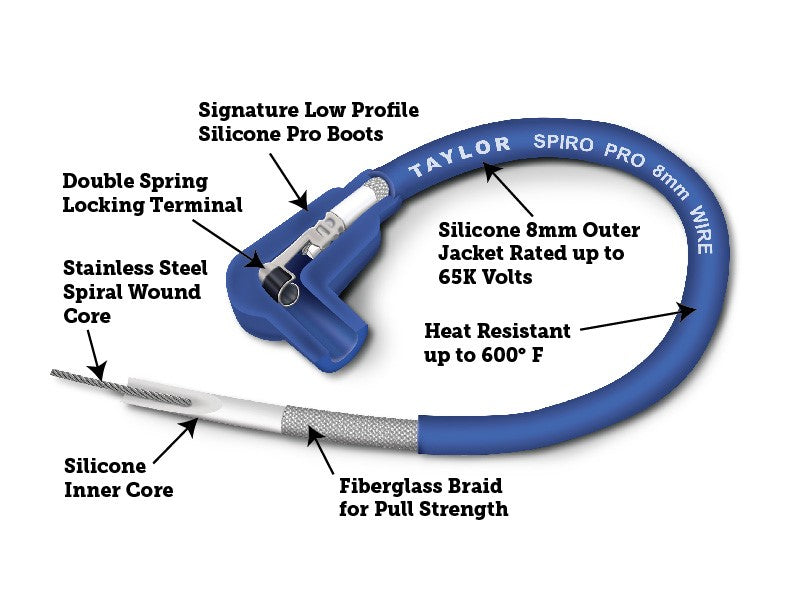

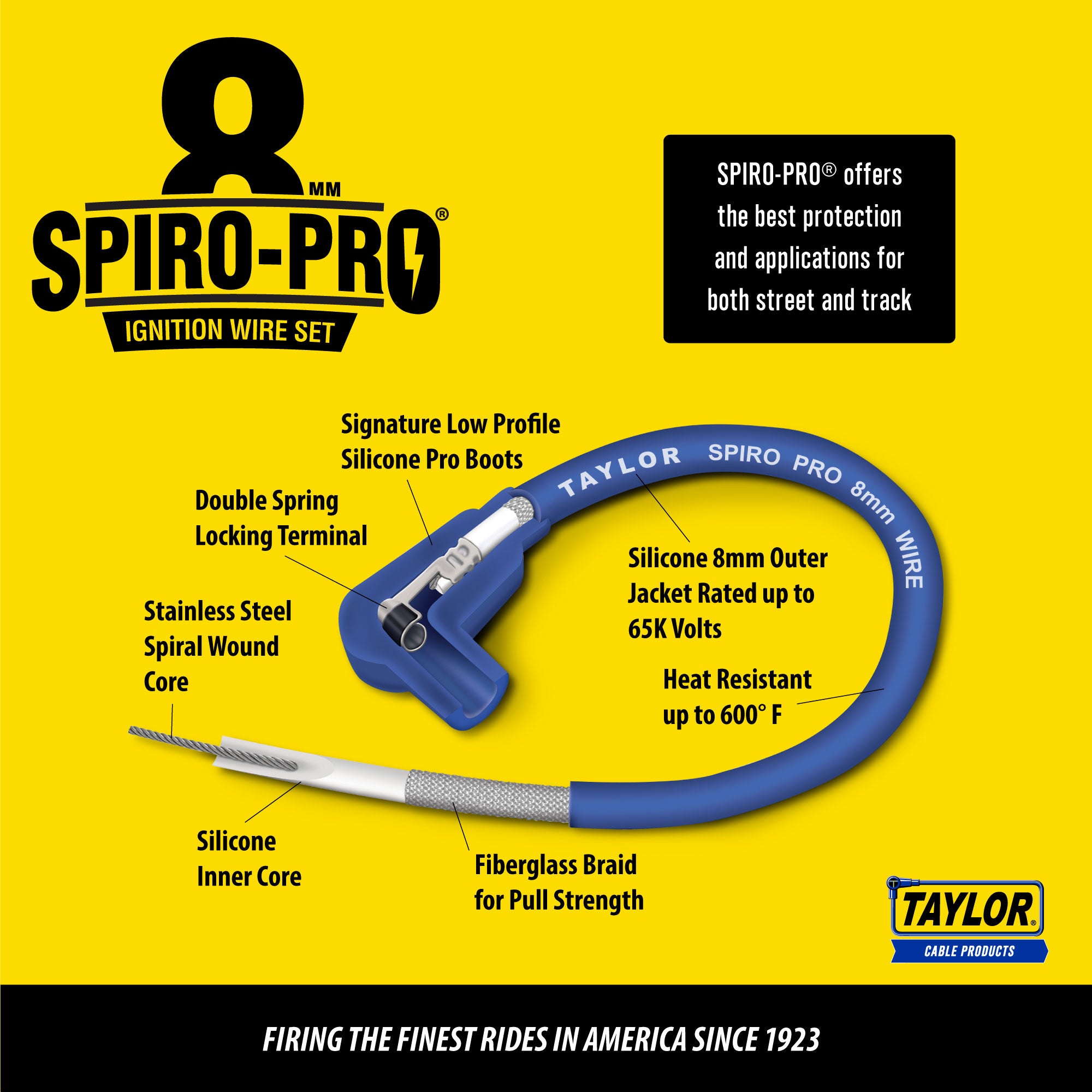

  • 8.0mm outer silicone jacket is rated up to 65K volts and heat resistant to 600° Fahrenheit
  • Silicone inner core provides heat protection and superior flexibility throughout its lifetime
  • 350 ohms per foot
  • Highly conductive stainless steel spiral wound core
  • Superior RFI / EMI suppression for applications with CD or electronic ignitions, on board computers, stereos or pit radios
  • Taylor low profile Silicone Pro Boots
  • Double spring lock spark plug terminals

Specifications

Wire Series Spiro Pro
Insulation Color Red
Resistance 350 ohm/ft
Outside Diameter 8 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 8 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Red
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions
Download PDF
Applications

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 108.99 $7.49 flat rate
UPS Ground $109+ Free


  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

Reviews

1989-97 Nissan 2.4L SOHC 4-Cylinder 8mm Spiro-Pro Spark Plug Wire Set

1989-97 Nissan 2.4L SOHC 4-Cylinder 8mm Spiro-Pro Spark Plug Wire Set

Part Number: 77247
Regular price $62.88
Sale price $62.88 Regular price Save %

Sale Out of Stock
Part Number: 77247
Does This part fit My vehicle?
View All Vehicle Applications
Product details
Payment methods
  • Visa
  • Mastercard
  • PayPal
  • American Express
  • Discover
  • Affirm

Need help? Call us at 909-599-5955

Emissions code

EMISSIONS CODE

What does this emissions code mean?

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955

Similar Products

View full details

Features & Benefits

8mm Spiro Pro wire sets are for street & strip, off road, street rods, and custom cars. 8mm Spiro Pro wires are engineered to deliver superior performance with unsurpassed quality. They are the top choice amongst racers and enthusiasts alike with heat protection up to 600° Fahrenheit and 65,000 volts of dielectric strength.

Custom Wires are designed to replicate your OE wire set. Each wire is cut to length and booted to match OE wires. Lower resistance will get more fire to your spark plugs, increased horsepower and torque, and improved fuel mileage.

  • Custom fit for 1989-97 Nissan 2.4L SOHC 4-Cylinder applications. Please see applications chart on the product page for complete list of applications.
  • Spark Plug Wire Lengths (inches): 4 cylinders - 14, 20, 23, 29, coil not required
  • Red
  • 180°/135° spark plug boot angle
  • 8.0mm outer silicone jacket is rated up to 65K volts and heat resistant to 600° Fahrenheit
  • Silicone inner core provides heat protection and superior flexibility throughout its lifetime
  • 350 ohms per foot
  • Highly conductive stainless steel spiral wound core
  • Superior RFI / EMI suppression for applications with CD or electronic ignitions, on board computers, stereos or pit radios
  • Taylor low profile Silicone Pro Boots
  • Double spring lock spark plug terminals

Specifications

Wire Series Spiro Pro
Insulation Color Red
Resistance 350 ohm/ft
Outside Diameter 8 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 8 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Red
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions
Download PDF
Applications

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 108.99 $7.49 flat rate
UPS Ground $109+ Free


  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

Reviews

1989-97 Nissan 2.4L SOHC 4-Cylinder 8mm Spiro-Pro Spark Plug Wire Set
1989-97 Nissan 2.4L SOHC 4-Cylinder 8mm Spiro-Pro Spark Plug Wire Set
Regular price $62.88
Sale price $62.88 Regular price

You may also like

Applications

Year / Make / Model 1990 Nissan Axxess
Notes

Year / Make / Model 1995 Nissan Pickup Base
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1995 Nissan Pickup XE
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1996-1997 Nissan Pickup
Notes

Year / Make / Model 1990-1994 Nissan D21 Base
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1994 Nissan D21 XE
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1989-1990 Nissan 240SX XE
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1989-1990 Nissan 240SX SE
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1998 Nissan Frontier
Notes

Year / Make / Model 1999 Nissan Frontier
Engine Type L4
Engine Size(s) Liters: 2.4
Notes

Year / Make / Model 1990-1992 Nissan Stanza
Notes
