Taylor Cable 76047 8mm Spiro Pro Race Fit Spark Plug Wires 90° Black

Taylor Cable 76047 8mm Spiro Pro Race Fit Spark Plug Wires 90° Black

Part Number: 76047
Skip to product information

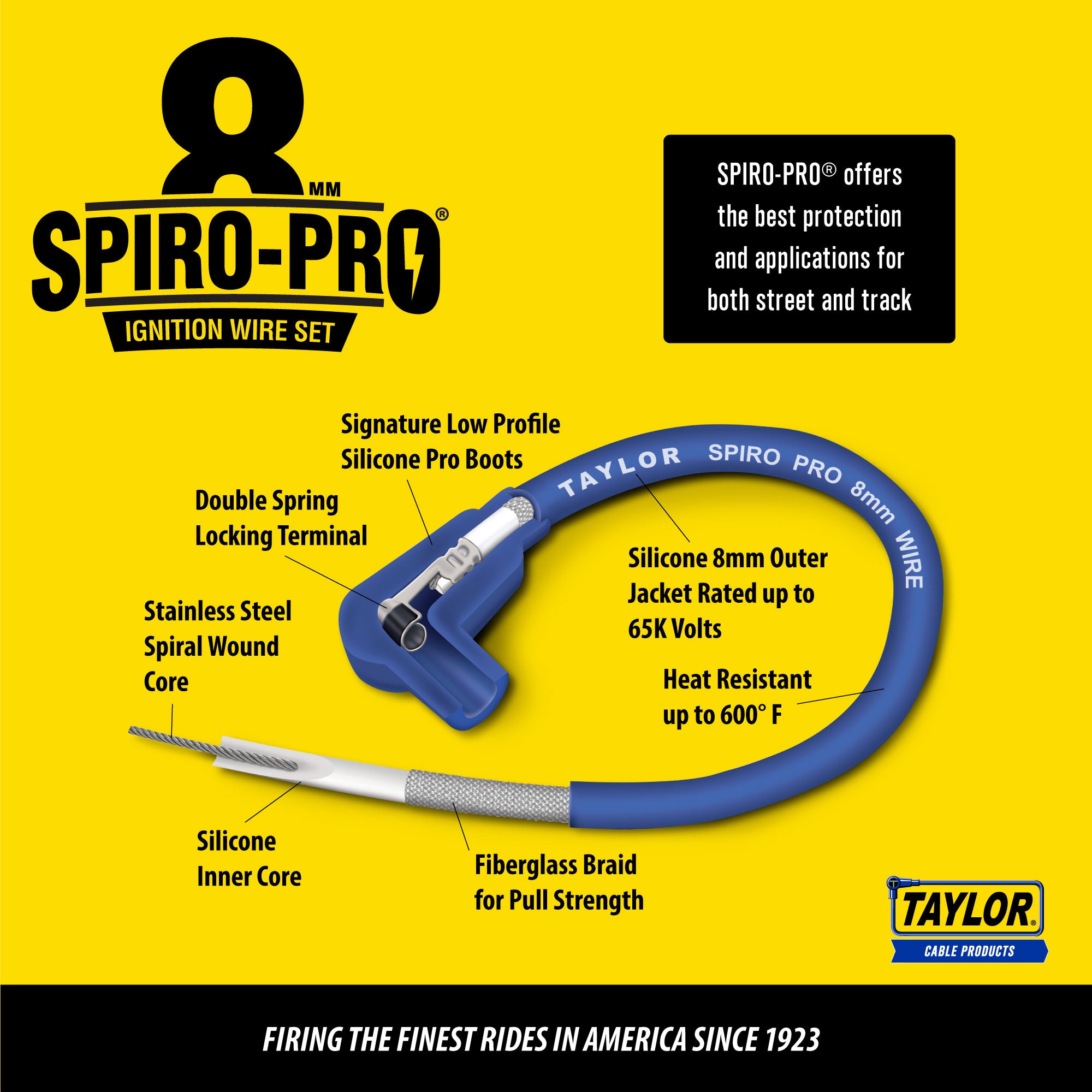

Features & Benefits

  • 350 ohms per foot
  • 8.0mm Outer Silicone Jacket
  • Silicone inner core provides added heat protection and superior flexibility throughout its lifetime
  • Highly conductive stainless steel spiral wound core
  • Superior RFI / EMI suppression for applications with CD or electronic ignitions, on board computers, stereos, or pit radios

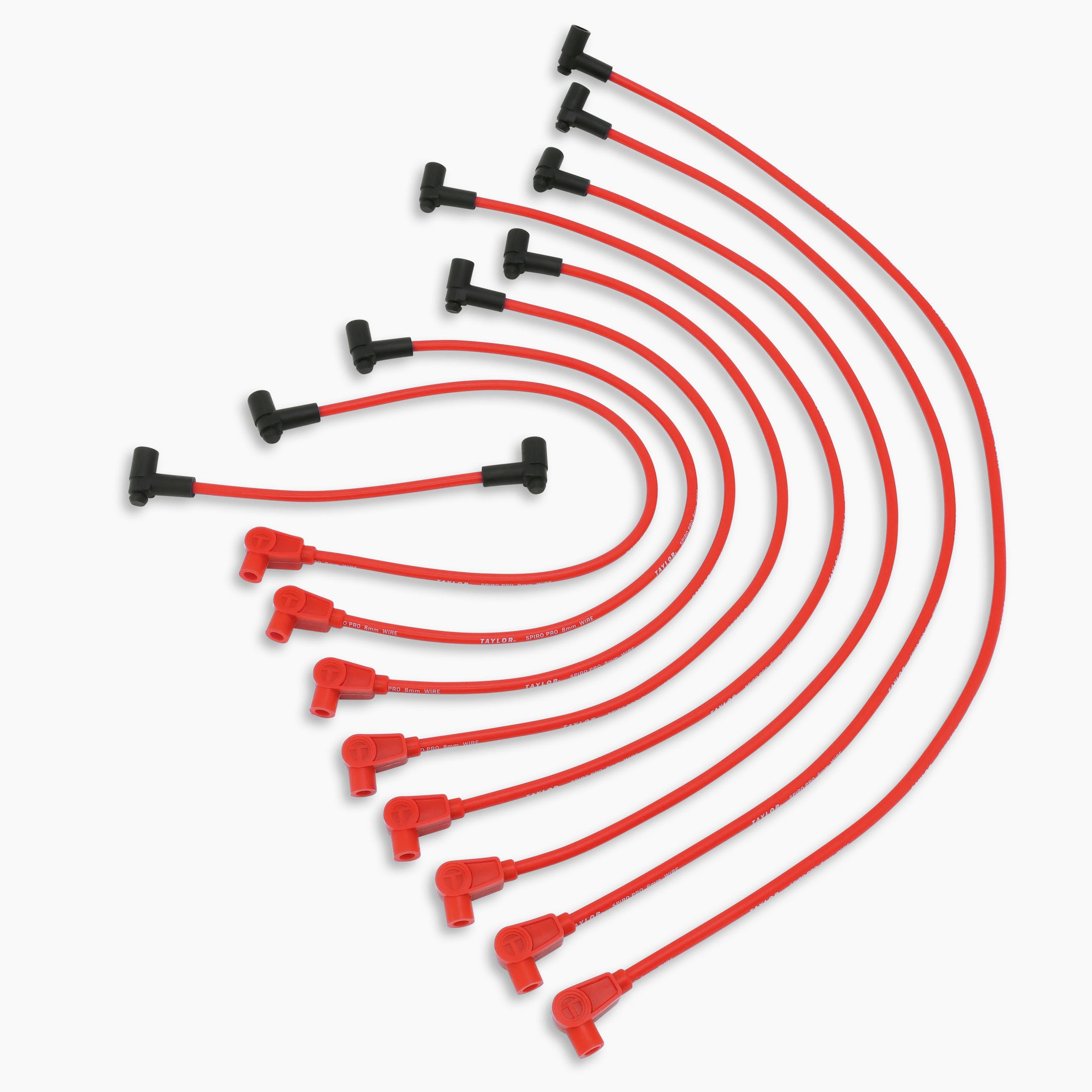

Race Fit Wires are engine specific rather than model specific applications where headers are being used. Sets are cut to exact length with boots and terminals on each end ready to install. Comes with an extra-long coil wire, one end complete, the other end ready to cut and install the correct boot for your choice of high-performance coil. 8.0mm Spiro Pro Ignition Wires are engineered to deliver superior performance with unsurpassed quality. They are the top choice amongst racers and enthusiasts with heat protection up to 600° F and 65,000 volts of dielectric strength. 8.0mm Spiro Pro wire sets offer superior heat protection across a broad range of applications for street and track.


For over 90 years, Taylor Cable Products have been the top choice of racers and enthusiasts for its value and high-performance features. Taylor Cable is an icon of quality and customer satisfaction in the automotive performance and racing markets. We are proud to have our Ignition Wire Sets firing some of the fastest race and street vehicles in the world.

Specifications

Wire Series Spiro Pro
Insulation Color Black
Resistance 350 ohm/ft
Outside Diameter 8 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 8 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Black
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Taylor Spiro Pro, ThunderVolt, StreetThunder and High Energy Spark Plug Wires - Lifetime

Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.
