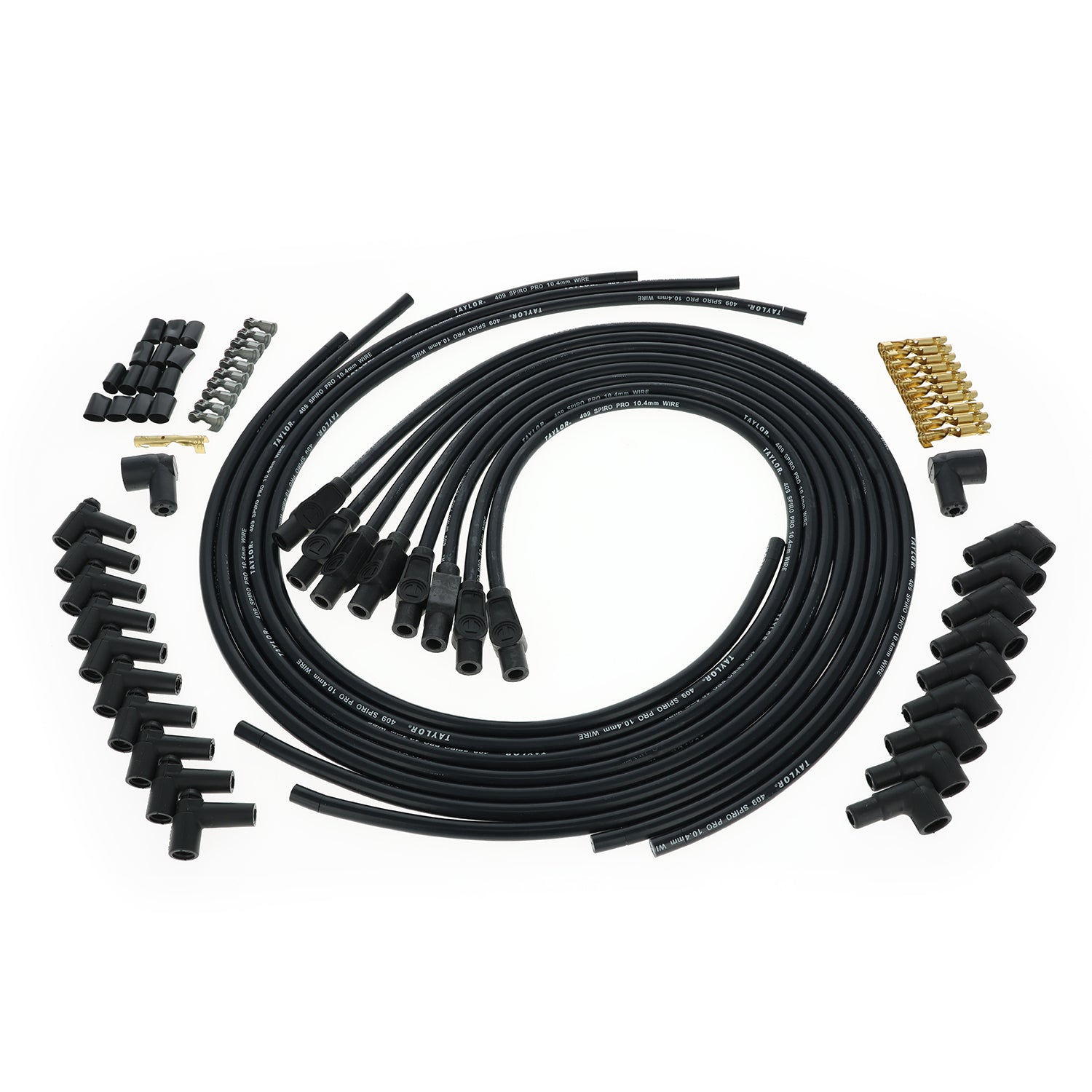

Universal 10.4mm 409 Series Spark Plug Wire Set (Available in 3 Colors)
Universal 10.4mm 409 Series Spark Plug Wire Set (Available in 3 Colors)
Features & Benefits
Features & Benefits
10.4mm 409 Series Ignition Wires provide continuous heat protection up to 600° F and 102,000 volts of dielectric strength.
- 10.4 mm Outer Silicone Jacket
- Rated up to 65K Volts
- Heat resistant to 600 Degrees
- Silicone inner core provides added heat protection and superior flexibility throughout its lifetime
- 350 ohms per foot
-

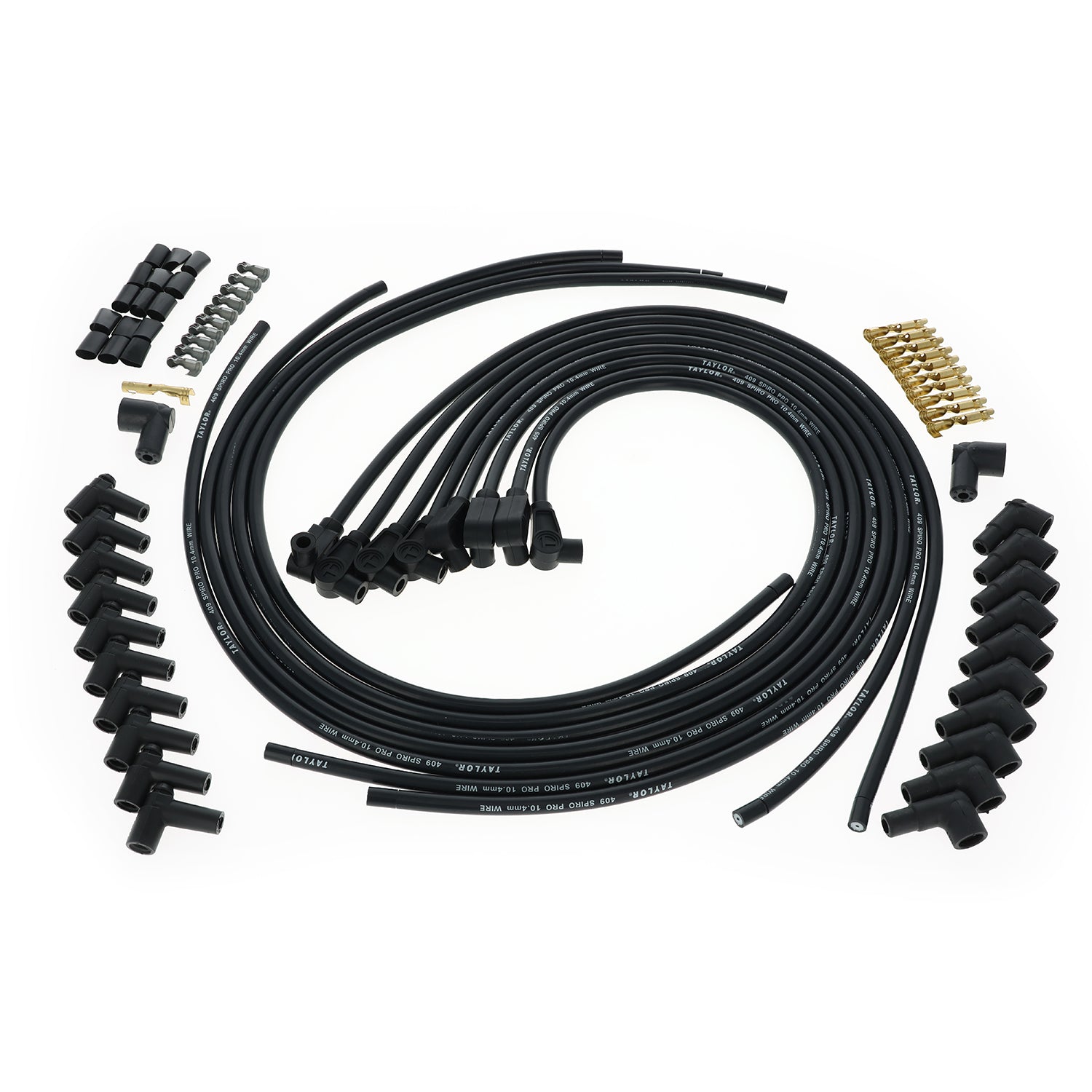

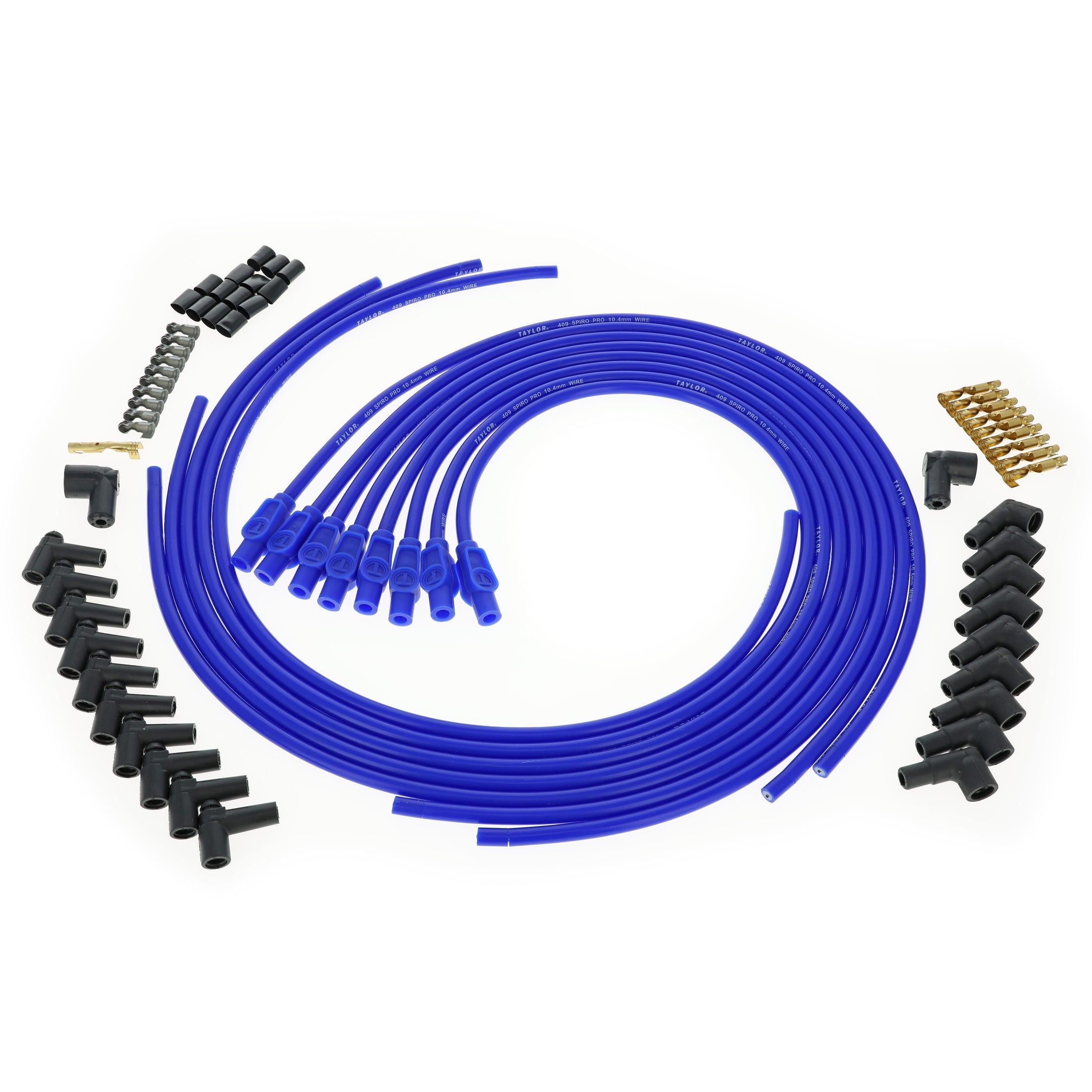

Available in Black, Red and Blue

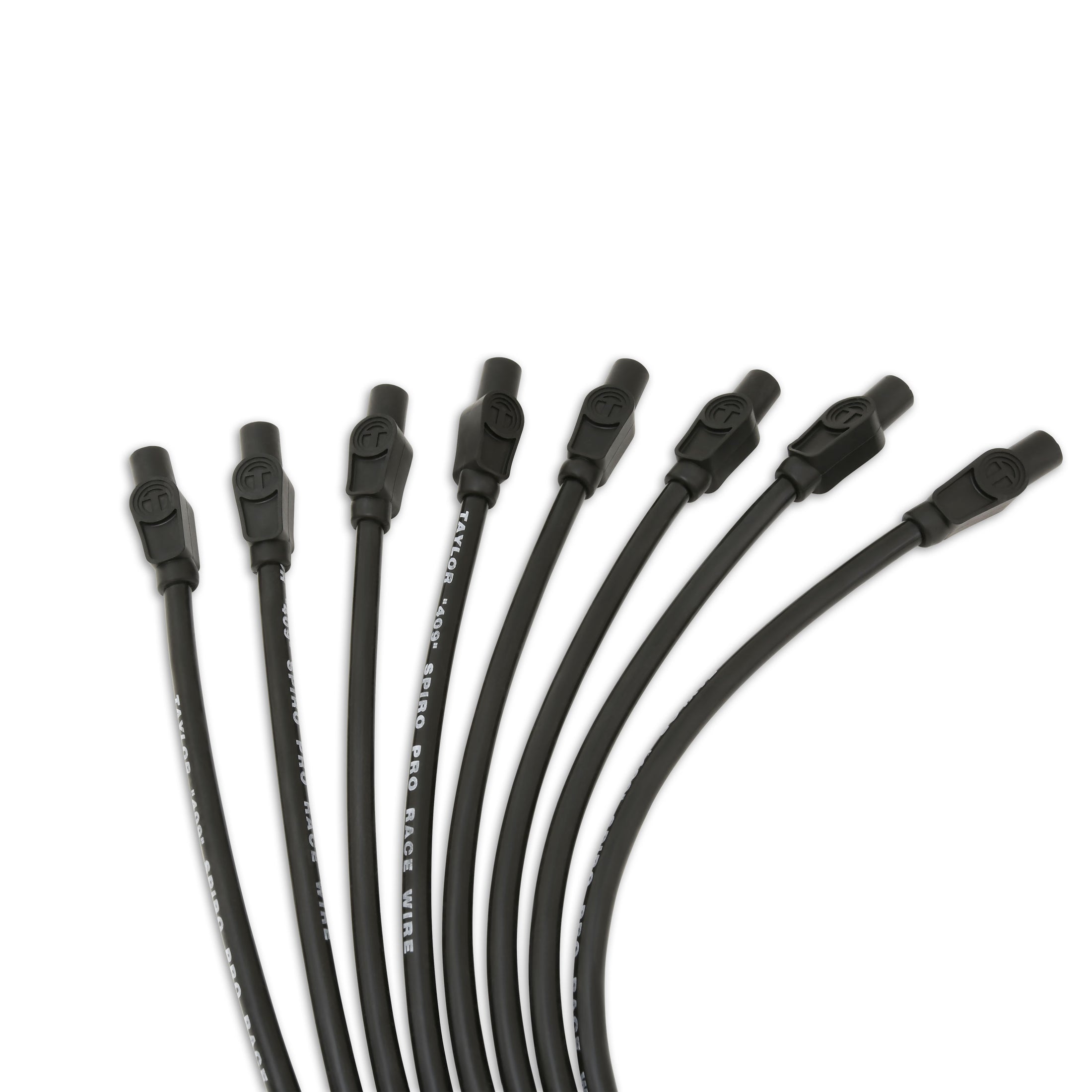

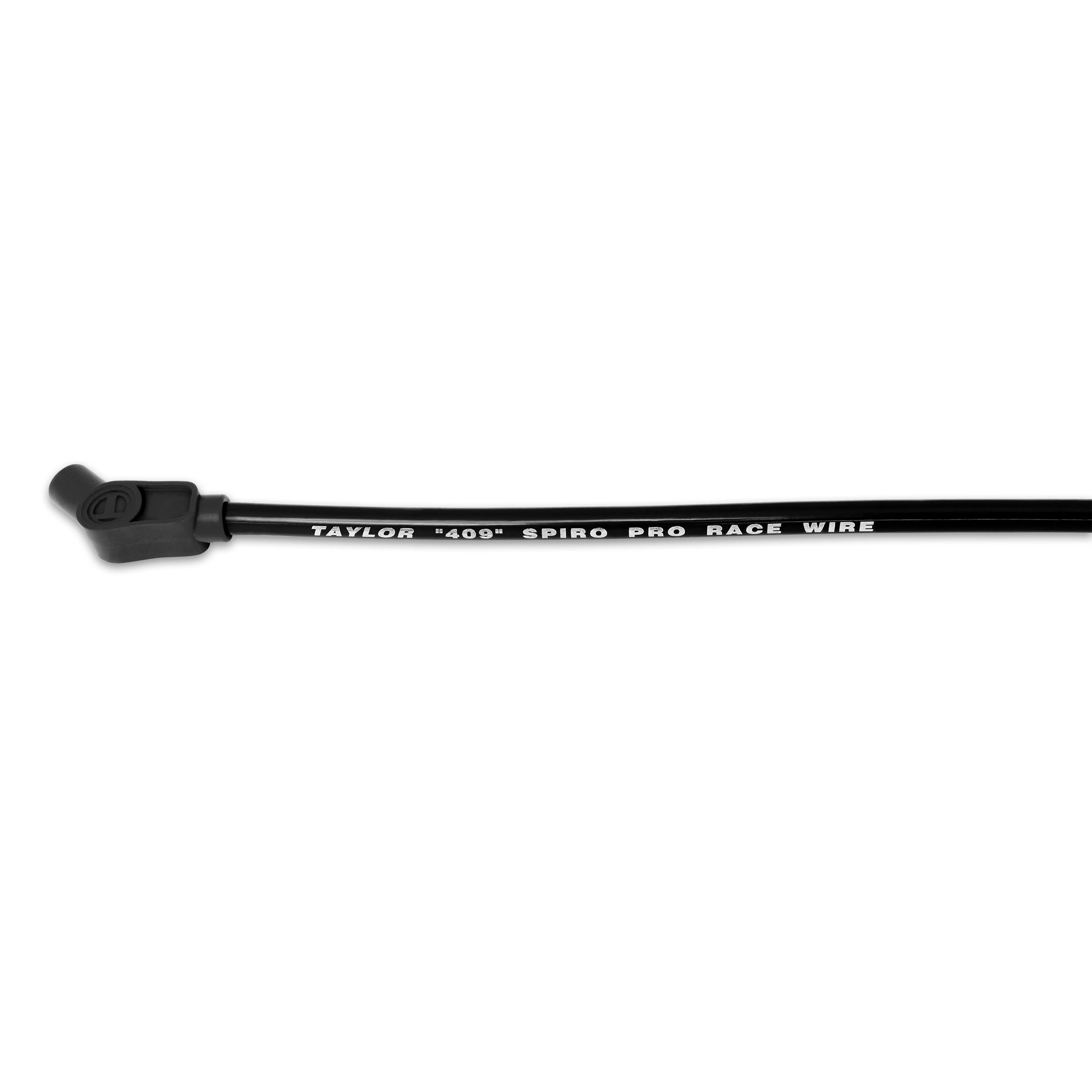

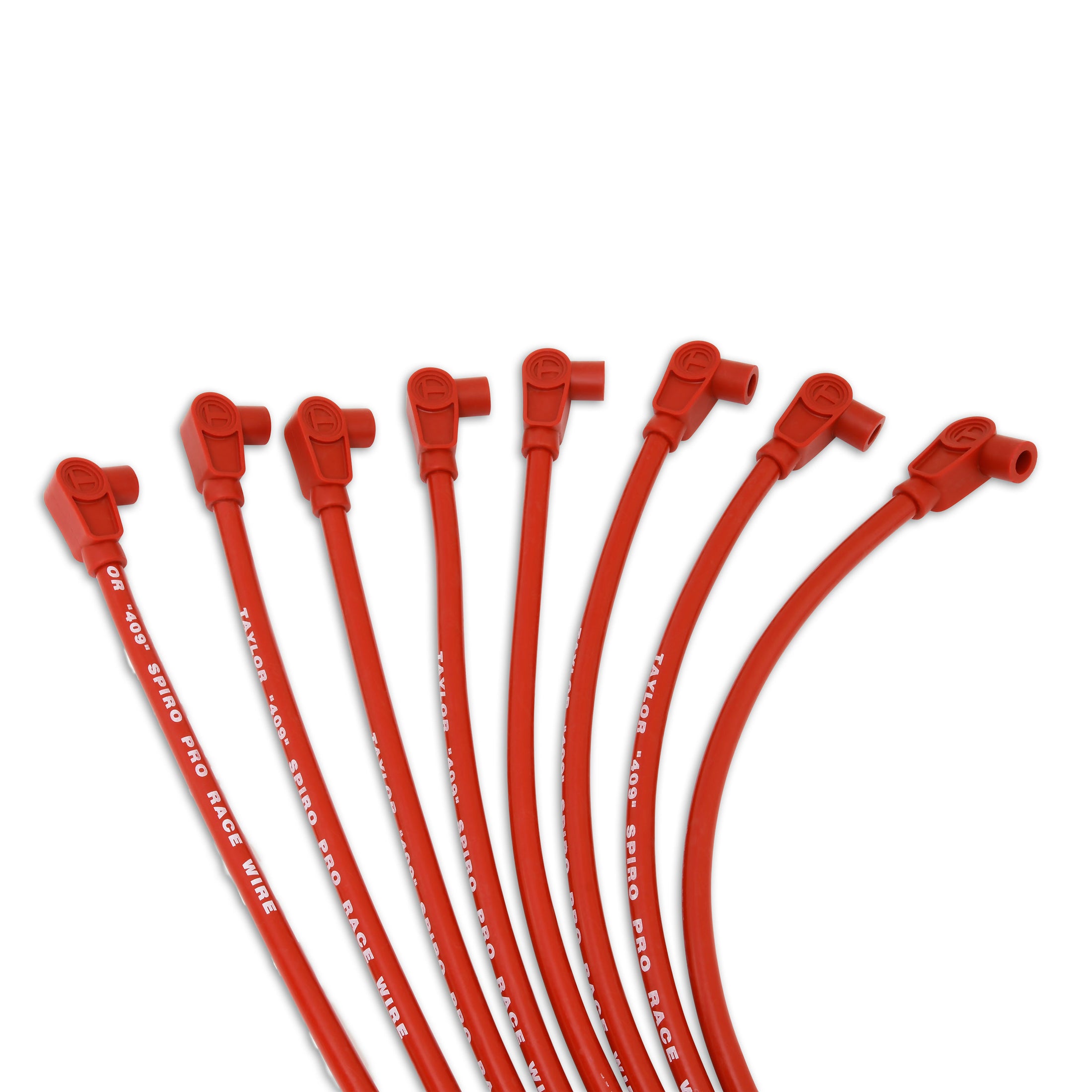

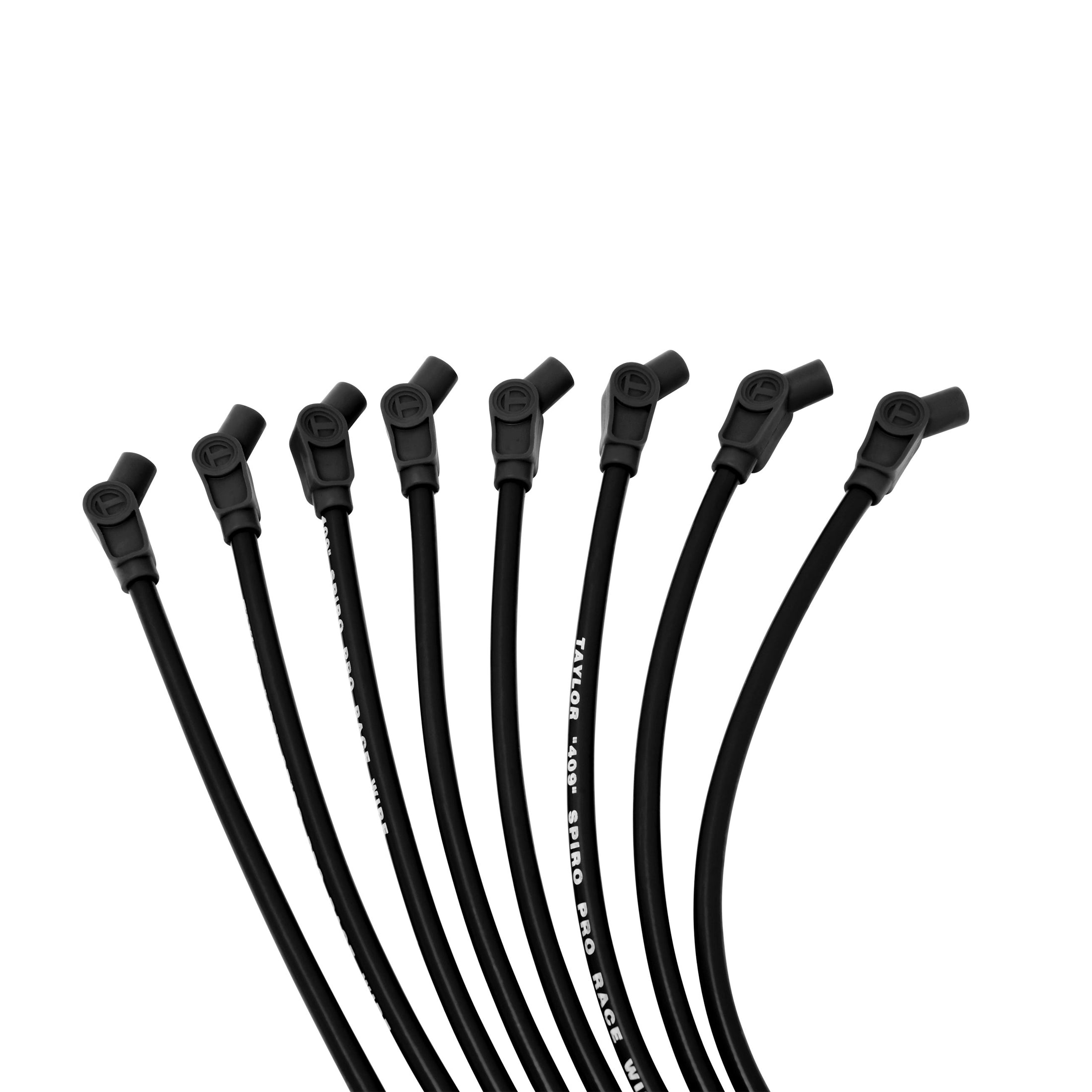

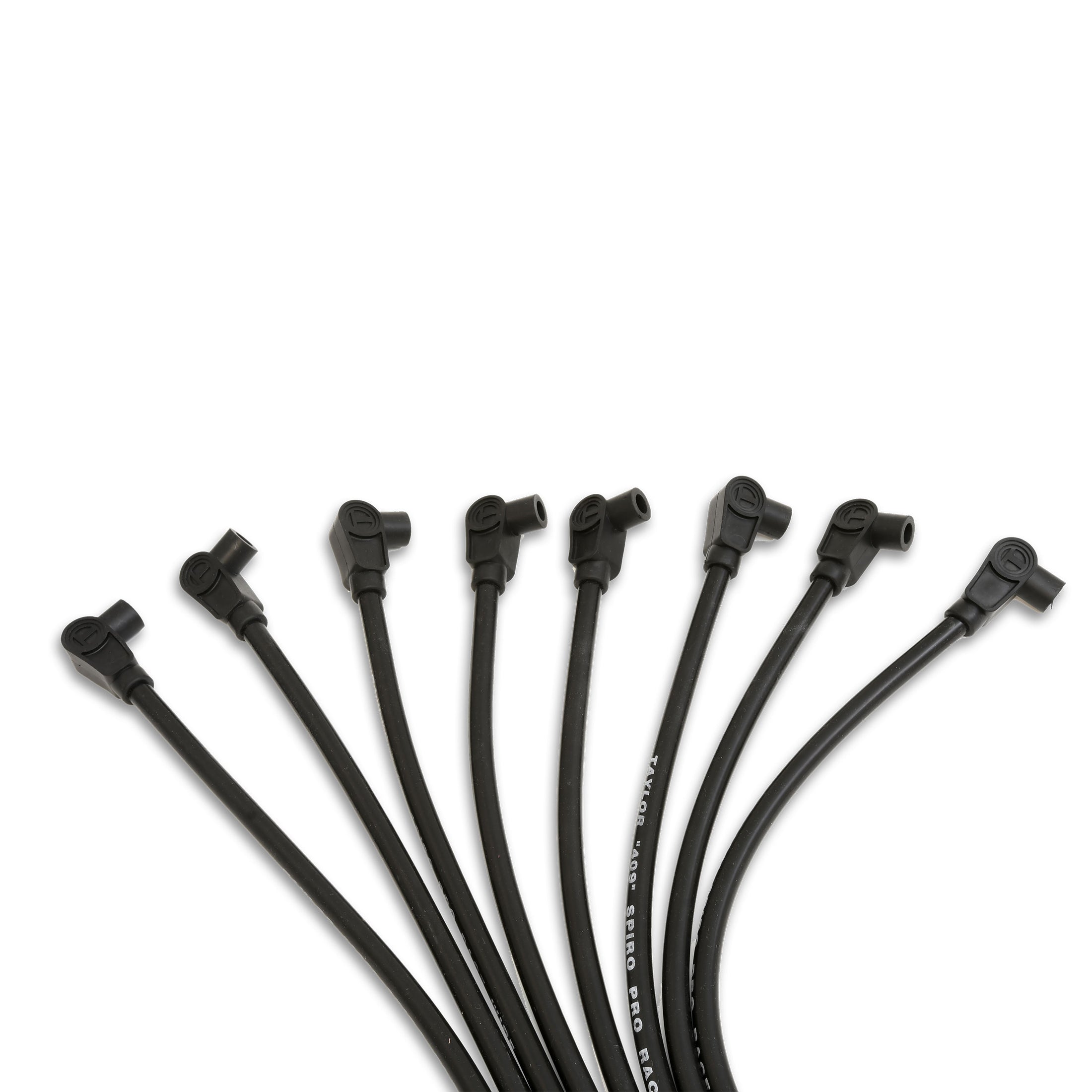

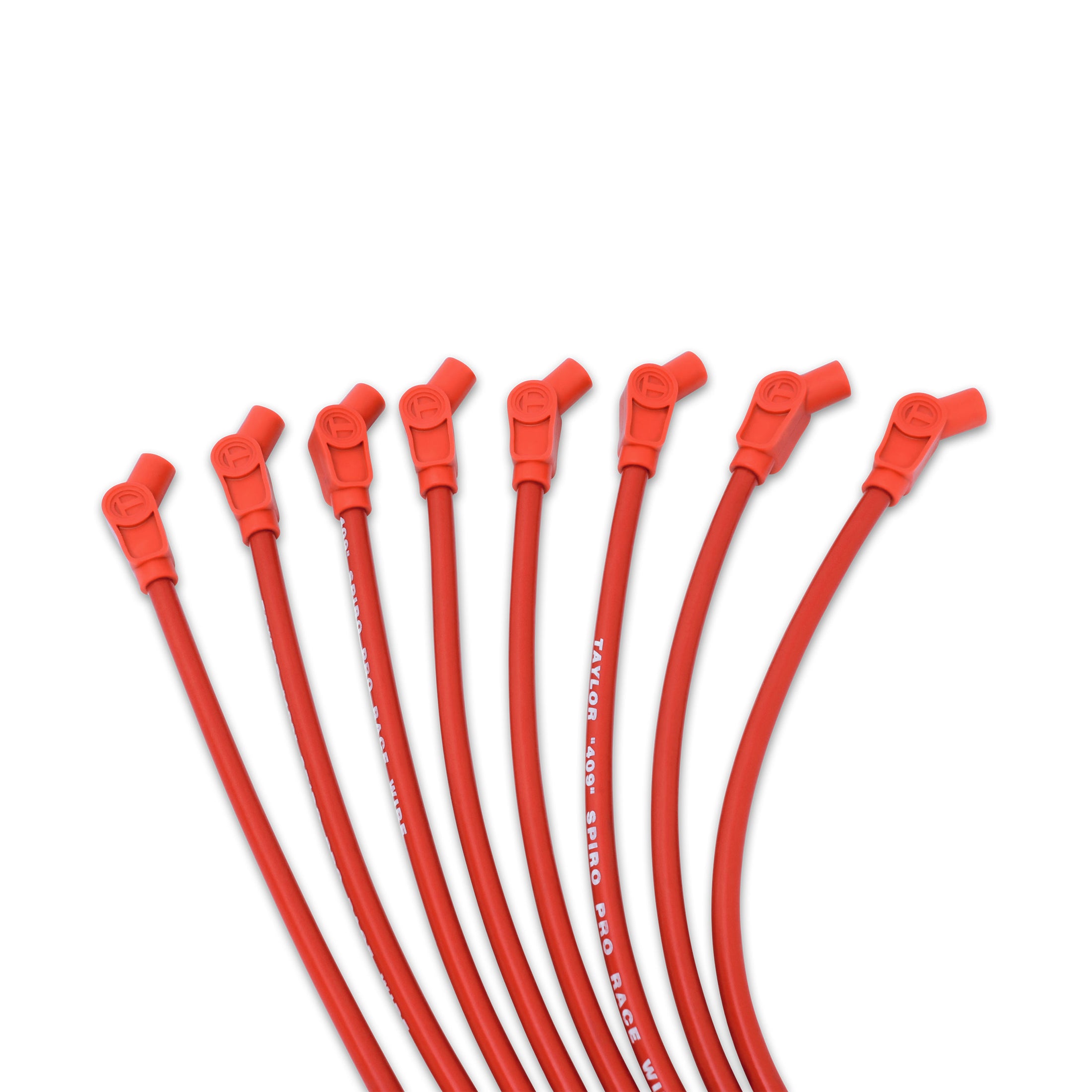

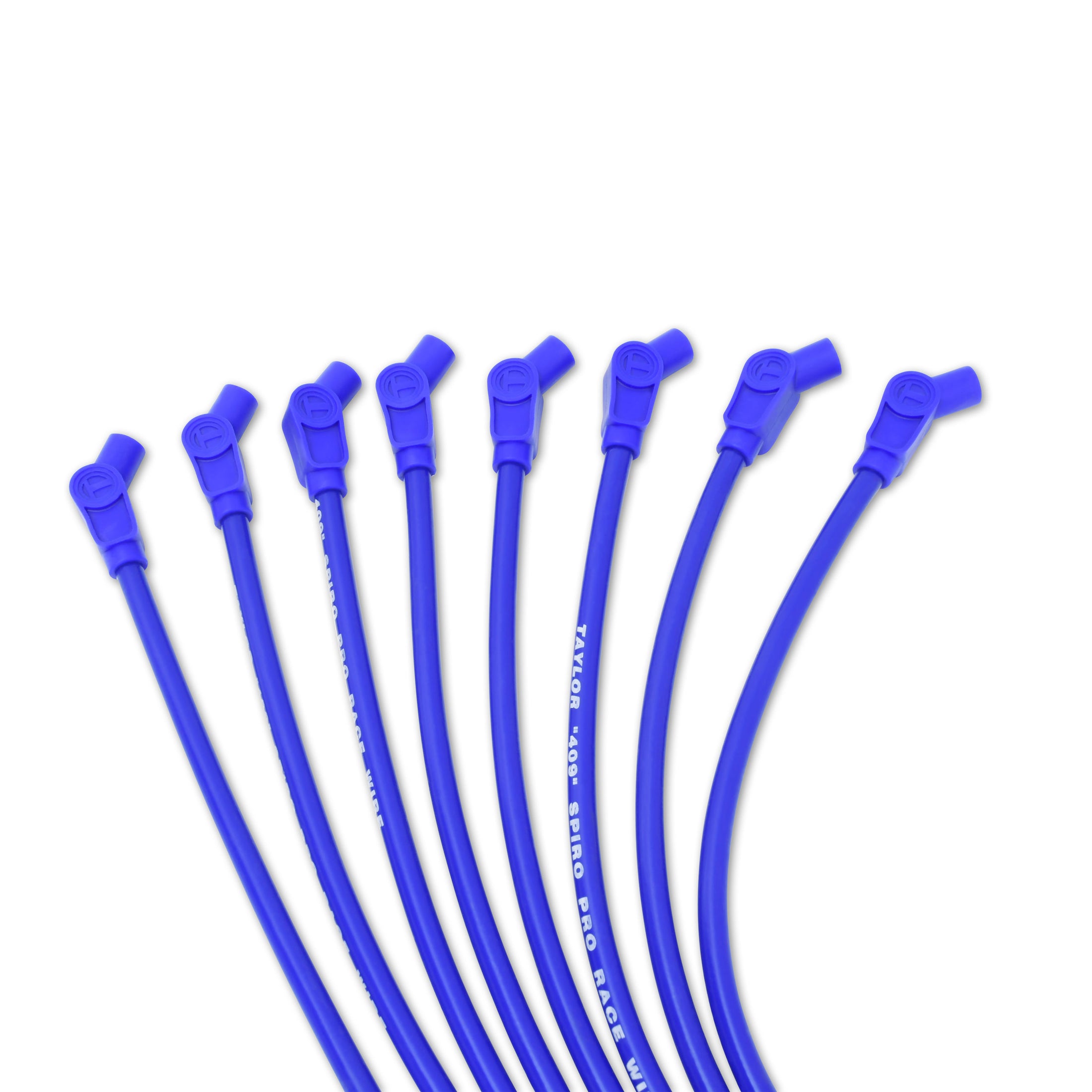

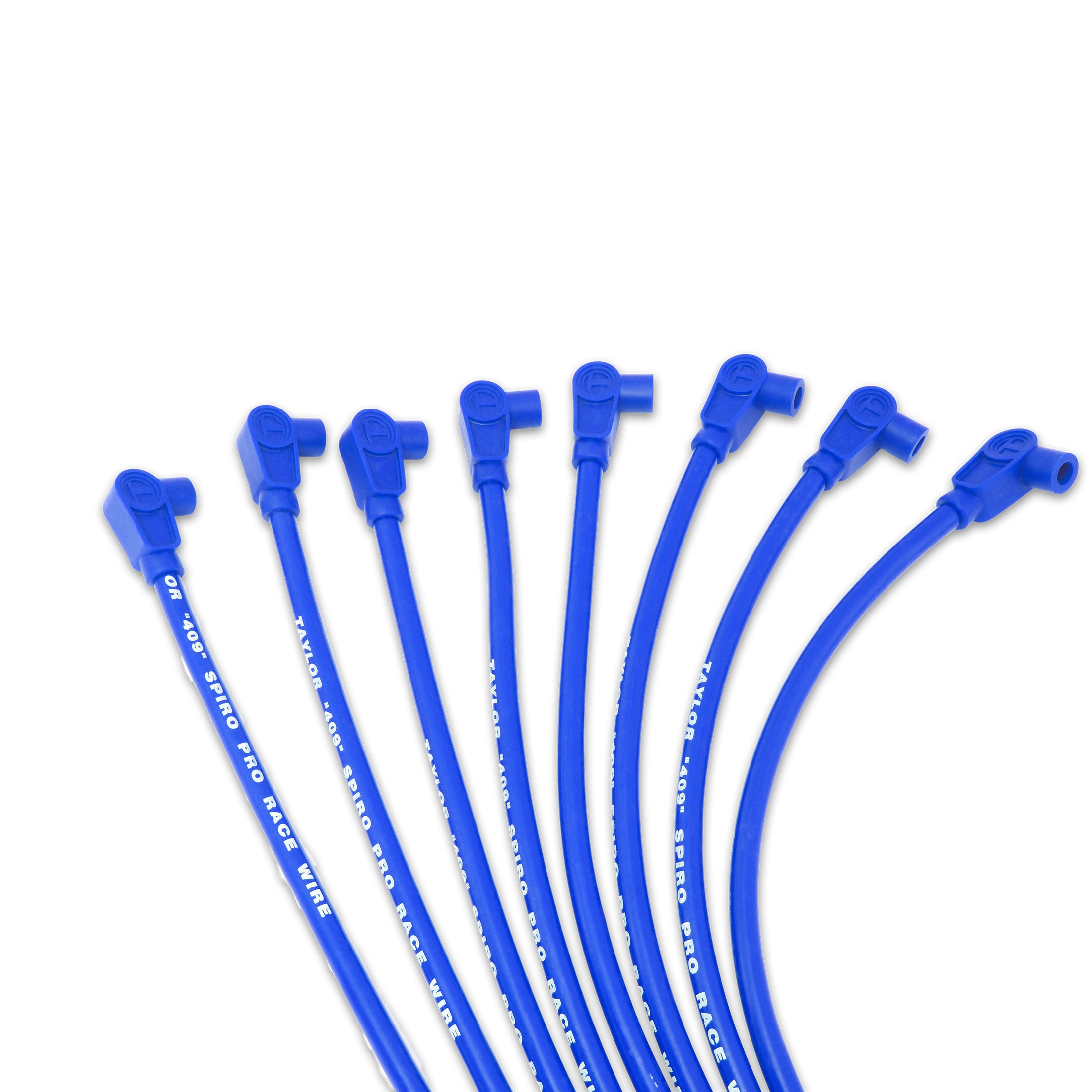

- Available in 90°, 135°, or 180° spark plug boot angles
- Spark Plug Wire Lengths (inches):

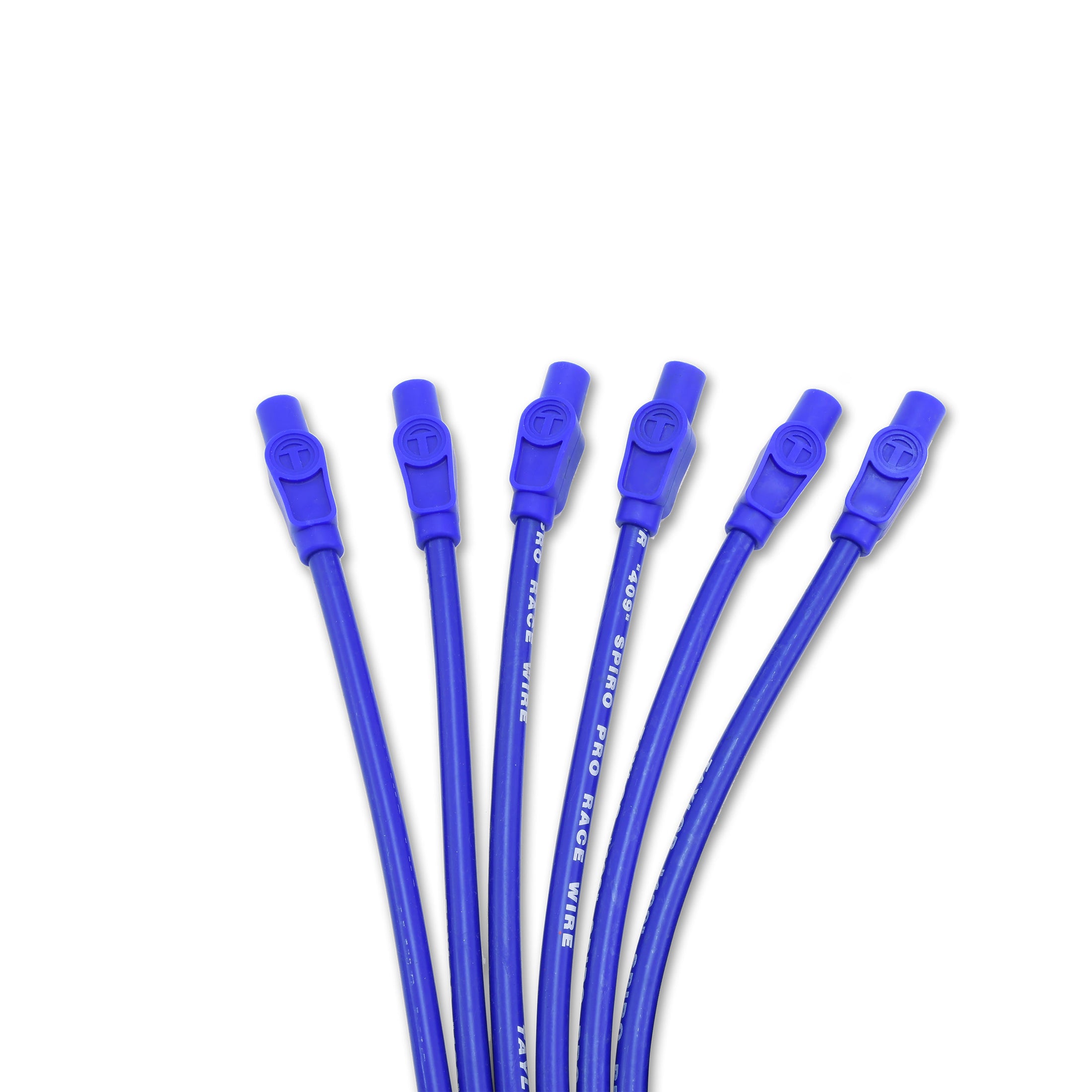

- 6 cylinder - 46, 44, 42, 30, 28, 28, coil 36

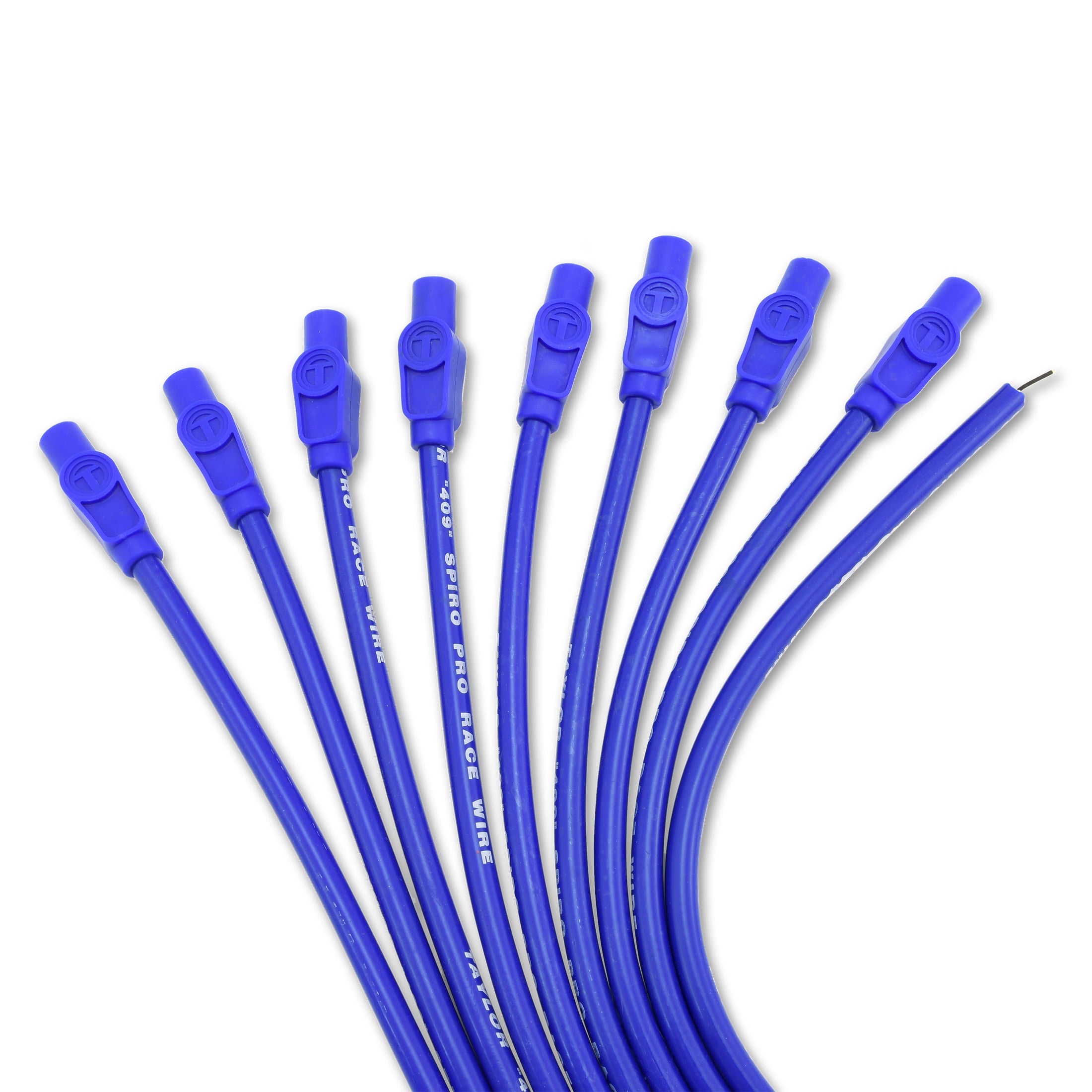

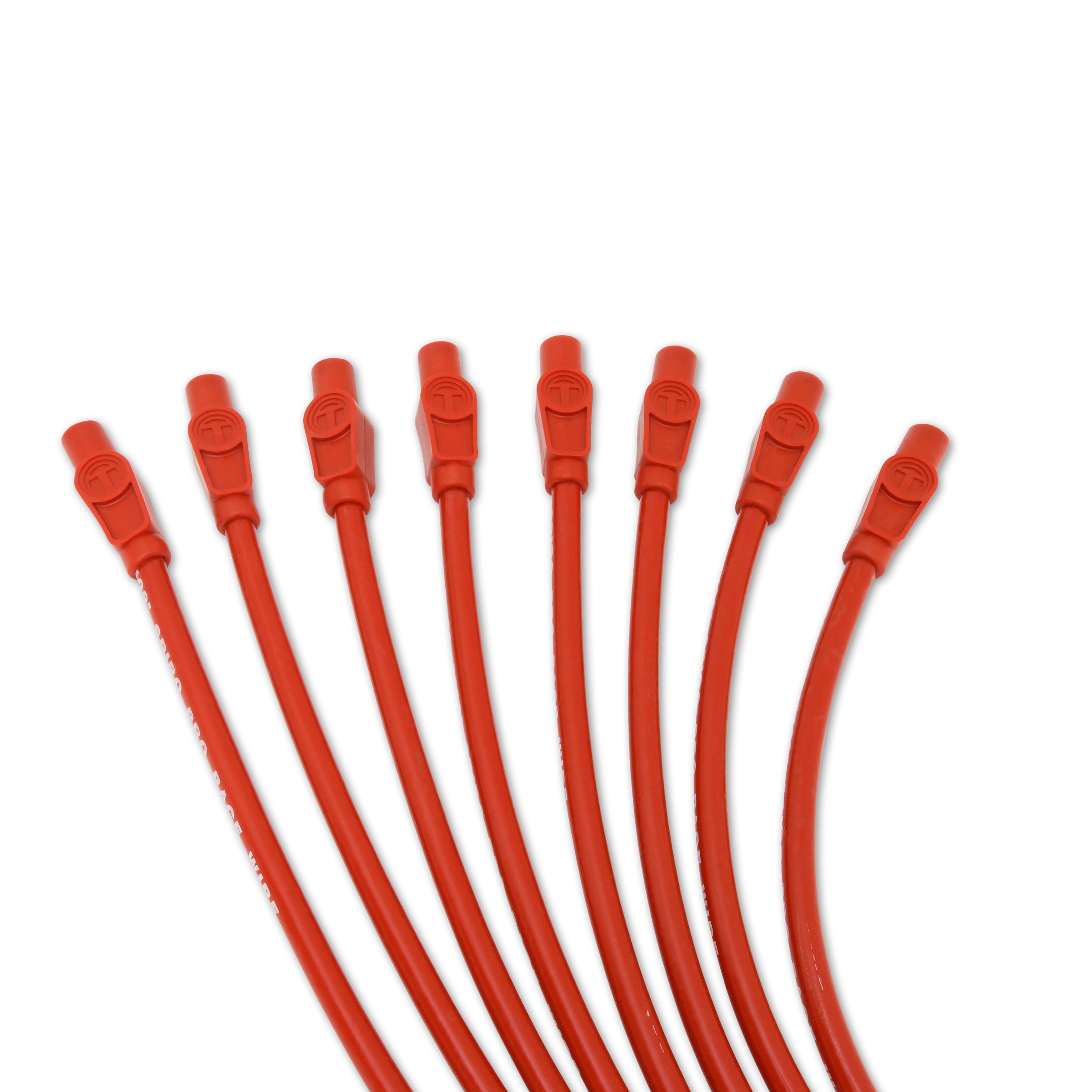

- 8 cylinder - 53, 53, 49, 49, 38, 38, 33, 33, coil 36
- Highly conductive helically wound core
- Superior RFI / EMI suppression for applications with CD or electronic ignitions, on board computers, stereos, or pit radios
- Taylor low profile Silicone Pro Boots
- Double spring lock spark plug terminals

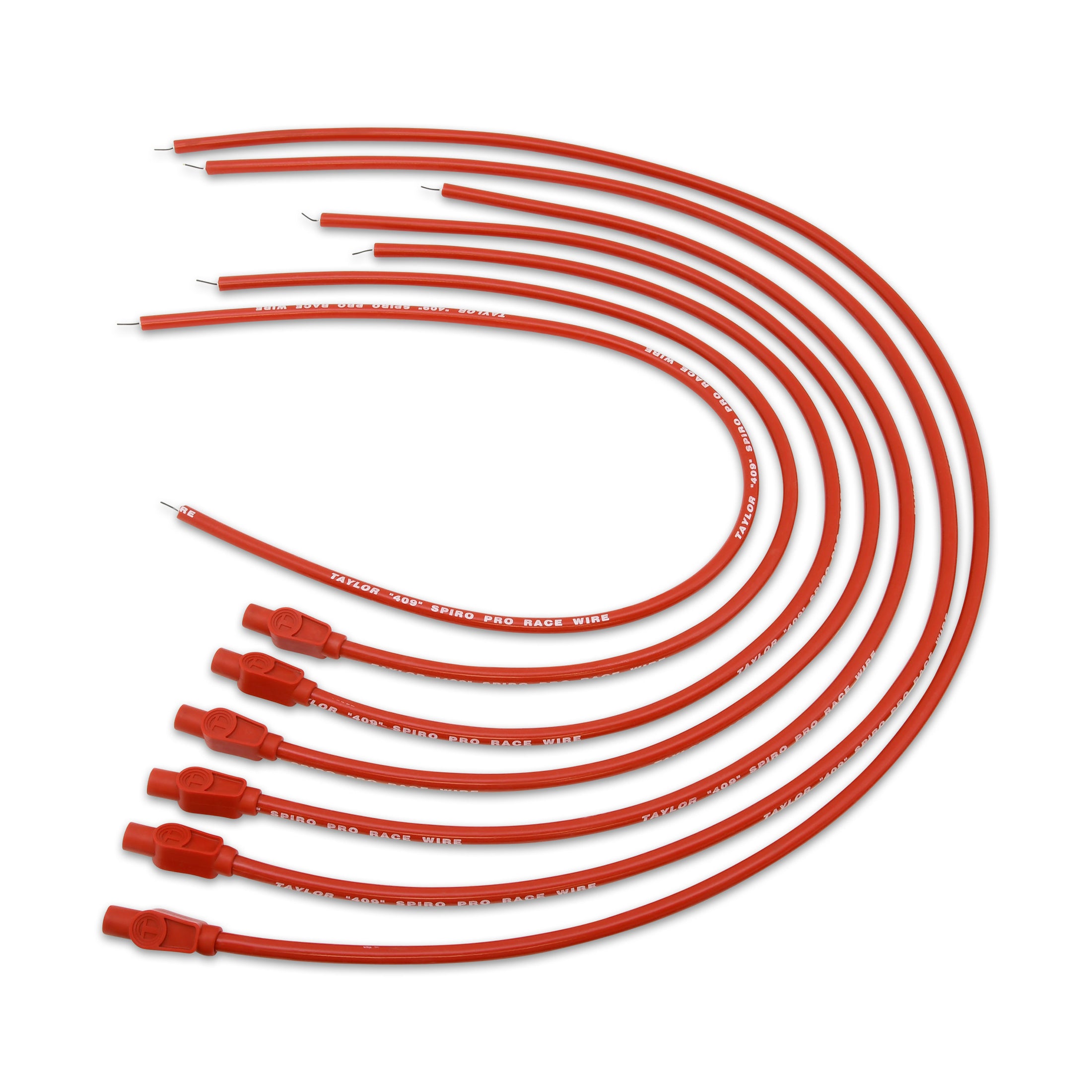

- Universal Fit sets and will require cutting to fit, terminating, and booting the distributor end
Specifications
Specifications
| Wire Series | 409 |
|---|---|
| Insulation Color | 6 Cylinder - Red and Blue 8 Cylinder - Black, Red, and Blue |
| Resistance | 350 ohm/ft |

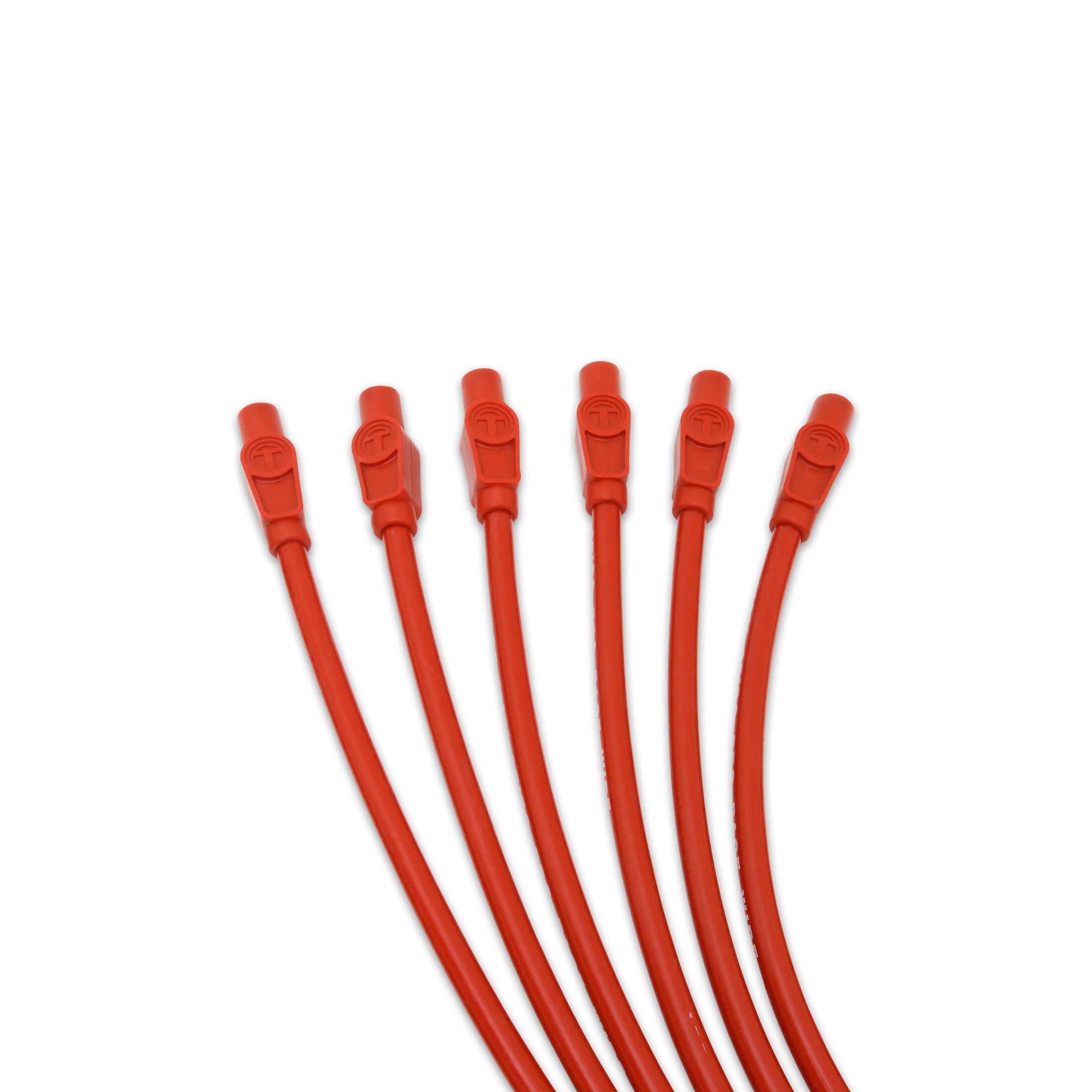

| Spark Plug End Boot Degree | 6 Cylinder - 180 Degrees 8 Cylinder - 90, 135, and 180 Degrees |
| Outside Diameter | 10.4 Millimeters |
| Noise Suppression Type | Yes |
| Insulation Outside Diameter | 10.4 Millimeters |
| Insulation Material | Silicone |
| Core Material | Stainless Steel Spirol Wound Suppression |
| Universal Or Specific Fit | Universal |
| Spark Plug Boot Material | Silicone |
| Spark Plug End Boot Color | 6 Cylinder - Red and Blue 8 Cylinder - Black, Red, and Blue |
| Distributor Coil End Boot Degree | 90 Degree |

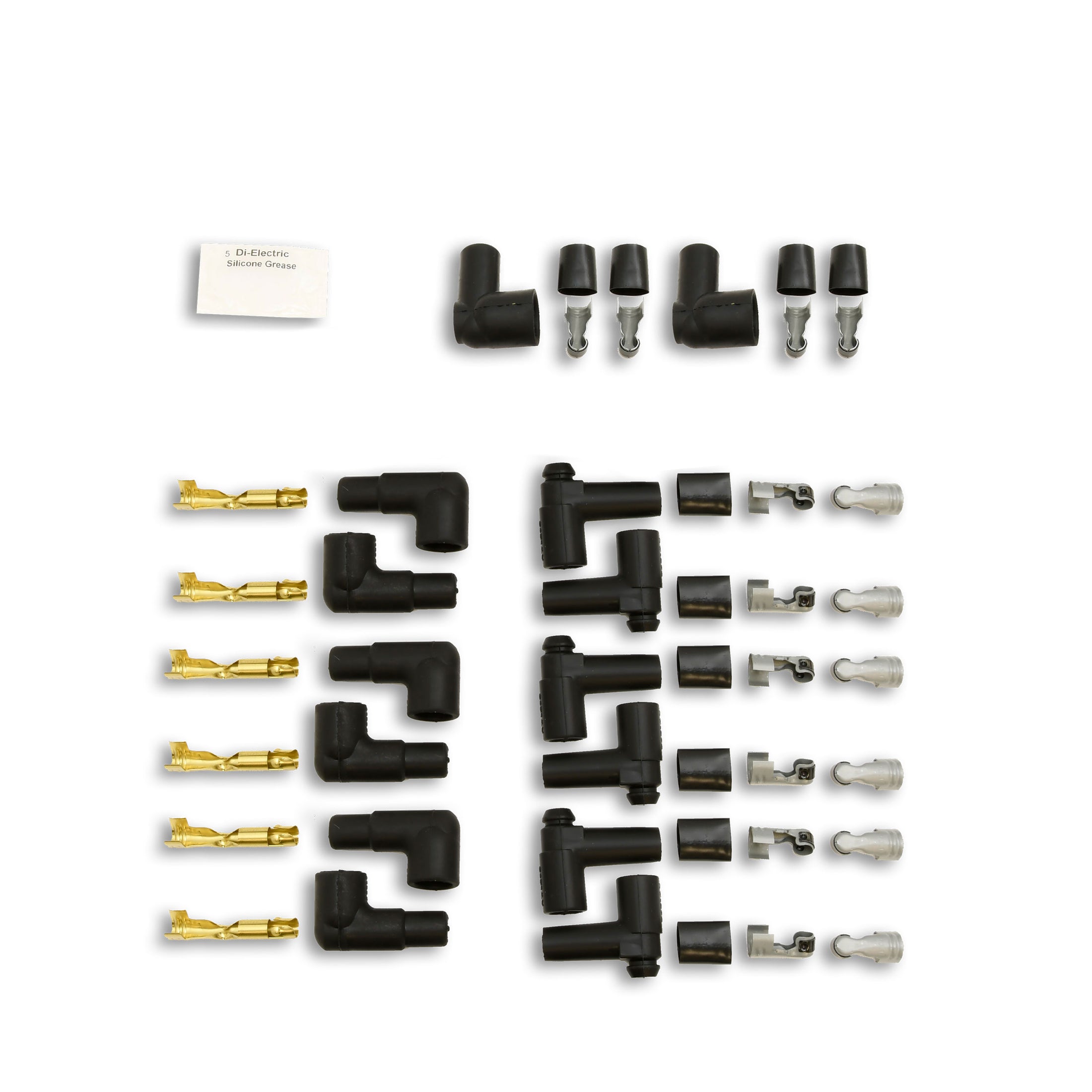

| Distributor Coil End Boot Type | Male/HEI and Female/Socket |
| Distributor Coil End Terminal Type | Male/HEI and Female/Socket |
| Grade Type | Performance |
| Wire Separators Included | No |
