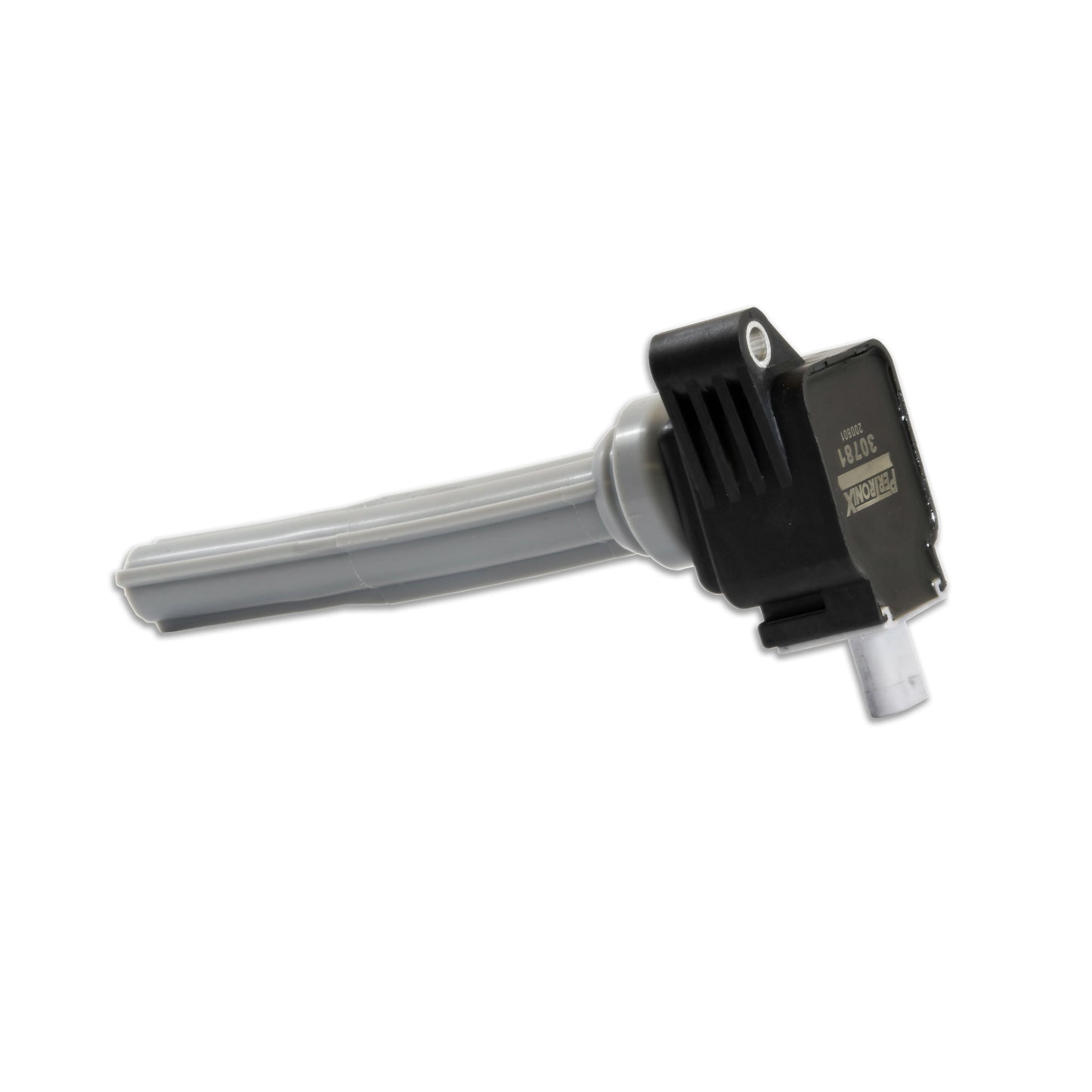

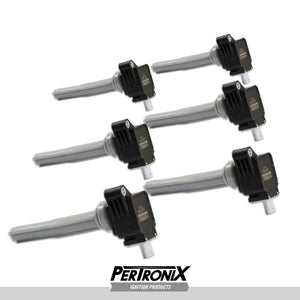

PerTronix Flame Thrower 30786 Coil Ford V6 2.7L EcoBoost, Set of 6

PerTronix Flame Thrower 30786 Coil Ford V6 2.7L EcoBoost, Set of 6

Part Number: 30786
Skip to product information

Features & Benefits

  • 30,000 Volts. Direct OEM replacement.
  • Optimized coil design yields at least 15% more energy available for the spark than the most common OEM coils.
  • Provides the spark energy throughout the RPM range and with no energy degradation up to 11,000 engine RPMs. Plated Copper terminals for added current conduction.
  • Moisture resistant construction ensures long life in harsh environments. High-temp boot sustains seal and form. Epoxy molded for shock and vibration resistance.
  • Limited 90 Day Warranty

Flame Thrower Coils feature an optimized coil design which increases the spark energy by 15% over OEM coils.


Late model Coil-on-Plug/Coil Near Plug series are optimized to improve the spark capabilities of late model ignition systems. Coils are epoxy molded to prevent premature failure from moisture or winding fatigue. Superchargers, turbo chargers, and nitrous all increase the demand on the ignition system. Whether it's a performance application with add-ons or an increase in power for the stock ignition, Flame Thrower coils won't disappoint.

Specifications

Maximum Voltage 30000
Primary Resistance 0.64 Ohms
Voltage 12
Coil Type Coil Pack
Color Black
Finish Matte
Ignition Type Computer Controlled
Coil Shape Same as Factory
Mounting Position Factory
Mounting Bracket Included Integrated
Mounting Hardware Included No
Ballast Resistor Included No
Coil Wire Attachment Coil-on-Plug
Coil Wire Included No
Mount Type Factory
Requires External Resistor No
Coil Internal Construction Epoxy
Primary Inductance 2
Secondary Resistance 4700 Ohms
Turns Ratio 85:1
Grade Type Stock Replacement

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Ignitor®, Ignitor II, Ignitor III – 30 months
  • Industrial Distributor – 90 days mechanical / 30 months Ignitor
  • Flame-Thrower® Spark Plug Wires – Lifetime
  • Flame-Thrower® HEI Distributors and Component Parts – Limited 1 Year
  • Flame-Thrower® Plug n’ Play Billet and Cast Distributors –1 Year Mechanical / 30 months module
  • Second Strike® & Digital Rev Limiter – Limited 1 Year Digital HP Ignition Box – Limited 1 Year
  • Digital HP Mobile Ignition Box – Limited 1 Year Contour Automotive Starters – Limited 1 Year
  • Compu-Fire VW Ignition and Rotating Electrical – Limited 1 Year
  • Flame-Thrower®/Compu-Fire® Coils – 90 days



Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

PerTronix Flame Thrower 30786 Coil Ford V6 2.7L EcoBoost, Set of 6

PerTronix Flame Thrower 30786 Coil Ford V6 2.7L EcoBoost, Set of 6

Part Number: 30786
Regular price $299.95
Sale price $299.95 Regular price

Part Number: 30786

$30 MAIL-IN REBATE Learn more

Does This part fit My vehicle?
View All Vehicle Applications
Product details
Notify me when this item is back in stock
Input your email address and we'll let you know when it's back Please enter a valid email address to be notified. Success! We will notify you when this product is back in stock!.

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955

Similar Products

Emissions code

EMISSIONS CODE

What does this emissions code mean?

View full details

Features & Benefits

  • 30,000 Volts. Direct OEM replacement.
  • Optimized coil design yields at least 15% more energy available for the spark than the most common OEM coils.
  • Provides the spark energy throughout the RPM range and with no energy degradation up to 11,000 engine RPMs. Plated Copper terminals for added current conduction.
  • Moisture resistant construction ensures long life in harsh environments. High-temp boot sustains seal and form. Epoxy molded for shock and vibration resistance.
  • Limited 90 Day Warranty

Flame Thrower Coils feature an optimized coil design which increases the spark energy by 15% over OEM coils.


Late model Coil-on-Plug/Coil Near Plug series are optimized to improve the spark capabilities of late model ignition systems. Coils are epoxy molded to prevent premature failure from moisture or winding fatigue. Superchargers, turbo chargers, and nitrous all increase the demand on the ignition system. Whether it's a performance application with add-ons or an increase in power for the stock ignition, Flame Thrower coils won't disappoint.

Specifications

Maximum Voltage 30000
Primary Resistance 0.64 Ohms
Voltage 12
Coil Type Coil Pack
Color Black
Finish Matte
Ignition Type Computer Controlled
Coil Shape Same as Factory
Mounting Position Factory
Mounting Bracket Included Integrated
Mounting Hardware Included No
Ballast Resistor Included No
Coil Wire Attachment Coil-on-Plug
Coil Wire Included No
Mount Type Factory
Requires External Resistor No
Coil Internal Construction Epoxy
Primary Inductance 2
Secondary Resistance 4700 Ohms
Turns Ratio 85:1
Grade Type Stock Replacement

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Ignitor®, Ignitor II, Ignitor III – 30 months
  • Industrial Distributor – 90 days mechanical / 30 months Ignitor
  • Flame-Thrower® Spark Plug Wires – Lifetime
  • Flame-Thrower® HEI Distributors and Component Parts – Limited 1 Year
  • Flame-Thrower® Plug n’ Play Billet and Cast Distributors –1 Year Mechanical / 30 months module
  • Second Strike® & Digital Rev Limiter – Limited 1 Year Digital HP Ignition Box – Limited 1 Year
  • Digital HP Mobile Ignition Box – Limited 1 Year Contour Automotive Starters – Limited 1 Year
  • Compu-Fire VW Ignition and Rotating Electrical – Limited 1 Year
  • Flame-Thrower®/Compu-Fire® Coils – 90 days



Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

Applications

Year / Make / Model 2017-2019 Ford Fusion Sport
Engine Type V6
Engine Size(s) Liters: 2.7
Notes

Year / Make / Model 2015-2018 Ford Edge Sport
Engine Type V6
Engine Size(s) Liters: 2.7
Notes

Year / Make / Model 2015-2017 Ford F-150 XL
Engine Type V6
Engine Size(s) Liters: 2.7
Notes

Year / Make / Model 2015-2017 Ford F-150 XLT
Engine Type V6
Engine Size(s) Liters: 2.7
Notes

Year / Make / Model 2015-2017 Ford F-150 Lariat
Engine Type V6
Engine Size(s) Liters: 2.7
Notes
