PerTronix 7LU-143A  Ignitor III Adaptive Dwell Control Multiple Spark with Digital Rev Limiter Lucas 4 cyl
7LU-143A

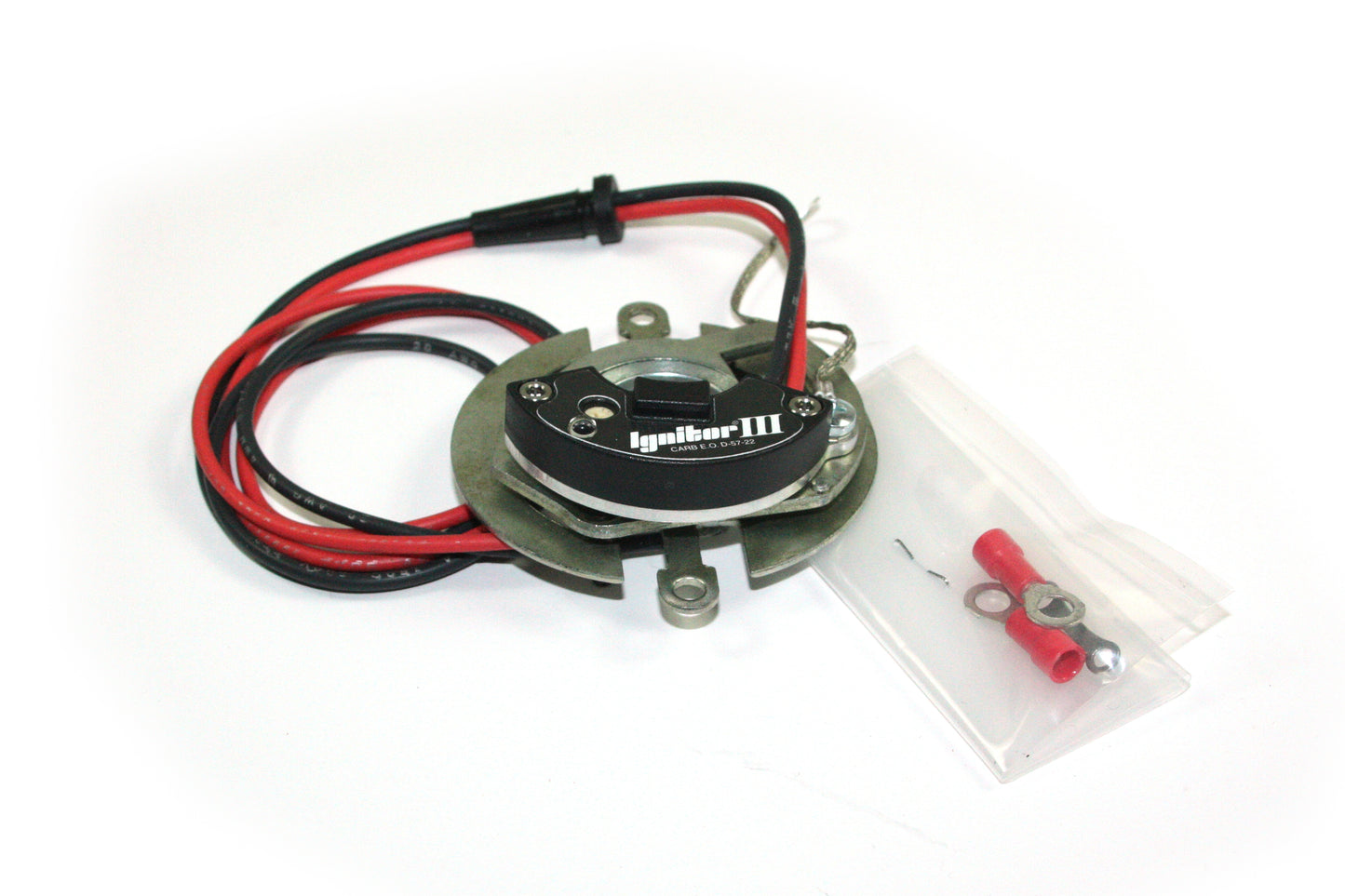

PerTronix 7LU-143A Ignitor III Adaptive Dwell Control Multiple Spark with Digital Rev Limiter Lucas 4 cyl

Part Number: 7LU-143A
UPC: 694342551469

$157.64
+ -
1

Emissions Code

Continue reading

  • Additional info
  • Download Instruction Manual

Additional info

Highlights:

  • PerTronix 7LU-143A Ignitor III Adaptive Dwell Control Multiple Spark with Digital Rev Limiter Lucas 4 cyl
  • Our all new Ignitor III ignition modules are designed for the serious performance enthusiast who demands serious power. You have seen the performance increases the Ignitor and Ignitor II series of electronic ignitions have brought. Now get ready for more... 5 times more spark energy than points systems. Ignitor III modules provide ignition box performance... without the "box"! For the maximum Ignitor III benefit, select one of our Flame-Thrower III or HC ignition coils from the coil section of this catalog.

    FEA TUR ES
    • Multiple sparks thru the entire RPM range.
    • Integrated digital REV limiter with LED feedback for precise RPM setting.
    • Memory safe function stores settings eliminating unintended changes to Rev limit.
    • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.
    • Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil performance and module reliability.
    • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay.
    • Senses startup and increases energy for quicker, easier starting.
    • Thermal clad surface mount construction for superior reliability.
    • Built-in reverse polarity and over current protection shuts down the system, preventing component damage.
    • Not compatible with CD or Multi-Spark boxes.
    • Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-22)
    • Guaranteed for 30 months... We Stand Behind It!

Additional Information:

Our all new Ignitor III ignition modules are designed for the serious performance enthusiast who demands serious power. You have seen the performance increases the Ignitor and Ignitor II series of electronic ignitions have brought. Now get ready for more... 5 times more spark energy than points systems. Ignitor III modules provide ignition box performance... without the "box"! For the maximum Ignitor III benefit, select one of our Flame-Thrower III or HC ignition coils from the coil section of this catalog.

Download Instruction Manual

Instruction Manual
Instruction Manual

Download PDF
