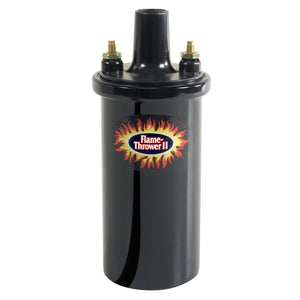

PerTronix 45011 Flame-Thrower II Coil 45,000 Volt 0.6 ohm Black

PerTronix 45011 Flame-Thrower II Coil 45,000 Volt 0.6 ohm Black

Part Number: 45011
Skip to product information

Features & Benefits

  • 45,000 volts.
  • Available chrome plated or black for that "stock look".
  • For use with inductive or CD ignition systems.
  • Low 0.6 Ohm primary resistance.
  • Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)


Flame Thrower II Canister Coils feature a very low resistance which make the the ideal coil for Ignitor II Electronic Ignition Conversion Kit as well as many other high performance ignitions. Low resistance, higher voltage enables you to run larger spark plug gaps for added power and improved fuel economy.


The Flame-Thrower canister style coil has been engineered to complement our Ignitor Electronic Ignition Conversion Kits and Plug n’ Play Distributors. Choose from the Flame-Thrower, Flame-Thrower II, and the Flame-Thrower III depending upon system voltage and resistance. Oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in off-road vehicles and boats.

Specifications

Maximum Voltage 45000
Primary Resistance 0.6 Ohms
Voltage 12
Coil Type Remote Mount Canister
Color Black
Finish Semi-Gloss
Ignition Type Electronic
Coil Shape Round
Maximum Diameter 2.15 Inches
Overall Height 6 Inches
Mounting Position Vertical
Mounting Bracket Included No
Mounting Hardware Included No
Ballast Resistor Included No
Coil Wire Attachment Female/Socket
Coil Wire Included No
Mount Type Circular Bracket
Requires External Resistor No

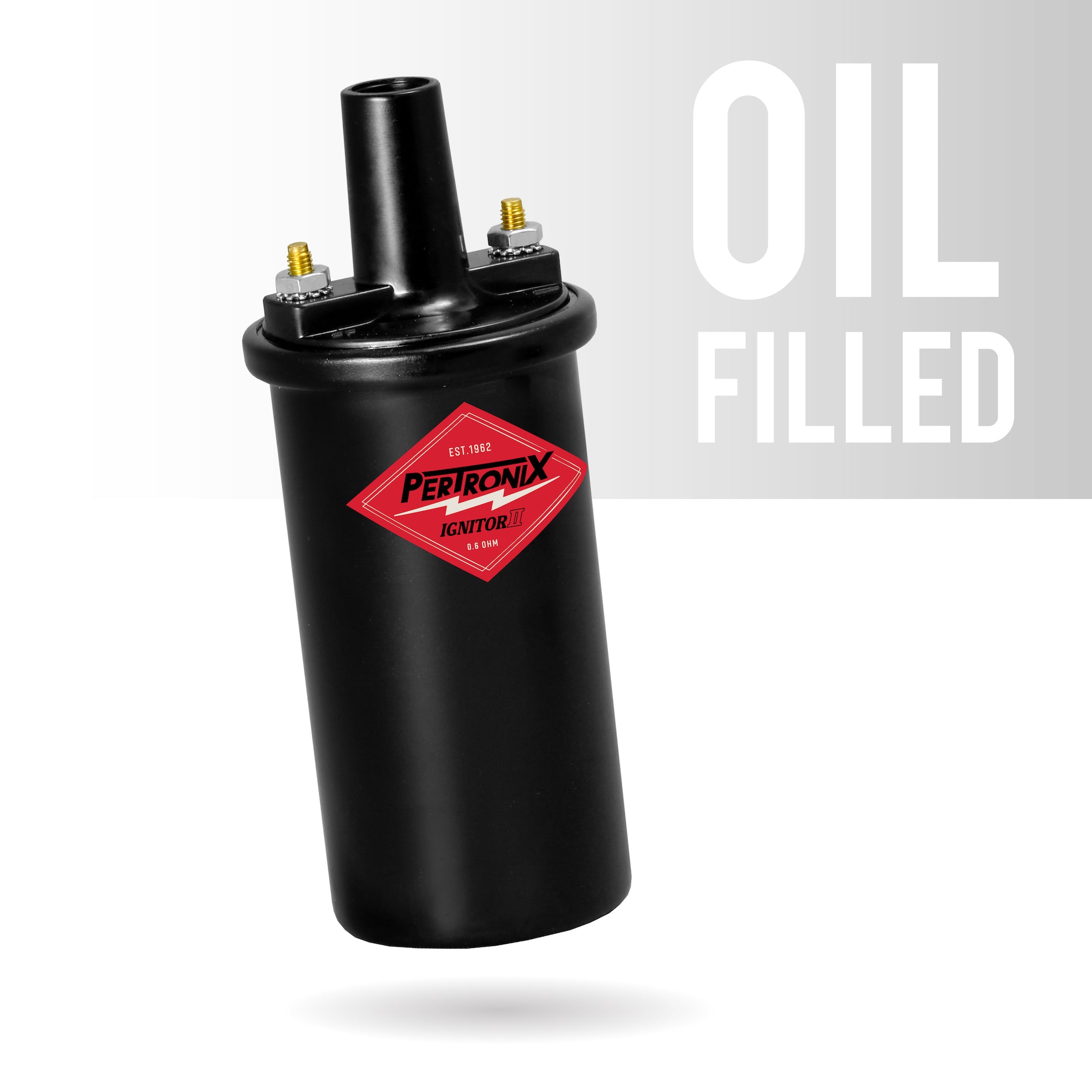

Coil Internal Construction Oil-Filled
Primary Inductance 6.25
Secondary Resistance 9000 Ohms
Turns Ratio 100:1
Grade Type Performance

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Ignitor®, Ignitor II, Ignitor III – 30 months
  • Industrial Distributor – 90 days mechanical / 30 months Ignitor
  • Flame-Thrower® Spark Plug Wires – Lifetime
  • Flame-Thrower® HEI Distributors and Component Parts – Limited 1 Year
  • Flame-Thrower® Plug n’ Play Billet and Cast Distributors –1 Year Mechanical / 30 months module
  • Second Strike® & Digital Rev Limiter – Limited 1 Year Digital HP Ignition Box – Limited 1 Year
  • Digital HP Mobile Ignition Box – Limited 1 Year Contour Automotive Starters – Limited 1 Year
  • Compu-Fire VW Ignition and Rotating Electrical – Limited 1 Year
  • Flame-Thrower®/Compu-Fire® Coils – 90 days



Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

PerTronix 45011 Flame-Thrower II Coil 45,000 Volt 0.6 ohm Black

PerTronix 45011 Flame-Thrower II Coil 45,000 Volt 0.6 ohm Black

Part Number: 45011
Regular price $59.45
Sale price $59.45 Regular price

Part Number: 45011
Does This part fit My vehicle?
Product details

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955

Similar Products

Emissions code

EMISSIONS CODE

What does this emissions code mean?

C.A.R.B. EO Number: D-57-21

View full details

Features & Benefits

  • 45,000 volts.
  • Available chrome plated or black for that "stock look".
  • For use with inductive or CD ignition systems.
  • Low 0.6 Ohm primary resistance.
  • Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)


Flame Thrower II Canister Coils feature a very low resistance which make the the ideal coil for Ignitor II Electronic Ignition Conversion Kit as well as many other high performance ignitions. Low resistance, higher voltage enables you to run larger spark plug gaps for added power and improved fuel economy.


The Flame-Thrower canister style coil has been engineered to complement our Ignitor Electronic Ignition Conversion Kits and Plug n’ Play Distributors. Choose from the Flame-Thrower, Flame-Thrower II, and the Flame-Thrower III depending upon system voltage and resistance. Oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in off-road vehicles and boats.

Specifications

Maximum Voltage 45000
Primary Resistance 0.6 Ohms
Voltage 12
Coil Type Remote Mount Canister
Color Black
Finish Semi-Gloss
Ignition Type Electronic
Coil Shape Round
Maximum Diameter 2.15 Inches
Overall Height 6 Inches
Mounting Position Vertical
Mounting Bracket Included No
Mounting Hardware Included No
Ballast Resistor Included No
Coil Wire Attachment Female/Socket
Coil Wire Included No
Mount Type Circular Bracket
Requires External Resistor No
Coil Internal Construction Oil-Filled
Primary Inductance 6.25
Secondary Resistance 9000 Ohms
Turns Ratio 100:1
Grade Type Performance
