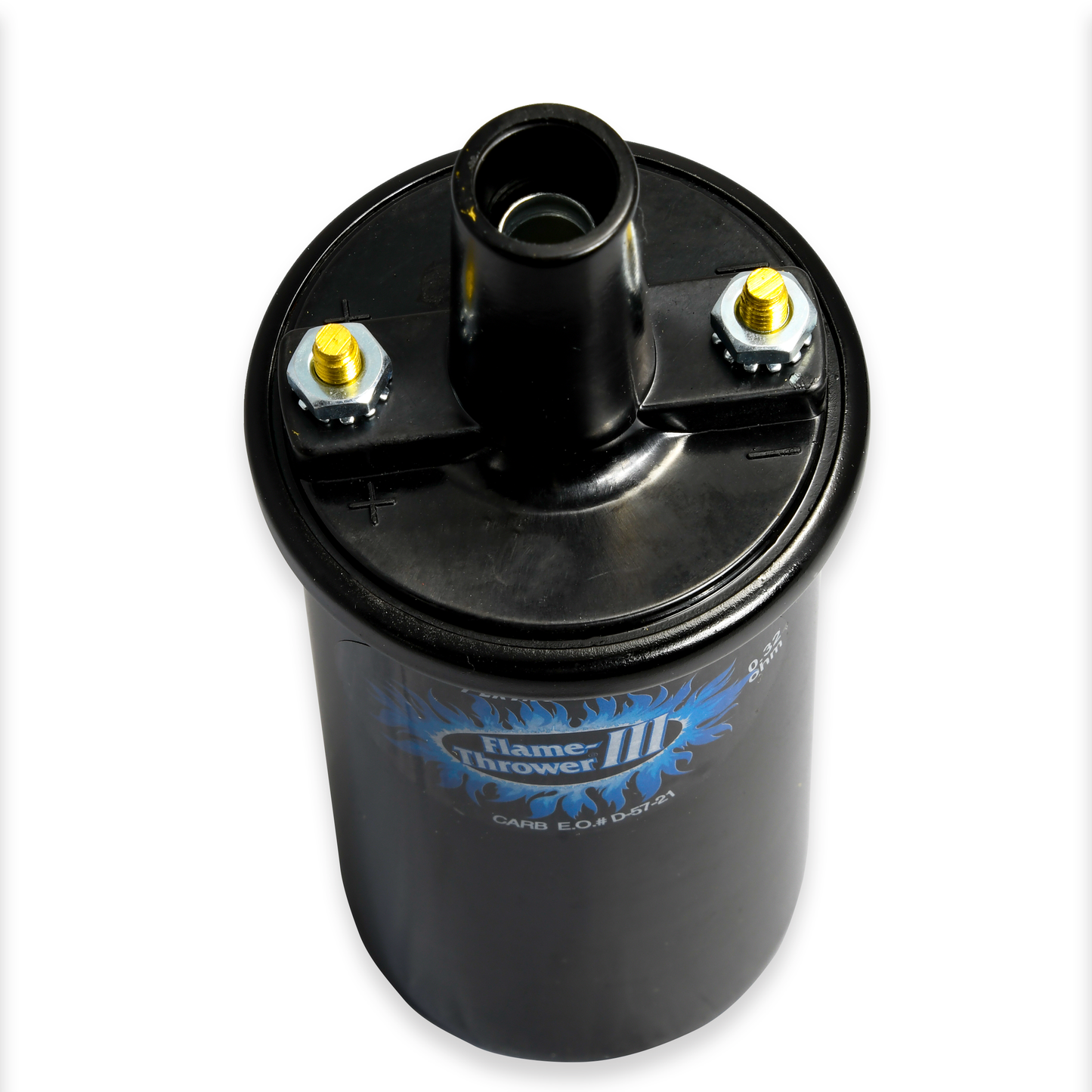

PerTronix 44011 Flame-Thrower III Coil 45,000 Volt 0.32 ohm Black

PerTronix 44011 Flame-Thrower III Coil 45,000 Volt 0.32 ohm Black

Part Number: 44011
Skip to product information

Features & Benefits

  • 45,000 volts.
  • Ultra Low 0.32 primary resistance.
  • Compatible with the Ignitor III and most capacitive discharge boxes.
  • Charges to peak current typically 30-70% faster than other coils.
  • Rapid charge time means maximum spark energy is sustained to higher engine RPM.


Flame Thrower III coils feature an ultra low resistance and are designed specifically for the Ignitor III Electronic Ignition Conversion kits. They feature a high turn ratio and ultra-low primary resistance enabling the ignition system to charge faster at high RPM's.


The Flame-Thrower canister style coil has been engineered to complement our Ignitor Electronic Ignition Conversion Kits and Plug n’ Play Distributors. Choose from the Flame-Thrower, Flame-Thrower II, and the Flame-Thrower III depending upon system voltage and resistance. Oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in off-road vehicles and boats.

Specifications

Maximum Voltage 45000
Primary Resistance 0.32 Ohms
Voltage 12
Coil Type Remote Mount Canister
Color Black
Finish Semi-Gloss
Ignition Type Electronic
Coil Shape Round
Maximum Diameter 2.15 Inches
Overall Height 6 Inches
Mounting Position Vertical
Mounting Bracket Included No
Mounting Hardware Included No
Ballast Resistor Included No
Coil Wire Attachment Female/Socket
Coil Wire Included No
Mount Type Circular Bracket
Requires External Resistor No
Coil Internal Construction Oil-Filled
Primary Inductance 2.5
Secondary Resistance 7000 Ohms
Turns Ratio 110:1
Grade Type Performance
