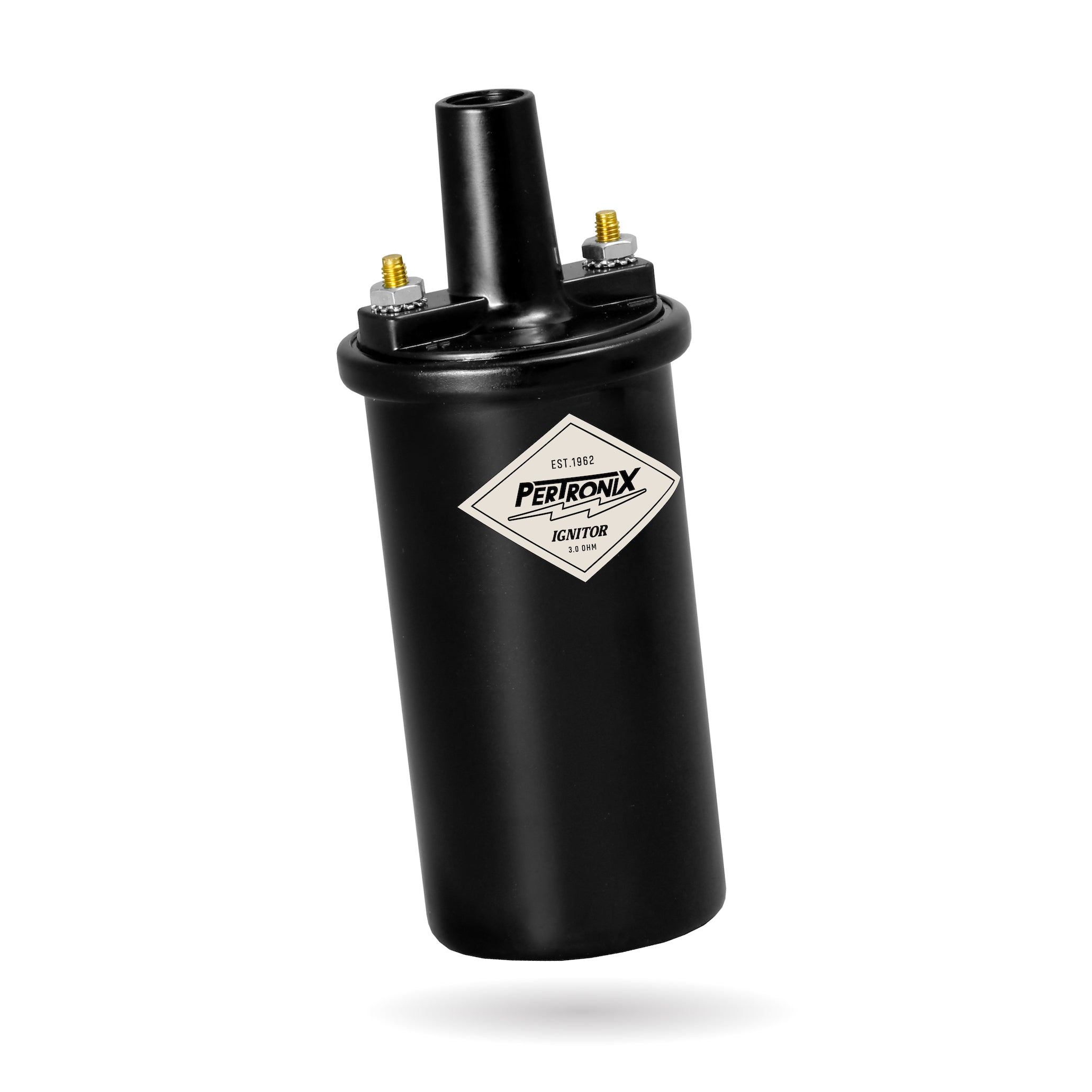

PerTronix 40611 Flame-Thrower Coil 40,000 Volt 3.0 ohm Black Epoxy
PerTronix 40611 Flame-Thrower Coil 40,000 Volt 3.0 ohm Black Epoxy
Features & Benefits
Features & Benefits
- 40,000 volts.
- Available chrome plated or black for that "stock look".
- For use with inductive ignition systems.
- 1.5 or 3.0 Ohm primary resistance values available.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
The Flame Thrower canister coil is designed to mate with the Ignitor Electronic Conversion Kit, but can benefit virtually any distributor type inductive systems. Higher voltage allows larger spark plug gap for added power, smoother response, and improved fuel economy.

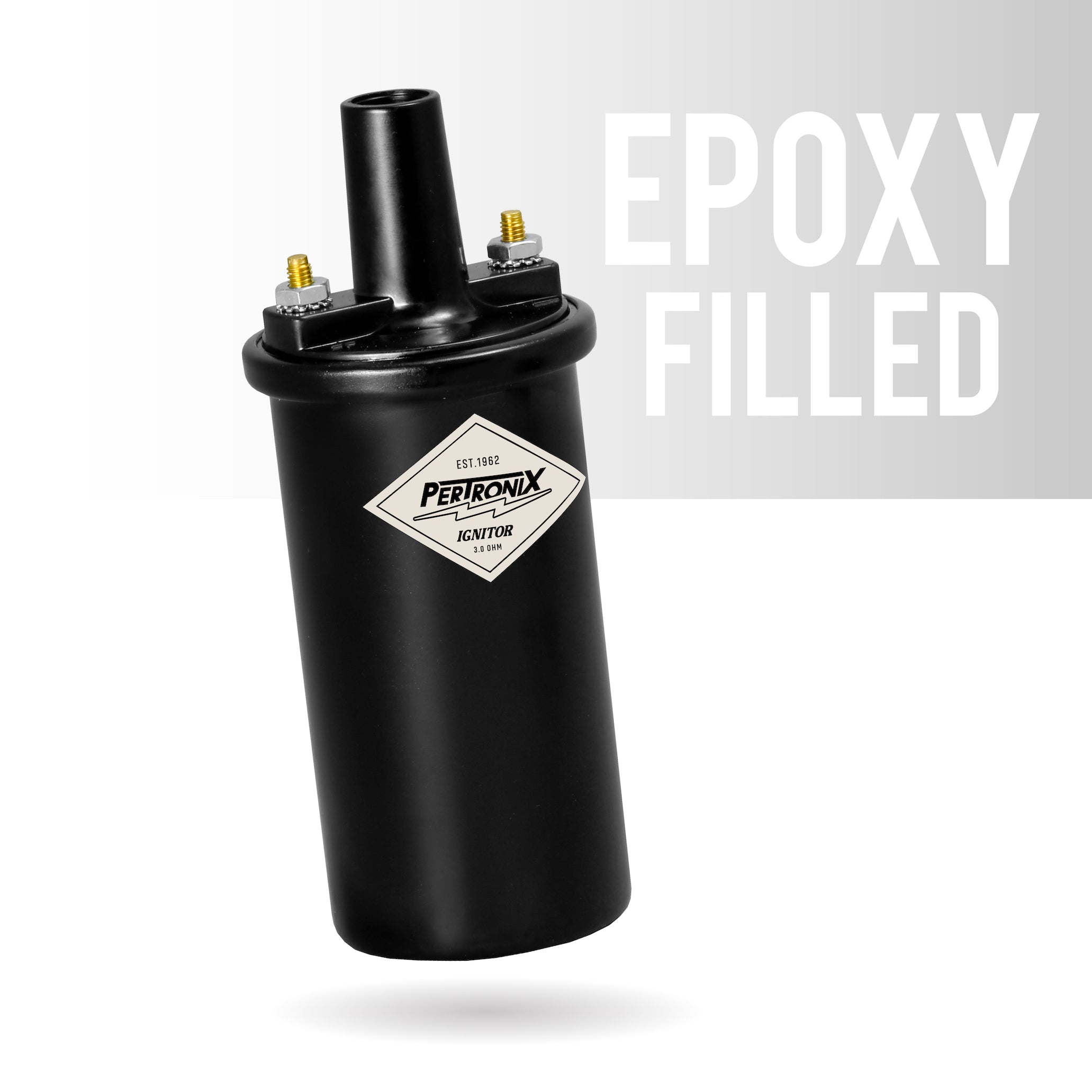

The Flame-Thrower canister style coil has been engineered to complement our Ignitor Electronic Ignition Conversion Kits and Plug n’ Play Distributors. Choose from the Flame-Thrower, Flame-Thrower II, and the Flame-Thrower III depending upon system voltage and resistance. Oil filled coils offer great heat control for street driven vehicles, while epoxy filled coils provide superior winding support for high vibration environments in off-road vehicles and boats.
Specifications
Specifications
Maximum Voltage | 40000 |
---|---|
Primary Resistance | 3 Ohms |
Voltage | 12 |
Coil Type | Remote Mount Canister |
Color | Black |
Finish | Semi-Gloss |
Ignition Type | Electronic |
Coil Shape | Round |
Maximum Diameter | 2.15 Inches |
Overall Height | 6 Inches |
Mounting Position | Vertical |
Mounting Bracket Included | No |
Mounting Hardware Included | No |
Ballast Resistor Included | No |
Coil Wire Attachment | Female/Socket |
Coil Wire Included | No |
Mount Type | Circular Bracket |
Requires External Resistor | No |
Coil Internal Construction | Epoxy |
Primary Inductance | 9.86 |
Secondary Resistance | 8500 Ohms |
Turns Ratio | 80:1 |
Grade Type | Performance |
Installation instructions
Installation instructions
Shipping & Delivery
Shipping & Delivery
Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.
Shipping Class | Order Value | Shipping Cost |
UPS Ground | $0 - 49.99 | $6.99 flat rate |
UPS Ground | $50 - 98.99 | $7.49 flat rate |
UPS Ground | $99+ | Free |
- At this time, PerTronix does not offer expedited shipping options from our website.
- All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
-
PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.
- Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!
Returns, Replacements & Warranty
Returns, Replacements & Warranty
Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.
Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.
For complete details, visit our Returns page.
Warranty
- Ignitor®, Ignitor II, Ignitor III – 30 months
- Industrial Distributor – 90 days mechanical / 30 months Ignitor
- Flame-Thrower® Spark Plug Wires – Lifetime
- Flame-Thrower® HEI Distributors and Component Parts – Limited 1 Year
- Flame-Thrower® Plug n’ Play Billet and Cast Distributors –1 Year Mechanical / 30 months module
- Second Strike® & Digital Rev Limiter – Limited 1 Year Digital HP Ignition Box – Limited 1 Year
- Digital HP Mobile Ignition Box – Limited 1 Year Contour Automotive Starters – Limited 1 Year
- Compu-Fire VW Ignition and Rotating Electrical – Limited 1 Year
- Flame-Thrower®/Compu-Fire® Coils – 90 days
Limited Warranty
PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.
Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.
