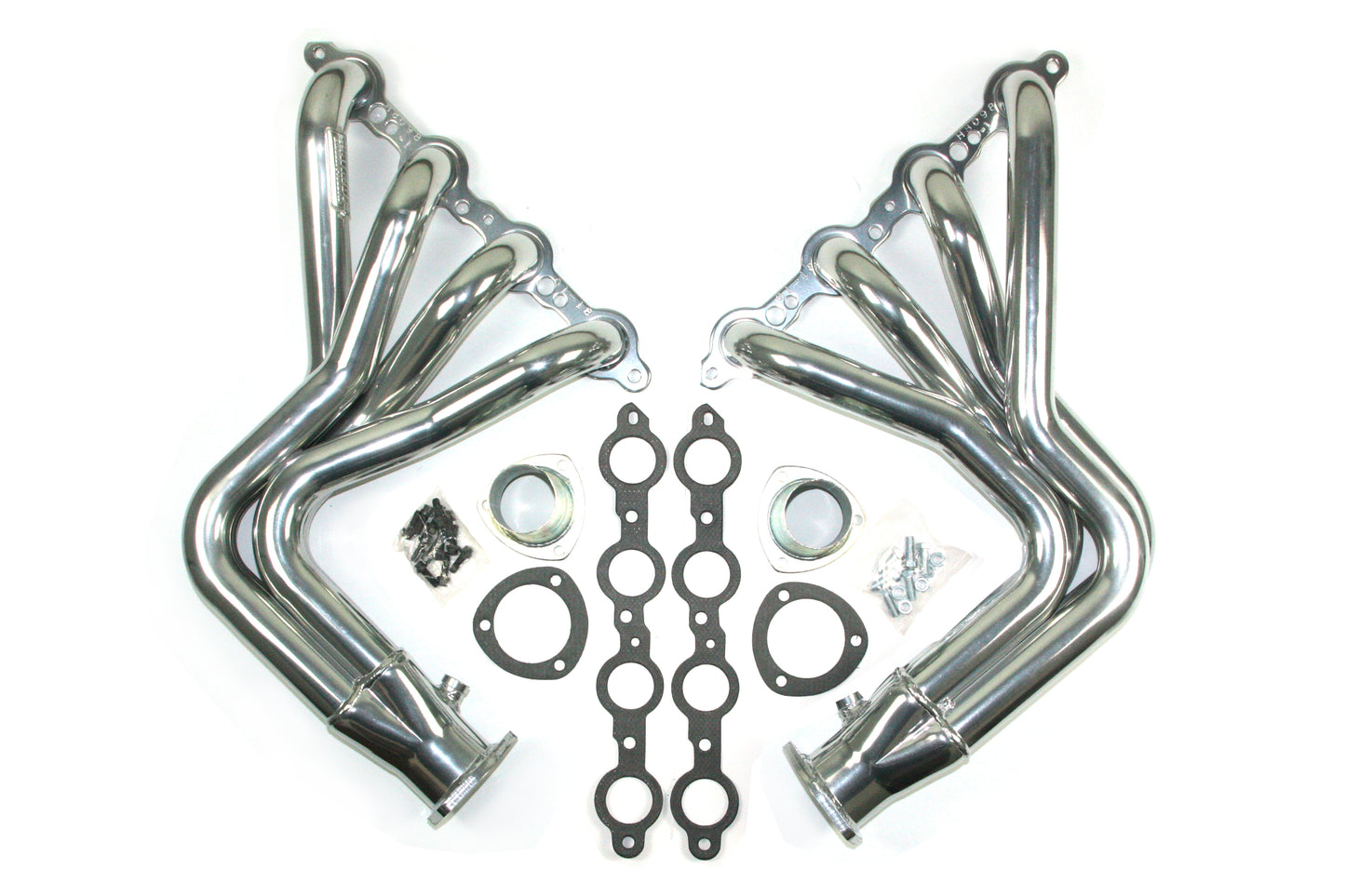

Street Rods with TCI or Equivalent Mustang II Suspension 1 3/4" Long Tube Street Rod Header with Metallic Ceramic Coating

Street Rods with TCI or Equivalent Mustang II Suspension 1 3/4" Long Tube Street Rod Header with Metallic Ceramic Coating

Part Number: H8098-1
Skip to product information

Highlights

    Patriot Street Rod Headers are the solution when a universal Tight Tuck won’t fit, or when you want more power. Long Tube Headers are the ultimate performance header with longer primary tubes for maximum torque and horsepower.

    • For 1928-48 Street Rods with Ford Chassis and LS1-LS9 Engines
      • For Street Rod applications, fits TCI or equivalent Mustang II suspension rack and pinion equipped cars
    • Direct fitment also available on a variety of vehicles, see application list on the product page
    • 1 3/4" Primary Tubing Diameter
    • 3" Collector Port Diameter
    • D-Port Port Shape
    • Metallic Ceramic Coating

    Why pick Patriot's Metallic Ceramic Coating finish?

    Our Metallic Ceramic Coating protects and extends the life of headers by creating a thermal barrier which significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue. After the Metallic Ceramic Coating is applied, it is polished with a vibratory finishing process that produces a high luster aluminum appearance. The polishing process compresses and activates the coating, creating a surface which is harder and 60% more corrosion resistant than an unpolished surface.

    Specifications

    Finish Metallic Ceramic Coated
    Material Steel
    Design Long Tube
    Primary Tubing Diameter 1.75 Inches
    Collector Port Diameter 3 Inches
    Port Shape Round
    Tube Wall Thickness 18 Gauge
    Collector Attachment 3-Bolt Flange
    Oxygen Sensor Port Yes
    Gasket Or Seal Included Yes
    Mounting Hardware Included Yes
    Grade Type Performance
    Color Silver
    Sheen Level Semi-Gloss

    Installation instructions

    Instruction Manual
    Installation Instructions
    Download PDF
    Applications

    Shipping & Delivery

    Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

     Shipping Class Order Value Shipping Cost
    UPS Ground $0 - 49.99 $6.99 flat rate
    UPS Ground $50 - 108.99 $7.49 flat rate
    UPS Ground $109+ Free


    • At this time, PerTronix does not offer expedited shipping options from our website.

    • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

    • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

    • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

    Returns, Replacements & Warranty

    Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

    Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

    For complete details, visit our Returns page.

    Warranty

    Reviews

    Street Rods with TCI or Equivalent Mustang II Suspension 1 3/4" Long Tube Street Rod Header with Metallic Ceramic Coating

    Street Rods with TCI or Equivalent Mustang II Suspension 1 3/4" Long Tube Street Rod Header with Metallic Ceramic Coating

    Part Number: H8098-1
    Regular price $783.50
    Sale price $783.50 Regular price Save %

    Sale Out of Stock
    Part Number: H8098-1
    Does This part fit My vehicle?
    View All Vehicle Applications
    Product details
    Notify me when this item is back in stock
    Input your email address and we'll let you know when it's back Please enter a valid email address to be notified. Success! We will notify you when this product is back in stock!.
    Payment methods
    • Visa
    • Mastercard
    • PayPal
    • American Express
    • Discover
    • Affirm

    Need help? Call us at 909-599-5955

    Emissions code

    EMISSIONS CODE

    What does this emissions code mean?

    • Free shipping on $99+ orders in lower 48 states
    • 90-day return policy
    • We’re here to help! Call us on 909-599-5955

    HEADER FITMENT NOTE

    Header applications are based on original engine and cylinder head port centerlines unless otherwise noted. Raised port cylinder heads will cause installation issues.

    View full details

    Highlights

      Patriot Street Rod Headers are the solution when a universal Tight Tuck won’t fit, or when you want more power. Long Tube Headers are the ultimate performance header with longer primary tubes for maximum torque and horsepower.

      • For 1928-48 Street Rods with Ford Chassis and LS1-LS9 Engines
        • For Street Rod applications, fits TCI or equivalent Mustang II suspension rack and pinion equipped cars
      • Direct fitment also available on a variety of vehicles, see application list on the product page
      • 1 3/4" Primary Tubing Diameter
      • 3" Collector Port Diameter
      • D-Port Port Shape
      • Metallic Ceramic Coating

      Why pick Patriot's Metallic Ceramic Coating finish?

      Our Metallic Ceramic Coating protects and extends the life of headers by creating a thermal barrier which significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue. After the Metallic Ceramic Coating is applied, it is polished with a vibratory finishing process that produces a high luster aluminum appearance. The polishing process compresses and activates the coating, creating a surface which is harder and 60% more corrosion resistant than an unpolished surface.

      Specifications

      Finish Metallic Ceramic Coated
      Material Steel
      Design Long Tube
      Primary Tubing Diameter 1.75 Inches
      Collector Port Diameter 3 Inches
      Port Shape Round
      Tube Wall Thickness 18 Gauge
      Collector Attachment 3-Bolt Flange
      Oxygen Sensor Port Yes
      Gasket Or Seal Included Yes
      Mounting Hardware Included Yes
      Grade Type Performance
      Color Silver
      Sheen Level Semi-Gloss

      Installation instructions

      Instruction Manual
      Installation Instructions
      Download PDF
      Applications

      Shipping & Delivery

      Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

       Shipping Class Order Value Shipping Cost
      UPS Ground $0 - 49.99 $6.99 flat rate
      UPS Ground $50 - 108.99 $7.49 flat rate
      UPS Ground $109+ Free


      • At this time, PerTronix does not offer expedited shipping options from our website.

      • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

      • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

      • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

      Returns, Replacements & Warranty

      Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

      Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

      For complete details, visit our Returns page.

      Warranty

      Reviews

      Street Rods with TCI or Equivalent Mustang II Suspension 1 3/4" Long Tube Street Rod Header with Metallic Ceramic Coating
      Street Rods with TCI or Equivalent Mustang II Suspension 1 3/4" Long Tube Street Rod Header with Metallic Ceramic Coating
      Regular price $783.50
      Sale price $783.50 Regular price

      You may also like

      Applications

      Year / Make / Model 1966-1967 Chevrolet C10 Pickup
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1968-1974 Chevrolet C10 Pickup
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1962-1967 Chevrolet Chevy II
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1968 Chevrolet Chevy II
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1975-1986 Chevrolet C10
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1967 Chevrolet Camaro
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1968-1981 Chevrolet Camaro
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1969-1974 Chevrolet Nova
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1947-1960 Chevrolet Truck
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1967 Pontiac Firebird
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1968-1981 Pontiac Firebird
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1948-1952 Ford F-1
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.

      Year / Make / Model 1953-1956 Ford F-100
      Notes
      • 4.8-6.2L GM LS Engine Swap Header
      • Fits TCI or equivalent Mustang II Suspension Rack and Pinion equipped cars only.
      • O2 bungs are welded on both collectors.
