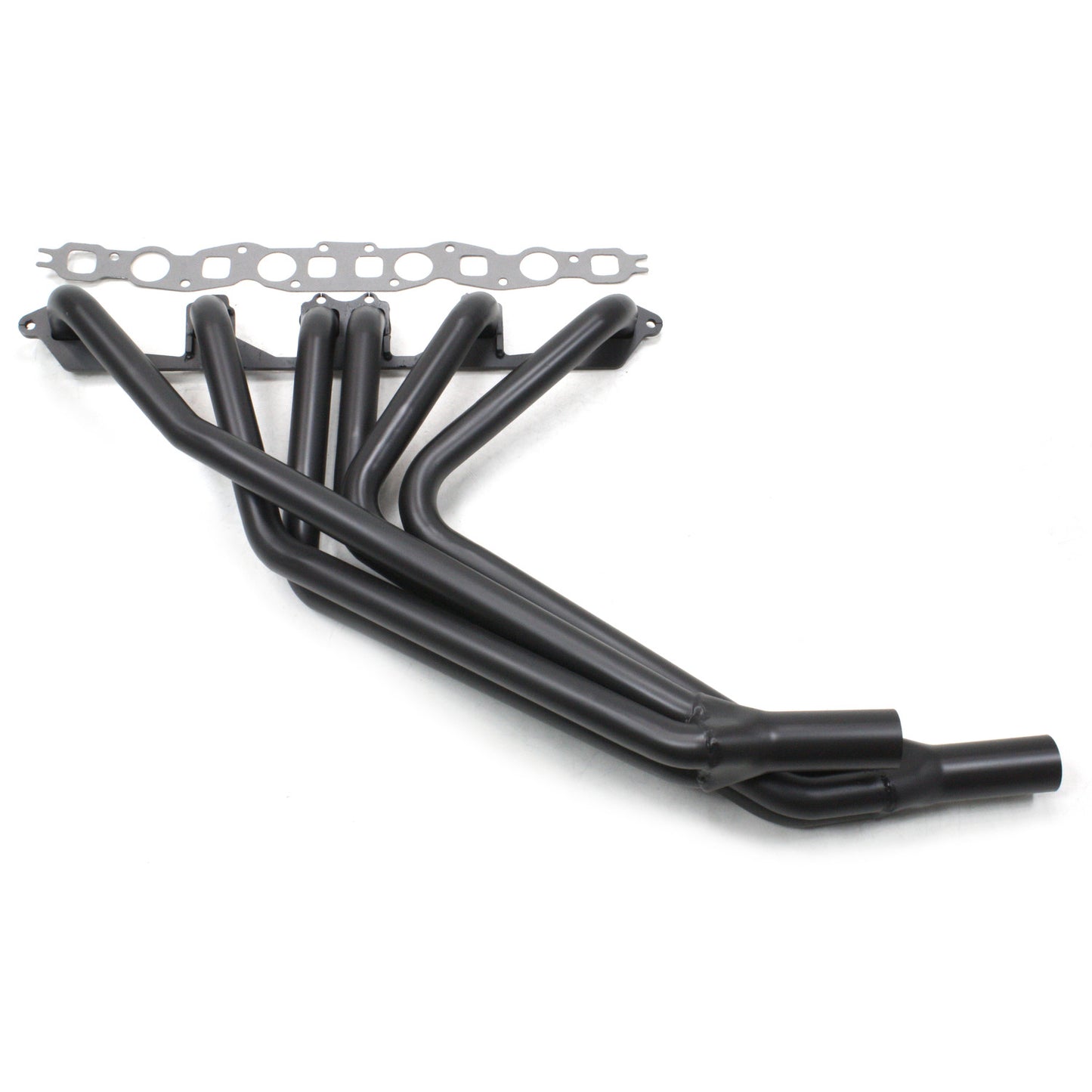

Patriot Exhaust H8425-B 1 1/2" Full Length Header Ford Truck 223 53-56 Hi-Temp Black Coating
Patriot Exhaust H8425-B 1 1/2" Full Length Header Ford Truck 223 53-56 Hi-Temp Black Coating
Highlights
Highlights
- Full length headers are typically used for higher RPM horsepower, but can also increase the mid range torque in applications were there is room to fit a long tube design.
- Durable 18-gauge tubing
- Comes complete with gaskets, header bolts and collector reducers.
- Available in three finishes; raw steel for individual customizing, Hi-Temp Black Coating or Metallic Ceramic Thermal Barrier Coating
- Limited One Year Warranty
Additional Information
Additional Information
Full length and fenderwell headers provide the ultimate performance for street rodders with high performance engines. These header styles have longer primary tubes, which help produce more horsepower and torque than Tight Tucks. Chassis headers fit inside the frame rails, but if there is not enough room, our "up and over" fenderwell headers will provide the same great performance with an awesome look.
Specifications
Specifications
| Finish | Hi-Temp Black Coating |
|---|---|
| Material | Steel |
| Design | Long Tube |
| Primary Tubing Diameter | 1.5 Inches |
| Collector Port Diameter | 2 Inches |
| Port Shape | Square |
| Tube Wall Thickness | 18 Gauge |
| Collector Attachment | Slip-Fit |
| Oxygen Sensor Port | No |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Performance |
| Color | Black |
| Sheen Level | Satin |
Installation instructions
Installation instructions
Shipping & Delivery
Shipping & Delivery
Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.
| Â Shipping Class | Order Value | Shipping Cost |
| UPS Ground | $0 - 49.99 | $6.99 flat rate |
| UPS Ground | $50 - 98.99 | $7.49 flat rate |
| UPS Ground | $99+ | Free |
- At this time, PerTronix does not offer expedited shipping options from our website.
- All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
-
PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.
- Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!
Returns, Replacements & Warranty
Returns, Replacements & Warranty
Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.
Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.
For complete details, visit our Returns page.
Warranty
All Patriot headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any other discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision,improper installation, off-road use, road hazards, the use of exhaust insulting wrap or like products or rust occurring after installation, is not covered by the warranty. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the original sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the right to replace or repair the alleged defective part and return the part freight collect.
Reviews
Reviews
Patriot Exhaust H8425-B 1 1/2" Full Length Header Ford Truck 223 53-56 Hi-Temp Black Coating
Patriot Exhaust H8425-B 1 1/2" Full Length Header Ford Truck 223 53-56 Hi-Temp Black Coating
- Free shipping on $99+ orders in lower 48 states
- 90-day return policy
- We’re here to help! Call us on 909-599-5955
Similar Products
Patriot Exhaust H8425-B 1 1/2" Full Length Header Ford Truck 223 53-56 Hi-Temp Black Coating
{{ title }}
EMISSIONS CODE
What does this emissions code mean?
Highlights
Highlights
- Full length headers are typically used for higher RPM horsepower, but can also increase the mid range torque in applications were there is room to fit a long tube design.
- Durable 18-gauge tubing
- Comes complete with gaskets, header bolts and collector reducers.
- Available in three finishes; raw steel for individual customizing, Hi-Temp Black Coating or Metallic Ceramic Thermal Barrier Coating
- Limited One Year Warranty
Additional Information
Additional Information
Full length and fenderwell headers provide the ultimate performance for street rodders with high performance engines. These header styles have longer primary tubes, which help produce more horsepower and torque than Tight Tucks. Chassis headers fit inside the frame rails, but if there is not enough room, our "up and over" fenderwell headers will provide the same great performance with an awesome look.
Specifications
Specifications
| Finish | Hi-Temp Black Coating |
|---|---|
| Material | Steel |
| Design | Long Tube |
| Primary Tubing Diameter | 1.5 Inches |
| Collector Port Diameter | 2 Inches |
| Port Shape | Square |
| Tube Wall Thickness | 18 Gauge |
| Collector Attachment | Slip-Fit |
| Oxygen Sensor Port | No |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Performance |
| Color | Black |
| Sheen Level | Satin |
Installation instructions
Installation instructions
Shipping & Delivery
Shipping & Delivery
Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.
| Â Shipping Class | Order Value | Shipping Cost |
| UPS Ground | $0 - 49.99 | $6.99 flat rate |
| UPS Ground | $50 - 98.99 | $7.49 flat rate |
| UPS Ground | $99+ | Free |
- At this time, PerTronix does not offer expedited shipping options from our website.
- All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
-
PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.
- Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!
Returns, Replacements & Warranty
Returns, Replacements & Warranty
Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.
Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.
For complete details, visit our Returns page.
Warranty
All Patriot headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any other discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision,improper installation, off-road use, road hazards, the use of exhaust insulting wrap or like products or rust occurring after installation, is not covered by the warranty. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the original sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the right to replace or repair the alleged defective part and return the part freight collect.
Reviews
Reviews
EMISSIONS PLACARD
PerTronix Performance Ignition and Exhaust Brands use a voluntary product identification program whereby all emission sensitive products can be identified by placing numbered labels in product packaging and listing corresponding numeric codes next to each part number. The corresponding numbers and explanations are as follows:
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This product is Legal for use on Pre-PoIIution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufactured's Application Guide and lnstallation Instructions.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is legal for Street or Off Highway use in 49 States. This product meets the EPA Anti Tampering Policy for Reasonable Basis that allows the stated vehicle to operate within the legal emissions standards in states that do not require а California EO. This product in Not Legal for Street or Off Highway use in California.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is Certified by the Manufacturer as being а Non-Emissions Related part per CARB and EPA regulations and therefore does not require emissions certification or CARB EO and is legal in all 50 states.
Applications
| Year / Make / Model | 1953 Ford F-100 |
|---|---|
| Engine Type | L6 |
| Engine Size(s) | Cubic Inches: 215 |
| Notes |
|
| Year / Make / Model | 1954-1956 Ford F-100 |
|---|---|
| Engine Type | L6 |
| Engine Size(s) | Cubic Inches: 223 |
| Notes |
|
| Year / Make / Model | 1953 Ford F-250 |
|---|---|
| Engine Type | L6 |
| Engine Size(s) | Cubic Inches: 215 |
| Notes |
|
| Year / Make / Model | 1954-1956 Ford F-250 |
|---|---|
| Engine Type | L6 |
| Engine Size(s) | Cubic Inches: 223 |
| Notes |
|
| Year / Make / Model | 1953 Ford F-350 |
|---|---|
| Engine Type | L6 |
| Engine Size(s) | Cubic Inches: 215 |
| Notes |
|
| Year / Make / Model | 1954-1956 Ford F-350 |
|---|---|
| Engine Type | L6 |
| Engine Size(s) | Cubic Inches: 223 |
| Notes |
|
