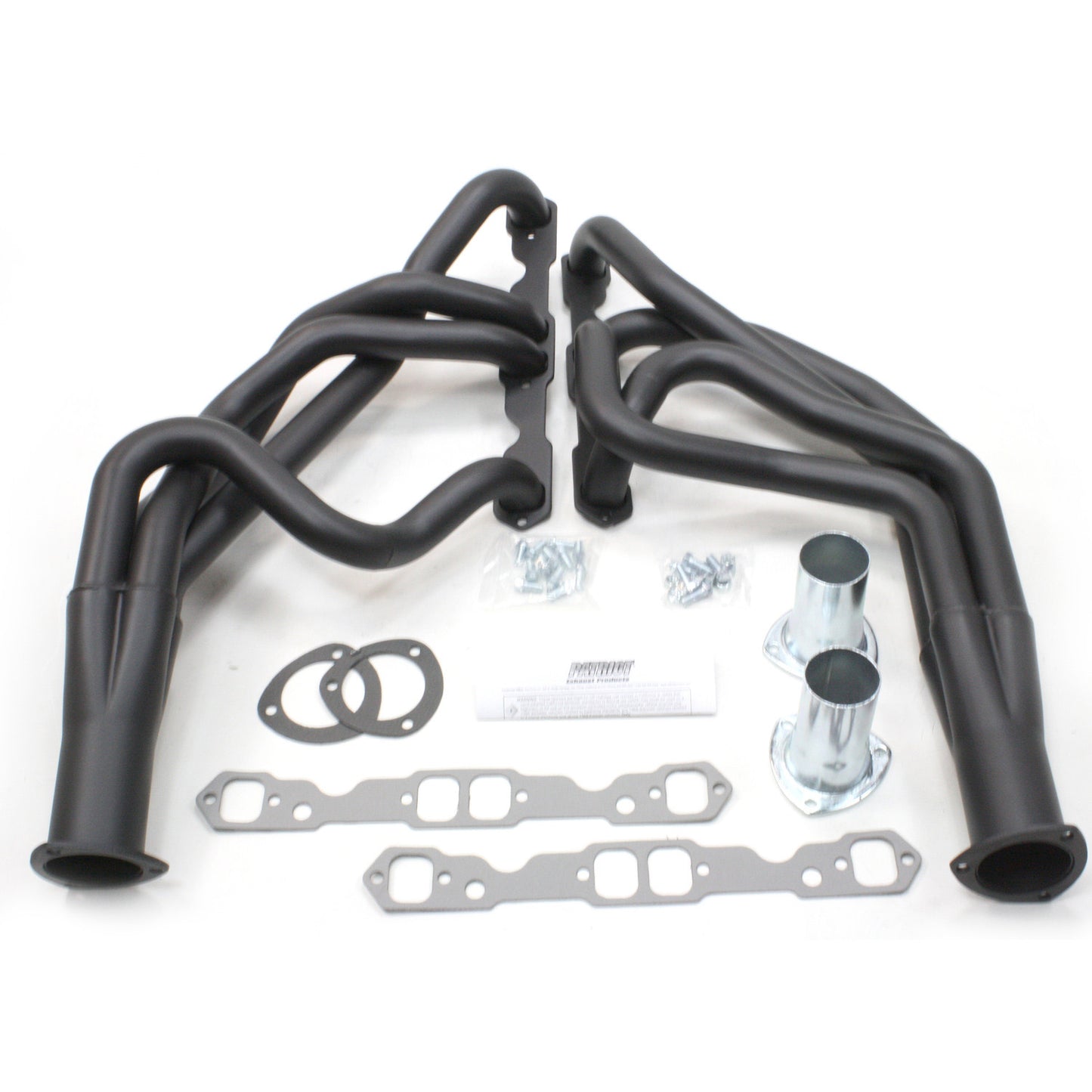

1955-57 Chevy Passenger Car/Wagon 1 3/4" Tri-5 Long Tube Chevy Small Block Engine Swap Header with Hi-Temp Black Coating

Emissions code 2 Emissions Code
Part Number: H8050-B In Stock
FAQs
  • Patriot Exhaust H8050-B 1 3/4" Tri-5 Header Chevrolet Passenger Car/Wagon Small Block Chevrolet 55-57 Hi-Temp Black Coating
Configure Your Purchase
$399.00
$399.00 $581.98 Save 31%
Sale Out of Stock

Add a Matching Ignition Coil
Total price: $399.00
Does this part fit my vehicle?

Free Delivery

Free shipping on orders over $100 in contiguous 48 states.

Easy Returns

Have confidence in your purchase.

Reliable Quality

Products built to last for enduring performance.

Features & Benefits

Highlights

Patriot offers some very popular engine swap headers that are designed to fit with most popular aftermarket engine swap kits. Patriot headers add the extra horsepower and torque that we know you are expecting.

These headers accommodate the GM 605 power steering box conversion and fit most motor mounts. Extra ground clearance makes "slammed" cars drivable and above frame rail exhaust system installation easy.

  • For Chevy Small Block (265-400) Engine Swaps in 1955-57 Chevy Passenger Cars/Wagons
  • Durable 18-gauge tubing
  • 1 3/4" Primary Tubing Diameter
  • 3" Collector Port Diameter
  • Rectangular Port Shape
  • Comes complete with gaskets, header bolts and collector reducers.
  • Hi-Temp Black Coating

Check footnotes for rack and pinion steering compatibility.

Why pick Patriot's Hi-Temp Black Coating?

An affordably priced alternative to our Metallic Ceramic Coating, our Hi-Temp Black finish provides good corrosion and heat protection when compared to many of the “cheaper” header finishes being applied by our competitors.

Need Help? Talk to our experts

(913) 808-2376 Email

Specifications
Finish Hi-Temp Black Coating
Material Steel
Design Long Tube
Primary Tubing Diameter 1.75 Inches
Collector Port Diameter 3 Inches
Port Shape Rectangle
Tube Wall Thickness 18 Gauge
Collector Attachment 3-Bolt Flange
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Black
Sheen Level Satin

Exhaust Header Dimensions
A - Left 4 1/4"
A - Right 5 1/4"
B - Left 16 3/8"
B - Right 16 3/8"
C - Left 33"
C - Right 35"

Installation instructions
Instruction Manual
Installation Instructions
Download

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 108.99 $7.49 flat rate
UPS Ground $109+ Free


  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!



Shipping Dock Hours of Operations

7:00am to 4:00pm CST Monday-Friday

Receiving Dock Numbers: 7 and 8

Shipping Dock Numbers: 13, 14, and 15

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

Fitment

Vehicles

Year / Make / Model Engine Type Engine Size(s) Notes
1955-1957 Chevrolet One-Fifty Series V8 Cubic Inches: 265
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1957 Chevrolet One-Fifty Series V8 Cubic Inches: 283
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1955-1957 Chevrolet Two-Ten Series V8 Cubic Inches: 265
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1957 Chevrolet Two-Ten Series V8 Cubic Inches: 283
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1955-1957 Chevrolet Nomad V8 Cubic Inches: 265
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1957 Chevrolet Nomad V8 Cubic Inches: 283
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1955-1957 Chevrolet Sedan Delivery V8 Cubic Inches: 265
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1957 Chevrolet Sedan Delivery V8 Cubic Inches: 283
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1955-1957 Chevrolet Bel Air V8 Cubic Inches: 265
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy
1957 Chevrolet Bel Air V8 Cubic Inches: 283
  • Fits most angle plug heads
  • Fits with manual and auto trans floor shifts only
  • Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent and stock or 605 steering boxes. Stock mid mount and ears on the frame must removed
  • Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.
  • Fits 265-400 Small Block Chevy

Always Read All Product Page Details For More Important Fitment Information
