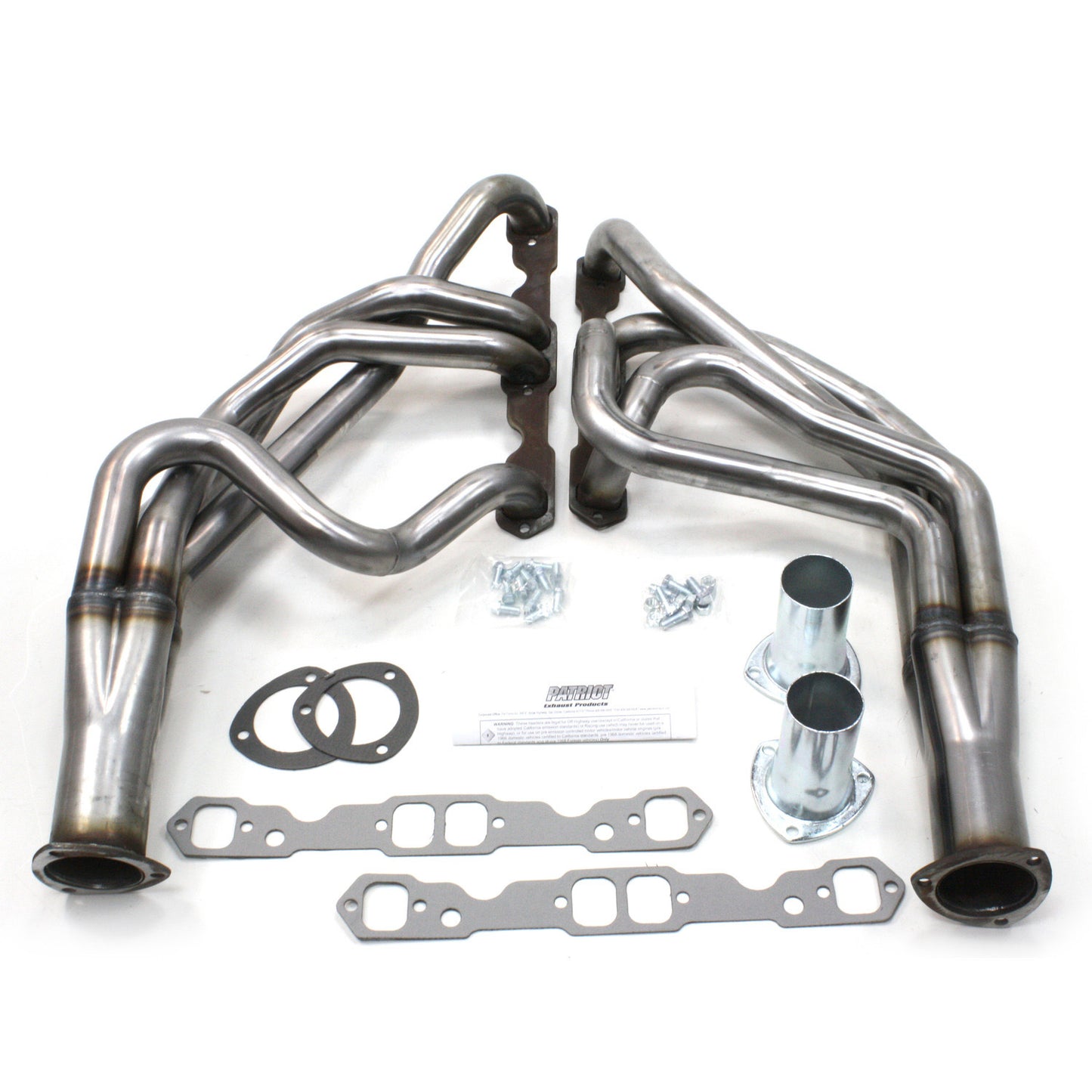

1955-57 Chevy Passenger Car/Wagon 1 3/4" Tri-5 Long Tube Chevy Small Block Engine Swap Header in Raw Steel
1955-57 Chevy Passenger Car/Wagon 1 3/4" Tri-5 Long Tube Chevy Small Block Engine Swap Header in Raw Steel
Highlights
Highlights
Patriot offers some very popular engine swap headers that are designed to fit with most popular aftermarket engine swap kits. Patriot headers add the extra horsepower and torque that we know you are expecting.
These headers accommodate the GM 605 power steering box conversion and fit most motor mounts. Extra ground clearance makes "slammed" cars drivable and above frame rail exhaust system installation easy.
- For Chevy Small Block (265-400) Engine Swaps in 1955-57 Chevy Passenger Cars/Wagons
- Durable 18-gauge tubing
- 1 3/4" Primary Tubing Diameter
- 3" Collector Port Diameter
- Rectangular Port Shape
- Comes complete with gaskets, header bolts and collector reducers.
- Raw Steel
Check footnotes for rack and pinion steering compatibility.
Specifications
Specifications
| Finish | Uncoated |
|---|---|
| Material | Steel |
| Design | Long Tube |
| Primary Tubing Diameter | 1.75 Inches |
| Collector Port Diameter | 3 Inches |
| Port Shape | Rectangle |
| Tube Wall Thickness | 18 Gauge |
| Collector Attachment | 3-Bolt Flange |
| Oxygen Sensor Port | No |
| Gasket Or Seal Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Performance |
| Color | Natural |
| Sheen Level | Matte |
Installation instructions
