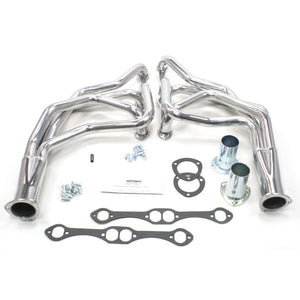

1973–91 GM Truck/SUV Small Block Chevy V8 1 5/8" Long Tube Header with Metallic Ceramic Coating

Emissions code 3 Emissions Code
Part Number: H8048-1 In Stock
FAQs
  • Patriot Exhaust H8048-1 1 5/8" Header Chevrolet 2WD Truck Small Block 67-87, Blazer 2WD 69-91 Metallic Ceramic Coating
Configure Your Purchase
$674.77
$674.77 Save %
Sale Out of Stock

Add a Matching Ignition Coil
Total price: $674.77
Does this part fit my vehicle?

Free Delivery

Free shipping on orders over $100 in contiguous 48 states.

Easy Returns

Have confidence in your purchase.

Reliable Quality

Products built to last for enduring performance.

Features & Benefits

Highlights

Long Tube Headers are typically used for higher RPM horsepower, but can also increase the mid range torque in applications were there is room to fit a long tube design.

  • 1973–91 GM Truck/SUV Small Block Chevy V8 applications. See entire application list on the product page below.
  • 1 5/8" Primary Tubing Diameter
  • 3" Collector Port Diameter
  • Oval Port Shape
  • Metallic Ceramic Coating
  • Please note: Does not work with manual transmissions

Why pick Patriot's Metallic Ceramic Coating finish?

Our Metallic Ceramic Coating protects and extends the life of headers by creating a thermal barrier which significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue. After the Metallic Ceramic Coating is applied, it is polished with a vibratory finishing process that produces a high luster aluminum appearance. The polishing process compresses and activates the coating, creating a surface which is harder and 60% more corrosion resistant than an unpolished surface.

Need Help? Talk to our experts

(913) 808-2376 Email

Specifications
Finish Metallic Ceramic Coated
Material Steel
Design Long Tube
Primary Tubing Diameter 1.625 Inches
Collector Port Diameter 3 Inches
Port Shape Oval
Tube Wall Thickness 18 Gauge
Collector Attachment 3-Bolt Flange
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Silver
Sheen Level Semi-Gloss

Exhaust Header Dimensions
A - Left 4 1/2"
A - Right 5 3/8"
B - Left 18 1/8"
B - Right 17 3/8"
C - Left 32"
C - Right 31 1/4"

Installation instructions
Instruction Manual
Installation Instructions
Download

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 108.99 $7.49 flat rate
UPS Ground $109+ Free


  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!



Shipping Dock Hours of Operations

7:00am to 4:00pm CST Monday-Friday

Receiving Dock Numbers: 7 and 8

Shipping Dock Numbers: 13, 14, and 15

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

Fitment

Vehicles

Year / Make / Model Engine Type Engine Size(s) Notes
1973-1974 Chevrolet C10 Pickup V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 Chevrolet C10 Pickup V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 Chevrolet C20 Pickup V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 Chevrolet C30 Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 Chevrolet Blazer V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 Chevrolet Blazer V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1986 Chevrolet C10 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976-1980 Chevrolet C10 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1986 Chevrolet C10 V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1986 Chevrolet C10 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1979 Chevrolet C10 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1981-1986 Chevrolet C10 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1987 Chevrolet C20 V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976-1980 Chevrolet C20 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1978 Chevrolet C20 V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1981-1986 Chevrolet C20 V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1986 Chevrolet C20 Suburban V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976-1980 Chevrolet C20 Suburban V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1979 Chevrolet C20 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1981-1986 Chevrolet C20 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1986 Chevrolet C30 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976-1978 Chevrolet C30 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1978 Chevrolet C30 V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 Chevrolet R10 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 Chevrolet R10 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1988 Chevrolet R10 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 Chevrolet R10 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1989-1991 Chevrolet R1500 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1988 Chevrolet R20 Crew Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 Chevrolet R20 Standard Cab Pickup V8 Cubic Inches: 305, 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 Chevrolet R20 Crew Cab Pickup V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1989 Chevrolet R2500 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1988 Chevrolet R30 Crew Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 Chevrolet R30 Standard Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 GMC C15/C1500 Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 GMC C15/C1500 Pickup V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 GMC C15/C1500 Suburban V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 GMC C15/C1500 Suburban V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 GMC C25/C2500 Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 GMC C25/C2500 Pickup V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 GMC C25/C2500 Suburban V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 GMC C25/C2500 Suburban V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1974 GMC C35/C3500 Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973 GMC C35/C3500 Pickup V8 Cubic Inches: 307
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979-1986 GMC C1500 V8 Liters: 5.0
Cubic Inches: 305, 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979-1980 GMC C1500 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979-1986 GMC C1500 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979 GMC C1500 Suburban V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1981-1986 GMC C1500 Suburban V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979-1986 GMC C2500 V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979 GMC C2500 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1980-1986 GMC C2500 V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979-1986 GMC C2500 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1980 GMC C2500 Suburban V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1982-1986 GMC C2500 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979-1986 GMC C3500 V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1979 GMC C3500 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1986 GMC C3500 V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1991 GMC R1500 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1989 GMC R2500 Crew Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 GMC R2500 Standard Cab Pickup V8 Cubic Inches: 305, 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1991 GMC R2500 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987-1991 GMC R3500 Crew Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 GMC R3500 Standard Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1978 GMC C15 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976 GMC C15 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1978 GMC C15 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1978 GMC C15 V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1978 GMC C15 Suburban V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1978 GMC C15 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Smog Pump
  • without Catalytic Converter
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1978 GMC C25 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976-1978 GMC C25 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1978 GMC C25 V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1978 GMC C25 Suburban V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1978 GMC C25 Suburban V8 Liters: 5.0
Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1978 GMC C35 V8 Liters: 5.7
Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1976-1978 GMC C35 V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1973-1984 GMC Jimmy V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1975-1979 GMC Jimmy V8 Cubic Inches: 400
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1977-1984 GMC Jimmy V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 GMC R1500 V8 Cubic Inches: 305
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only
1987 GMC R1500 Standard Cab Pickup V8 Cubic Inches: 350
  • without Catalytic Converter
  • without Smog Pump
  • Fits most angle plug heads
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines
  • Reducers available with O2 sensor fitting see catalog listings
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Rear Wheel Drive Only

Always Read All Product Page Details For More Important Fitment Information

You may also like

Recently Viewed Products
