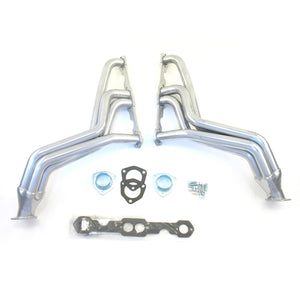

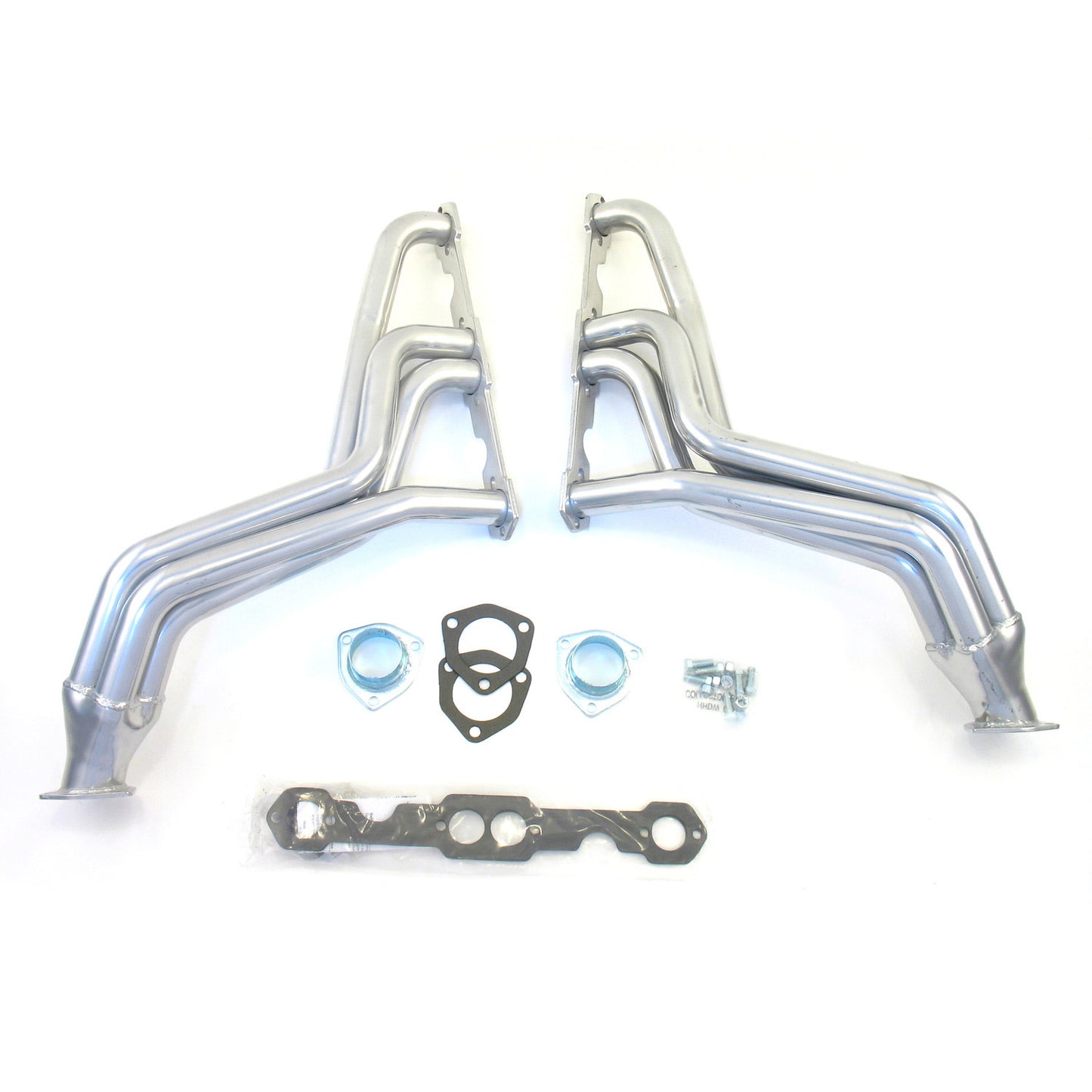

Fat Fendered Street Rods with Chevy Small Block 1 5/8" Fenderwell Header with Metallic Ceramic Coating

Fat Fendered Street Rods with Chevy Small Block 1 5/8" Fenderwell Header with Metallic Ceramic Coating

Part Number: H8033-1
Skip to product information

Highlights

    Patriot Street Rod Headers are the solution when a universal Tight Tuck won’t fit, or when you want more power. Fenderwell Headers combine the maximum torque and horsepower benefits of Long Tube Headers in an over the chassis exit design for more steering and engine compartment room and that gasser look.

    • For Fat Fendered Street Rods with Chevy Small Block (265-400) Engines
    • 1 5/8" Primary Tubing Diameter
    • 2 1/2" Collector Port Diameter
    • Round Port Shape
    • Metallic Ceramic Coating

    Why pick Patriot's Metallic Ceramic Coating finish?

    Our Metallic Ceramic Coating protects and extends the life of headers by creating a thermal barrier which significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue. After the Metallic Ceramic Coating is applied, it is polished with a vibratory finishing process that produces a high luster aluminum appearance. The polishing process compresses and activates the coating, creating a surface which is harder and 60% more corrosion resistant than an unpolished surface.

    Specifications

    Finish Metallic Ceramic Coated
    Material Steel
    Design Long Tube
    Primary Tubing Diameter 1.625 Inches
    Collector Port Diameter 2.5 Inches
    Port Shape Round
    Tube Wall Thickness 18 Gauge
    Collector Attachment 3-Bolt Flange
    Oxygen Sensor Port No
    Gasket Or Seal Included Yes
    Mounting Hardware Included Yes
    Grade Type Performance
    Color Silver
    Sheen Level Semi-Gloss
