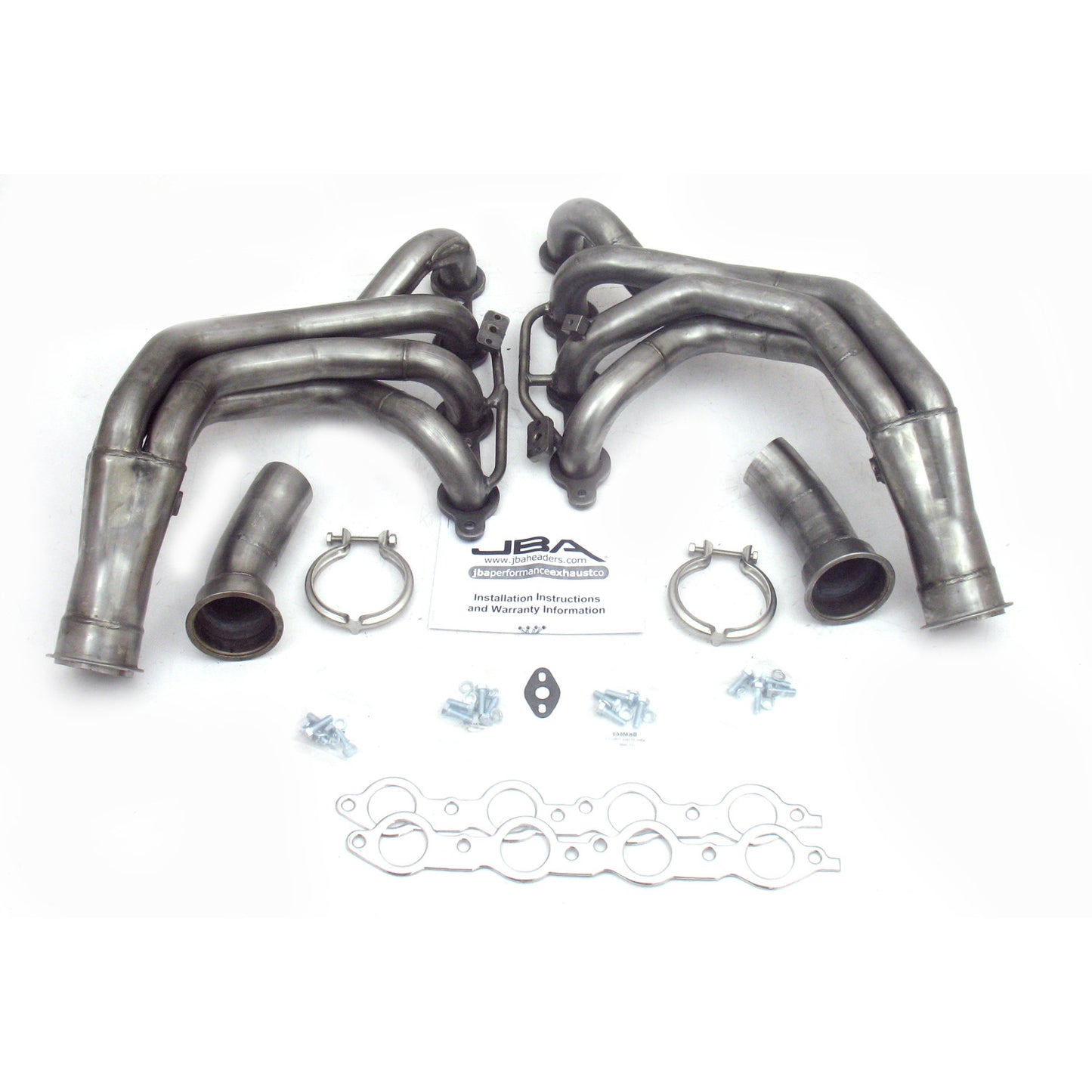

JBA Performance Exhaust 6817S 1 3/4" Header Long Tube Stainless Steel 97-00 Corvette

JBA Performance Exhaust 6817S 1 3/4" Header Long Tube Stainless Steel 97-00 Corvette

Part Number: 6817S
Skip to product information

Features & Benefits

  • 3/8" thick CNC laser-cut flanges
  • Patented JBA Firecone® collector
  • O2 sensor provisions
  • Large diameter mandrel-bent steel tubes
  • Oversized exhaust ports

JBA long tube headers are the number one choice for maximum performance gains and high RPM efficiency. Available in 409 or 304 Series Stainless Steel. These long tube designs are dyno and race proven to deliver the greatest possible increase in horsepower and torque throughout the RPM range. All JBA long tube headers feature large mandrel-bent stainless steel primary tubes, oversized exhaust ports, extra thick 3/8 one-piece flanges, and proprietary JBA Firecone® merged collectors for smooth flow. Each system is designed to give the maximum amount of ground clearance possible, so lowered cars do not drag the collectors.


304 Series Stainless Steel headers are built to endure the harshest of environments, ensuring your investment stands the test of time. These headers are embellished with 304 flanges, longer, smoother 304 merged collectors and 304 primary tubing. Our proprietary JBA Firecone has been extended with a longer concave design within the collector for optimal flow. Available in natural finish or a meticulously hand polished mirror finish.


Each system includes high quality hardware and thorough instructions for a professional no-leak installation. For closed course competition use only.

Specifications

Finish Uncoated
Design Full-length
Primary Tubing Diameter 1.875 Inches
Collector Port Diameter 2.5 Inches
Tube Wall Thickness 0.059 Inches
Flange Thickness 3/8 Inches
Oxygen Sensor Port Yes
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Grey
Sheen Level Matte

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

All JBA headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products or rust occurring after installation, is not covered by the warranty. The warranty extends only to the original purchaser. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the rights to replace or repair the alleged defective part and return the part freight collect.

Reviews

JBA Performance Exhaust 6817S 1 3/4" Header Long Tube Stainless Steel 97-00 Corvette

JBA Performance Exhaust 6817S 1 3/4" Header Long Tube Stainless Steel 97-00 Corvette

Part Number: 6817S
Regular price $782.95
Sale price $782.95 Regular price

Part Number: 6817S

$75 MAIL-IN REBATE Learn more

Does This part fit My vehicle?
View All Vehicle Applications
Product details

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955

Similar Products

Emissions code

EMISSIONS CODE

What does this emissions code mean?

View full details

Features & Benefits

  • 3/8" thick CNC laser-cut flanges
  • Patented JBA Firecone® collector
  • O2 sensor provisions
  • Large diameter mandrel-bent steel tubes
  • Oversized exhaust ports

JBA long tube headers are the number one choice for maximum performance gains and high RPM efficiency. Available in 409 or 304 Series Stainless Steel. These long tube designs are dyno and race proven to deliver the greatest possible increase in horsepower and torque throughout the RPM range. All JBA long tube headers feature large mandrel-bent stainless steel primary tubes, oversized exhaust ports, extra thick 3/8 one-piece flanges, and proprietary JBA Firecone® merged collectors for smooth flow. Each system is designed to give the maximum amount of ground clearance possible, so lowered cars do not drag the collectors.


304 Series Stainless Steel headers are built to endure the harshest of environments, ensuring your investment stands the test of time. These headers are embellished with 304 flanges, longer, smoother 304 merged collectors and 304 primary tubing. Our proprietary JBA Firecone has been extended with a longer concave design within the collector for optimal flow. Available in natural finish or a meticulously hand polished mirror finish.


Each system includes high quality hardware and thorough instructions for a professional no-leak installation. For closed course competition use only.

Specifications

Finish Uncoated
Design Full-length
Primary Tubing Diameter 1.875 Inches
Collector Port Diameter 2.5 Inches
Tube Wall Thickness 0.059 Inches
Flange Thickness 3/8 Inches
Oxygen Sensor Port Yes
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Grey
Sheen Level Matte

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

All JBA headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision, improper installation, off-road use, road hazards, the use of exhaust insulating wrap or like products or rust occurring after installation, is not covered by the warranty. The warranty extends only to the original purchaser. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the rights to replace or repair the alleged defective part and return the part freight collect.

Reviews

Applications

Year / Make / Model 1997-2000 Chevrolet Corvette
Engine Type V8
Engine Size(s) Liters: 5.7
Cubic Inches: 350
Notes
  • Header equipped with 02 Sensor provisions.
  • O2 Sensor extensions included.
