Doug's Headers - D452

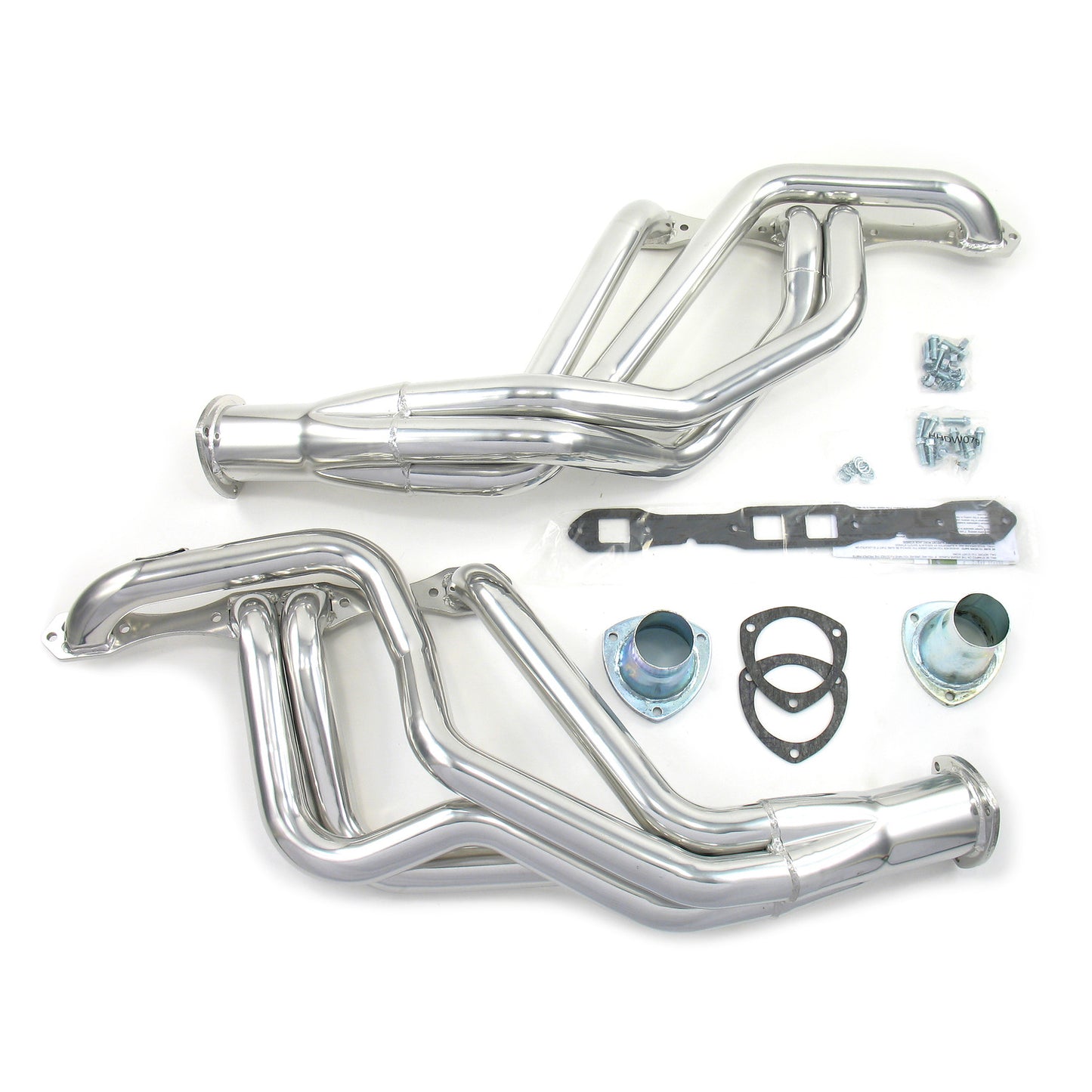

Doug's Headers D452 2" 4-Tube Full Length Header Mopar B Body Big Block Mopar 62-72 Metallic Ceramic Coating

Doug's Headers D452 2" 4-Tube Full Length Header Mopar B Body Big Block Mopar 62-72 Metallic Ceramic Coating

Part Number: D452 / UPC 694342509705
Skip to product information

Highlights

  • 3/8" Thick machined flanges... no warping
  • CNC mandrel bent tubes... accurate fit & better flow
  • Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
  • Heavy 16 gauge tubing... longer life
  • Tubes are pre-polished to remove scratches and the header is finished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees

Additional Information

Doug's PASSENGER CAR HEADERS Long Tube Metallic Ceramic Coated Header development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

Specifications

Color Silver
Finish Metallic Ceramic Coated
Material Steel
Flange Thickness 0.375 IN
EGR Port No
Gasket or Seal Included Yes
Mounting Hardware Included Yes
Oxygen Sensor Port No
Collector Attachment 3-Bolt Flange
Collector Port Diameter 3.5 IN
Design Full-length
Grade Type Performance
Port Shape SAP
Primary Tubing Diameter 2.0 IN
Sheen Level Semi-Gloss
Tube Wall Thickness 16 GU

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.
  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

Returns & Replacements

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Reviews

Doug's Headers - D452

Doug's Headers D452 2" 4-Tube Full Length Header Mopar B Body Big Block Mopar 62-72 Metallic Ceramic Coating

Doug's Headers D452 2" 4-Tube Full Length Header Mopar B Body Big Block Mopar 62-72 Metallic Ceramic Coating

Part Number: D452 / UPC 694342509705
Regular price $999.95
Sale price $999.95 Regular price

Part Number: D452 / UPC 694342509705
View All Vehicle Applications

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955
Emissions code

Emissions Code

Continue Reading to Understand Emissions Codes

View full details

Highlights

  • 3/8" Thick machined flanges... no warping
  • CNC mandrel bent tubes... accurate fit & better flow
  • Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
  • Heavy 16 gauge tubing... longer life
  • Tubes are pre-polished to remove scratches and the header is finished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees

Additional Information

Doug's PASSENGER CAR HEADERS Long Tube Metallic Ceramic Coated Header development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

Specifications

Color Silver
Finish Metallic Ceramic Coated
Material Steel
Flange Thickness 0.375 IN
EGR Port No
Gasket or Seal Included Yes
Mounting Hardware Included Yes
Oxygen Sensor Port No
Collector Attachment 3-Bolt Flange
Collector Port Diameter 3.5 IN
Design Full-length
Grade Type Performance
Port Shape SAP
Primary Tubing Diameter 2.0 IN
Sheen Level Semi-Gloss
Tube Wall Thickness 16 GU

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.
  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

Returns & Replacements

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Reviews

Applications

Year / Make / Model 1970-1972 Dodge Challenger
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1970-1971 Dodge Challenger
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1966-1971 Dodge Charger
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1967-1974 Dodge Charger
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1967-1971 Dodge Charger R/T
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1971 Dodge Charger Super Bee
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1965-1971 Dodge Coronet
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1966-1974 Dodge Coronet
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1968-1970 Dodge Coronet Super Bee
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1962 Dodge Dart
Engine Type V8
Engine Size(s) Cubic Inches: 413
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1971-1972 Plymouth Barracuda
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1971 Plymouth Barracuda
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1962-1964 Plymouth Belvedere
Engine Type V8
Engine Size(s) Liters: 6.7
Cubic Inches: 413
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1963-1967 Plymouth Belvedere
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1969 Plymouth Belvedere
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1966-1967 Plymouth Belvedere
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1970-1972 Plymouth Cuda
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1970-1971 Plymouth Cuda
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1967-1971 Plymouth GTX
Engine Type V8
Engine Size(s) Liters: 7.0, 7.2
Cubic Inches: 426, 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1965-1967 Plymouth Satellite
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1966-1967 Plymouth Satellite
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1973-1974 Plymouth Satellite
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1962-1964 Plymouth Savoy
Engine Type V8
Engine Size(s) Liters: 6.7
Cubic Inches: 413
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1963-1964 Plymouth Savoy
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1962-1964 Plymouth Fury
Engine Type V8
Engine Size(s) Liters: 6.7
Cubic Inches: 413
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1963-1965 Plymouth Fury
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1968-1971 Plymouth Road Runner
Engine Type V8
Engine Size(s) Liters: 7.0
Cubic Inches: 426
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.

Year / Make / Model 1969-1974 Plymouth Road Runner
Engine Type V8
Engine Size(s) Liters: 7.2
Cubic Inches: 440
Notes
  • Designed for original heads (906 or 915 castings), 1975 and later model heads may require modification to flange.
