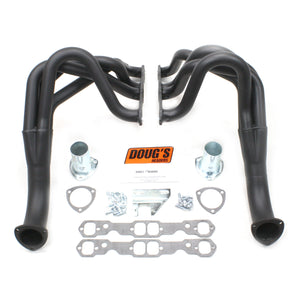

Doug's Headers D329-B 1 3/4" 4-Tube Full Length Header Chevy II Small Block Chevrolet 62-67 Hi-Temp Black Coating

Doug's Headers D329-B 1 3/4" 4-Tube Full Length Header Chevy II Small Block Chevrolet 62-67 Hi-Temp Black Coating

Part Number: D329-B / UPC 694342543679
Skip to product information

Features & Benefits

  • 3/8" thick 304 stainless machine flanges to prevent warping
  • CNC 304 stainless mandrel bent tubes for an accurate fit and improved flow
  • Precision formed long transition collectors and long tube design reduce backpressure and increase higher RPM horsepower


For the enthusiast who demands the best, Doug's Headers are not just components; they're a statement of excellence, a commitment to leading-edge performance, and a nod to the glory days of muscle cars and drag racing. Join the ranks of champions. Experience the unmatched quality and performance of Doug's Headers today.

Specifications

Finish Hi-Temp Black Coating
Material Steel
Design Fenderwell
Primary Tubing Diameter 1.75 IN
Collector Port Diameter 3.0 IN
Port Shape SAP
Tube Wall Thickness 16 Gauge
Flange Thickness 0.375 IN
Collector Attachment 3-Bolt Flange
EGT Port No
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Color Black
Sheen Level Matte

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.
  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

Returns & Replacements

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Reviews

Doug's Headers - D329-B

Doug's Headers D329-B 1 3/4" 4-Tube Full Length Header Chevy II Small Block Chevrolet 62-67 Hi-Temp Black Coating

Doug's Headers D329-B 1 3/4" 4-Tube Full Length Header Chevy II Small Block Chevrolet 62-67 Hi-Temp Black Coating

Part Number: D329-B / UPC 694342543679
Regular price $813.95
Sale price $813.95 Regular price

Part Number: D329-B / UPC 694342543679
Does This part fit My vehicle?
View All Vehicle Applications

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955
Emissions code

Emissions Code

Continue Reading to Understand Emissions Codes

View full details

Features & Benefits

  • 3/8" thick 304 stainless machine flanges to prevent warping
  • CNC 304 stainless mandrel bent tubes for an accurate fit and improved flow
  • Precision formed long transition collectors and long tube design reduce backpressure and increase higher RPM horsepower


For the enthusiast who demands the best, Doug's Headers are not just components; they're a statement of excellence, a commitment to leading-edge performance, and a nod to the glory days of muscle cars and drag racing. Join the ranks of champions. Experience the unmatched quality and performance of Doug's Headers today.

Specifications

Finish Hi-Temp Black Coating
Material Steel
Design Fenderwell
Primary Tubing Diameter 1.75 IN
Collector Port Diameter 3.0 IN
Port Shape SAP
Tube Wall Thickness 16 Gauge
Flange Thickness 0.375 IN
Collector Attachment 3-Bolt Flange
EGT Port No
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Color Black
Sheen Level Matte

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.
  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

Returns & Replacements

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Reviews

Applications

Year / Make / Model 1963-1967 Chevrolet Chevy II
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Will not fit with heater.
  • Will not fit convertible models.

Year / Make / Model 1965-1967 Chevrolet Chevy II
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Will not fit with heater.
  • Will not fit convertible models.
