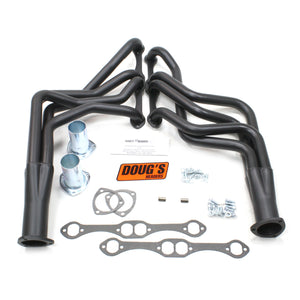

Doug's Headers D308-B 1 5/8" 4-Tube Full Length Header Chevrolet 67-81 Camaro 64-77 Chevelle/Malibu 64-77 El Camino 70-77 Monte Carlo 65-89 Passenger Car/Wagon 265-400 Chevrolet Engine Hi-Temp Black Coating

Doug's Headers D308-B 1 5/8" 4-Tube Full Length Header Chevrolet 67-81 Camaro 64-77 Chevelle/Malibu 64-77 El Camino 70-77 Monte Carlo 65-89 Passenger Car/Wagon 265-400 Chevrolet Engine Hi-Temp Black Coating

Part Number: D308-B
Skip to product information

Features & Benefits

  • 3/8" Thick machined flanges to prevent warping
  • Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
  • Heavy duty 16-gauge tubing for long life
  • Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating

Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market. This fitment is tailored for popular aftermarket engine swap kits. Doug's engine swap headers were developed to solve common fitment issues in tight spaces, making your swap process smoother. No more guesswork or modifications needed - just straightforward installations that save you time and frustration.


For the enthusiast who demands the best, Doug's Headers are not just components; they're a statement of excellence, a commitment to leading-edge performance, and a nod to the glory days of muscle cars and drag racing. Join the ranks of champions. Experience the unmatched quality and performance of Doug's Headers today.

Specifications

Finish Hi-Temp Black Coating
Material Steel
Design Full-length
Primary Tubing Diameter 1.625 Inches
Collector Port Diameter 3.0 Inches
Port Shape Oval
Tube Wall Thickness 16 Gauge
Flange Thickness 0.375 Inches
Collector Attachment 3-Bolt Flange
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Black
Sheen Level Matte

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

All Doug's headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any other discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision,improper installation, off-road use, road hazards, the use of exhaust insulting wrap or like products or rust occurring after installation, is not covered by the warranty. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the original sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

Doug's Headers D308-B 1 5/8" 4-Tube Full Length Header Chevrolet 67-81 Camaro 64-77 Chevelle/Malibu 64-77 El Camino 70-77 Monte Carlo 65-89 Passenger Car/Wagon 265-400 Chevrolet Engine Hi-Temp Black Coating

Doug's Headers D308-B 1 5/8" 4-Tube Full Length Header Chevrolet 67-81 Camaro 64-77 Chevelle/Malibu 64-77 El Camino 70-77 Monte Carlo 65-89 Passenger Car/Wagon 265-400 Chevrolet Engine Hi-Temp Black Coating

Part Number: D308-B
Regular price $738.45
Sale price $738.45 Regular price

Part Number: D308-B
Does This part fit My vehicle?
View All Vehicle Applications
Product details

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955
Emissions code

EMISSIONS CODE

What does this emissions code mean?

View full details

Features & Benefits

  • 3/8" Thick machined flanges to prevent warping
  • Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
  • Heavy duty 16-gauge tubing for long life
  • Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating

Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market. This fitment is tailored for popular aftermarket engine swap kits. Doug's engine swap headers were developed to solve common fitment issues in tight spaces, making your swap process smoother. No more guesswork or modifications needed - just straightforward installations that save you time and frustration.


For the enthusiast who demands the best, Doug's Headers are not just components; they're a statement of excellence, a commitment to leading-edge performance, and a nod to the glory days of muscle cars and drag racing. Join the ranks of champions. Experience the unmatched quality and performance of Doug's Headers today.

Specifications

Finish Hi-Temp Black Coating
Material Steel
Design Full-length
Primary Tubing Diameter 1.625 Inches
Collector Port Diameter 3.0 Inches
Port Shape Oval
Tube Wall Thickness 16 Gauge
Flange Thickness 0.375 Inches
Collector Attachment 3-Bolt Flange
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Black
Sheen Level Matte

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

All Doug's headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any other discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision,improper installation, off-road use, road hazards, the use of exhaust insulting wrap or like products or rust occurring after installation, is not covered by the warranty. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the original sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

Applications

Year / Make / Model 1965-1969 Chevrolet Biscayne
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1965-1967 Chevrolet Biscayne
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968 Chevrolet Biscayne
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1972 Chevrolet Biscayne
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1972 Chevrolet Biscayne
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1972 Chevrolet Brookwood
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969 Chevrolet Brookwood
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1971-1972 Chevrolet Brookwood
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1972 Chevrolet Brookwood
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968 Chevrolet Chevy II
Engine Type V8
Engine Size(s) Cubic Inches: 307, 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1972 Chevrolet Kingswood
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969 Chevrolet Kingswood
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1971-1972 Chevrolet Kingswood
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1972 Chevrolet Kingswood
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1964-1968 Chevrolet Chevelle
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1964-1967 Chevrolet Chevelle
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968-1973 Chevrolet Chevelle
Engine Type V8
Engine Size(s) Cubic Inches: 307, 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1973 Chevrolet Chevelle
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1965-1969 Chevrolet Bel Air
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1965-1967 Chevrolet Bel Air
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968 Chevrolet Bel Air
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1975 Chevrolet Bel Air
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1975 Chevrolet Bel Air
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1967-1981 Chevrolet Camaro
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts
  • Does not fit 67-69 Camaro with A/C.

Year / Make / Model 1967-1969 Chevrolet Camaro
Engine Type V8
Engine Size(s) Cubic Inches: 302, 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts
  • Does not fit 67-69 Camaro with A/C.

Year / Make / Model 1969-1973 Chevrolet Camaro
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts
  • Does not fit 67-69 Camaro with A/C.

Year / Make / Model 1976-1981 Chevrolet Camaro
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1980-1981 Chevrolet Camaro
Engine Type V8
Engine Size(s) Cubic Inches: 267
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1966-1969 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1966-1967 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968-1969 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1971-1973 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1986-1989 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1976 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1975-1989 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1977-1989 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1980-1982 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 267
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Must use non-shell type motor mounts

Year / Make / Model 1964-1969 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1964-1967 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968-1977 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968-1973 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1976 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1976-1977 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1965-1969 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1965-1967 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 283
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1968-1969 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1971-1973 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1985 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1976 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1977-1985 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1980-1982 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 267
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.

Year / Make / Model 1973-1976 Chevrolet Laguna
Engine Type V8
Engine Size(s) Cubic Inches: 350, 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1976 Chevrolet Laguna
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1964-1967 Chevrolet Malibu
Engine Type V8
Engine Size(s) Cubic Inches: 283, 327
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1973-1977 Chevrolet Malibu
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1973-1976 Chevrolet Malibu
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1973 Chevrolet Malibu
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1976-1977 Chevrolet Malibu
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1977 Chevrolet Monte Carlo
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1981-1984 Chevrolet Monte Carlo
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1970-1976 Chevrolet Monte Carlo
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1976-1988 Chevrolet Monte Carlo
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1979-1982 Chevrolet Monte Carlo
Engine Type V8
Engine Size(s) Cubic Inches: 267
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1979 Chevrolet Nova
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1969-1973 Chevrolet Nova
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts

Year / Make / Model 1976-1979 Chevrolet Nova
Engine Type V8
Engine Size(s) Cubic Inches: 305
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts

Year / Make / Model 1971-1977 GMC Sprint
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts.

Year / Make / Model 1971-1973 GMC Sprint
Qualifier Pump Mounts on Wiper Motor
Engine Type V8
Engine Size(s) Cubic Inches: 307
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts.

Year / Make / Model 1971-1972 GMC Sprint
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts.

Year / Make / Model 1974-1976 GMC Sprint
Engine Type V8
Engine Size(s) Cubic Inches: 400
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608.
  • Must use non-shell type motor mounts.

Year / Make / Model 1967-1981 Pontiac Firebird
Engine Type V8
Notes
  • Fits most angle plug heads.
  • Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.
  • Requires removal or modification of locking steering columns if equipped.
  • Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
  • Must use non-shell type motor mounts
  • Does not fit 67-69 Firebird with A/C.
  • For use with Chevtolet 265-400 Egine Swap

You may also like

RECENTLY VIEWED PRODUCTS
