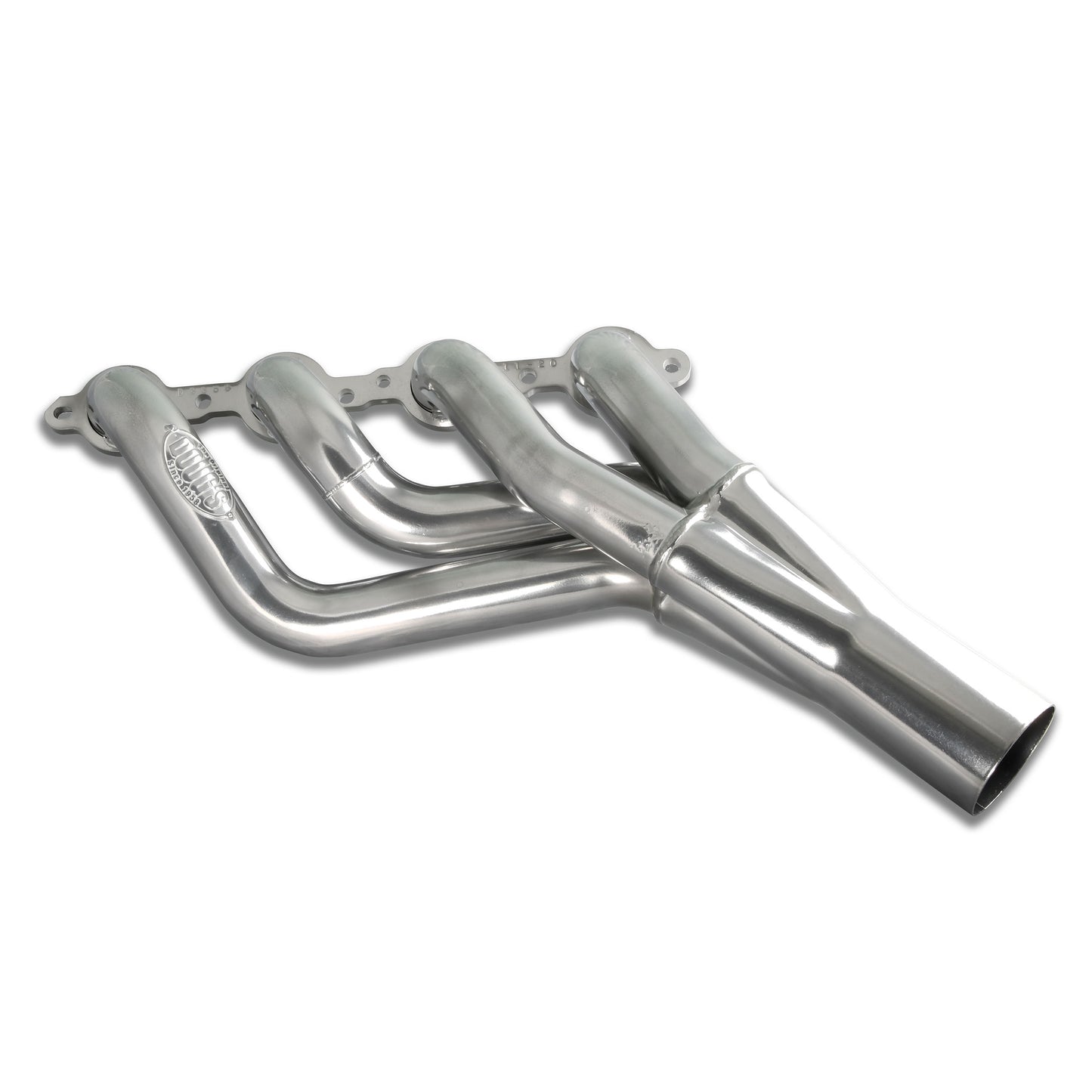

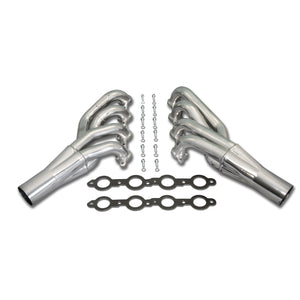

1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header with Metallic Ceramic Coating

1970-81 GM F-Body LS Engine Swap 1 7/8" Mid-Length Header with Metallic Ceramic Coating

Part Number: D3358
Skip to product information

Highlights

Mid-Length Headers, often called Clippsters, are engineered to provide superior performance gains over Manifold Replacements or Block Hugger style headers. These headers enhance your vehicle’s horsepower and torque while preserving ground clearance for cars with a lowered stance and trucks where long tube headers may hang to low.

This fitment is tailored for popular aftermarket engine swap kits. Doug's engine swap headers were developed to solve common fitment issues in tight spaces, making your swap process smoother. No more guesswork or modifications needed - just straightforward installations that save you time and frustration.

  • For LS Engine Swaps. See complete list of vehicles on the product page under view all applications.
  • 3/8” thick machined flanges to prevent warping
  • CNC mandrel bent tubes for an accurate fit and improved flow
  • Durable 16 gauge tubing
  • 1 7/8" Primary Tubing Diameter
  • 3" Collector Port Diameter
  • Round Port Shape
  • Metallic Ceramic Coating
Why pick Doug's Metallic Ceramic Coating finish?

Our Metallic Ceramic Coating protects and extends the life of headers by creating a thermal barrier which significantly lowers under hood temperatures and protects the substrate metal from thermal fatigue. After the Metallic Ceramic Coating is applied, it is polished with a vibratory finishing process that produces a high luster aluminum appearance. The polishing process compresses and activates the coating, creating a surface which is harder and 60% more corrosion resistant than an unpolished surface.

Specifications

Finish Metallic Ceramic Coated
Material Steel
Design Mid Length
Primary Tubing Diameter 1.875 Inches
Collector Port Diameter 3.0 Inches
Port Shape Round
Tube Wall Thickness 16 Gauge
Flange Thickness 0.375 Inches
Collector Attachment Slip fit
Oxygen Sensor Port No
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Grade Type Performance
Color Silver
Sheen Level Semi-Gloss

Installation instructions

Instruction Manual
Installation Instructions
