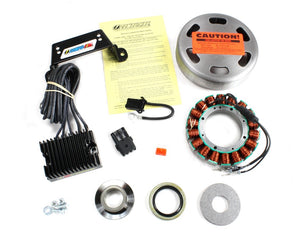

Compu-Fire 55560 - Charging System Kit with Vented Rotor for 81-99 Evo Harley® Models

+ -
Charging System Kit with Vented Rotor
  • 3Phase Charging System
  • Download Instruction Manual

3Phase Charging System

The Compu-Fire 40 amp 3Phase charging systems provide 25 amps at idle and 40 amps continuously above 2800 RPM. The unique narrow rotor and stator combination fits Softail/Dyna primary cases and the voltage regulator bolts on without any fram modifications. The precision balanced vented rotor keeps the stator cooler in closed primary systems to maintain maximum output under all high current draw conditions. The large flanged seal spacer provides maximum support for the rotor and the voltage regulator output is calibrated to 14.25 volts from idle on up.

Download Instruction Manual

Instruction Manual
Instruction Manual

Download PDF
