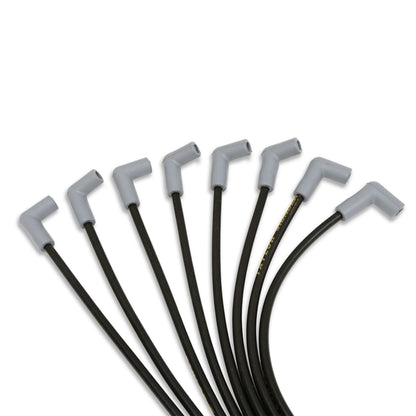

Chevy Big Block Race Fit 8.2mm Thundervolt Spark Plug Wire Set with Under Headers HEI Fitment (Available in 3 Colors)

Chevy Big Block Race Fit 8.2mm Thundervolt Spark Plug Wire Set with Under Headers HEI Fitment (Available in 3 Colors)

Part Number: 86002
Skip to product information

Features & Benefits

8.2mm ThunderVolt wire sets outperform the competition in looks and performance at an affordable price. They are purpose-built for street & strip, off road, street rod, and custom car applications.

Race Fit wires arrive cut to exact length and fully terminated — boots and terminals installed on both ends, ready to drop straight in. Note that lengths are optimized for the chosen routing path; if you're running a fixed loom or an alternate wire path, fitment may vary. An extra-long coil wire is also included, one end fully prepped and the other left open so you can trim to length and finish with the boot and terminal to your high-performance coil of choice.

  • For Chevy Big Block Engines; sized to be routed under the headers and terminated for HEI distributors
  • Spark Plug Wire Lengths (inches): 8 cylinders - 45, 42, 38, 38, 37, 34, 31, 27, coil 36
  • 8.2mm outer silicone jacket is heat resistant to 600° Fahrenheit
  • Silicone inner core provides added heat protection and superior flexibility throughout its lifetime
  • 40 ohms per foot
  • Highly conductive stainless steel spiral wound core
  • RFI / EMI suppression for applications with CD or electronic ignitions, on board computers, stereos or pit radios
  • Silicone boots protect against high exhaust temps
  • Double spring lock spark plug terminals

Specifications

Wire Series Thundervolt
Insulation Color Black
Resistance 40 ohm/ft
Outside Diameter 8.2 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 8.2 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Grey
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions
