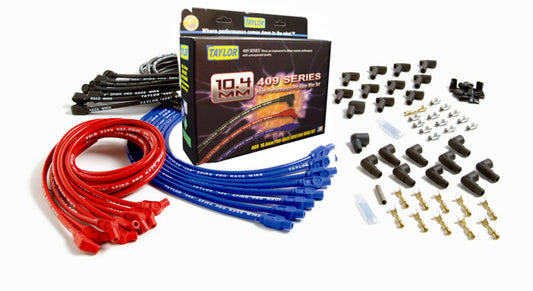

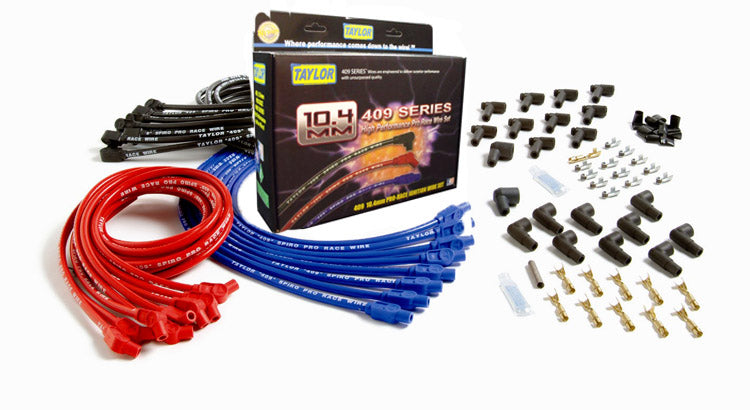

LS Engines Universal 10.4mm 409 Series Spark Plug Wire Sets (Available in 2 Colors)
LS Engines Universal 10.4mm 409 Series Spark Plug Wire Sets (Available in 2 Colors)
Features & Benefits
Features & Benefits

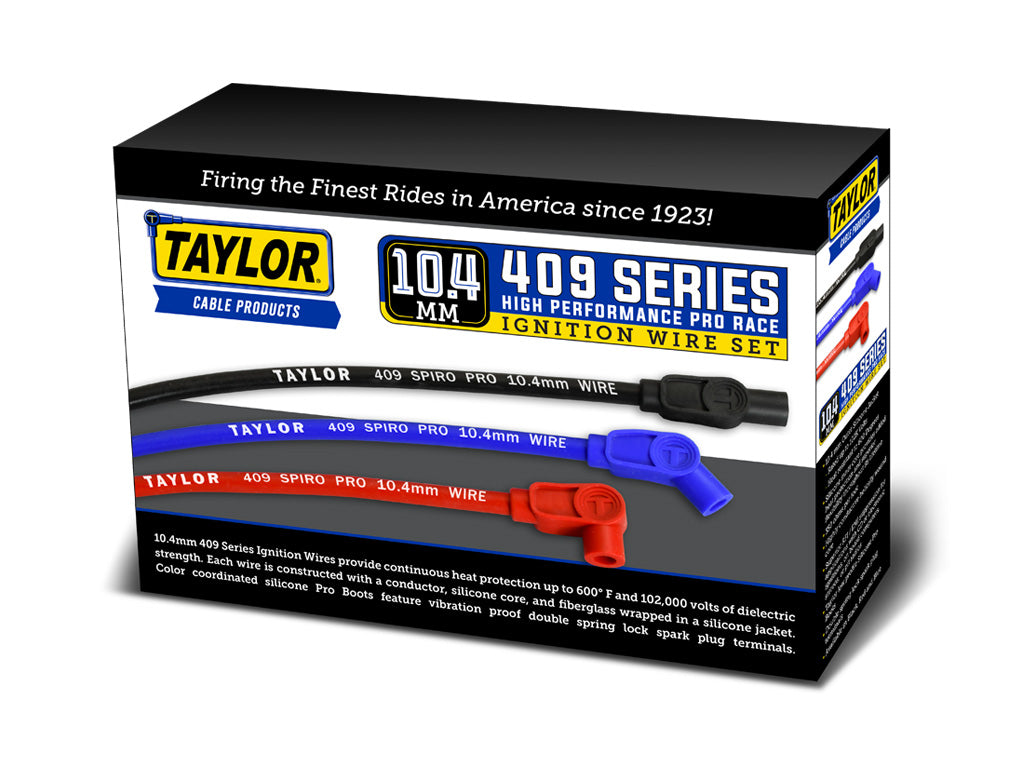

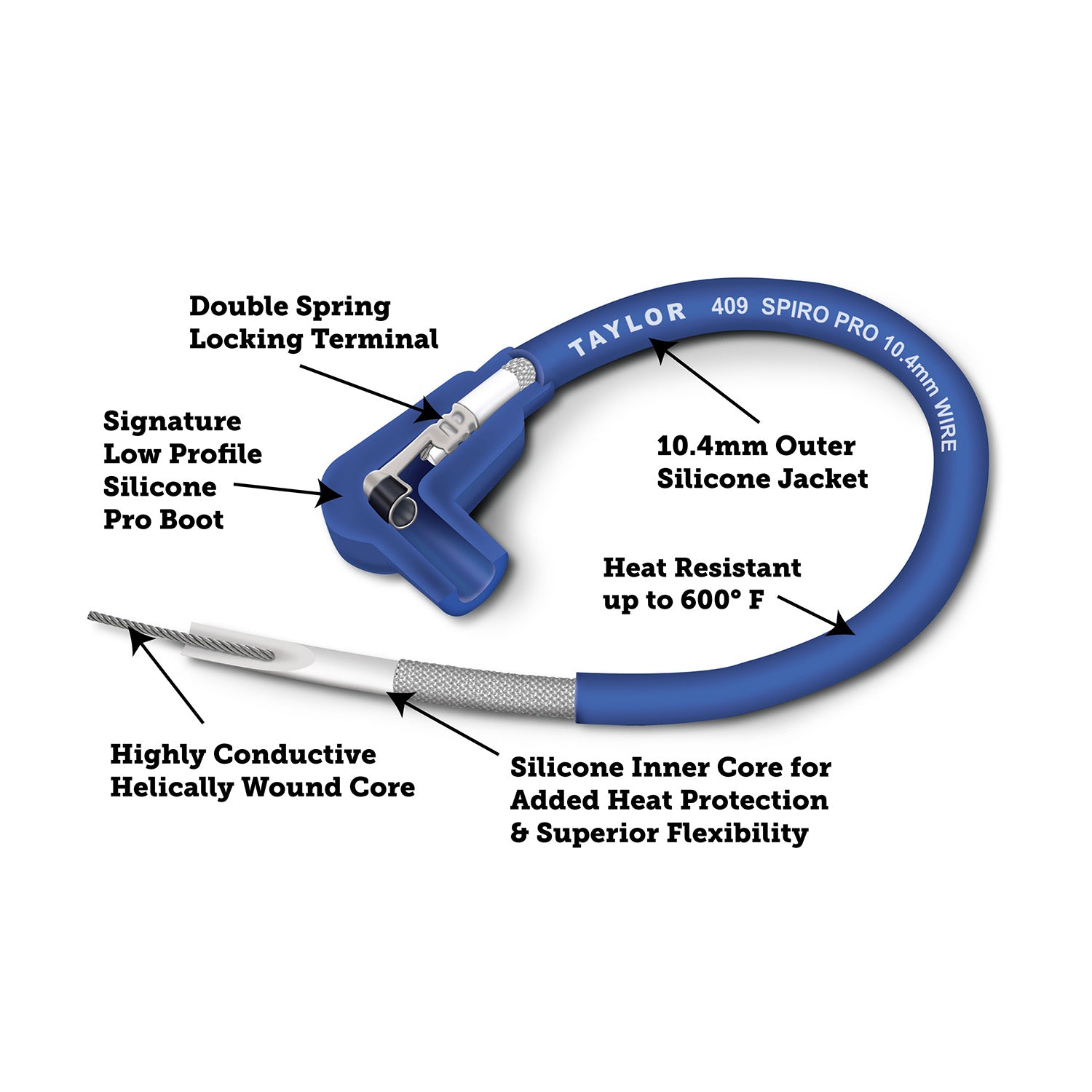

10.4mm 409 Series Ignition Wires provide continuous heat protection up to 600° F and 102,000 volts of dielectric strength.
- Perfect for coil relocation and custom header applications
- 350 Ohm/ft
- 10.4mm
- Available in Black or Red
- Available in 135° spark plug boot angles
- 36” Wires and multiple spark plug boot choices allow the perfect fit
- Spark Plug end is assembled
- Universal Fit sets and will require cutting to fit, terminating, and booting the distributor end
Specifications
Specifications
| Wire Series | 409 |
|---|---|
| Insulation Color | Black or Red |
| Resistance | 350 ohm/ft |
| Spark Plug End Boot Degree | 135 Degrees |
| Outside Diameter | 10.4 Millimeters |
| Noise Suppression Type | Yes |
| Insulation Outside Diameter | 10.4 Millimeters |
| Insulation Material | Silicone |
| Core Material | Stainless Steel Spirol Wound Suppression |
| Universal Or Specific Fit | Universal |
| Spark Plug Boot Material | Silicone |
| Spark Plug End Boot Color | Black |
| Distributor Coil End Boot Degree | 135 Degree |
| Distributor Coil End Boot Type | Female/Socket |
| Distributor Coil End Terminal Type | Female/Socket |
| Grade Type | Performance |
| Wire Separators Included | No |
Installation instructions
Installation instructions
Shipping & Delivery
Shipping & Delivery
Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.
| Shipping Class | Order Value | Shipping Cost |
| UPS Ground | $0 - 49.99 | $6.99 flat rate |
| UPS Ground | $50 - 108.99 | $7.49 flat rate |
| UPS Ground | $109+ | Free |
- At this time, PerTronix does not offer expedited shipping options from our website.
- All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
-
PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.
- Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!
Returns, Replacements & Warranty
Returns, Replacements & Warranty
Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.
Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.
For complete details, visit our Returns page.
Warranty
Reviews
Reviews
LS Engines Universal 10.4mm 409 Series Spark Plug Wire Sets (Available in 2 Colors)
LS Engines Universal 10.4mm 409 Series Spark Plug Wire Sets (Available in 2 Colors)
- Free shipping on $99+ orders in lower 48 states
- 90-day return policy
- We’re here to help! Call us on 909-599-5955
EMISSIONS CODE
What does this emissions code mean?
Similar Products
LS Engines Universal 10.4mm 409 Series Spark Plug Wire Sets (Available in 2 Colors)
{{ title }}
Features & Benefits
Features & Benefits
10.4mm 409 Series Ignition Wires provide continuous heat protection up to 600° F and 102,000 volts of dielectric strength.
- Perfect for coil relocation and custom header applications
- 350 Ohm/ft
- 10.4mm
- Available in Black or Red
- Available in 135° spark plug boot angles
- 36” Wires and multiple spark plug boot choices allow the perfect fit
- Spark Plug end is assembled
- Universal Fit sets and will require cutting to fit, terminating, and booting the distributor end
Specifications
Specifications
| Wire Series | 409 |
|---|---|
| Insulation Color | Black or Red |
| Resistance | 350 ohm/ft |
| Spark Plug End Boot Degree | 135 Degrees |
| Outside Diameter | 10.4 Millimeters |
| Noise Suppression Type | Yes |
| Insulation Outside Diameter | 10.4 Millimeters |
| Insulation Material | Silicone |
| Core Material | Stainless Steel Spirol Wound Suppression |
| Universal Or Specific Fit | Universal |
| Spark Plug Boot Material | Silicone |
| Spark Plug End Boot Color | Black |
| Distributor Coil End Boot Degree | 135 Degree |
| Distributor Coil End Boot Type | Female/Socket |
| Distributor Coil End Terminal Type | Female/Socket |
| Grade Type | Performance |
| Wire Separators Included | No |
Installation instructions
Installation instructions
Shipping & Delivery
Shipping & Delivery
Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.
| Shipping Class | Order Value | Shipping Cost |
| UPS Ground | $0 - 49.99 | $6.99 flat rate |
| UPS Ground | $50 - 108.99 | $7.49 flat rate |
| UPS Ground | $109+ | Free |
- At this time, PerTronix does not offer expedited shipping options from our website.
- All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
-
PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.
- Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!
Returns, Replacements & Warranty
Returns, Replacements & Warranty
Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.
Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.
For complete details, visit our Returns page.
Warranty
Reviews
Reviews
EMISSIONS PLACARD
PerTronix Performance Ignition and Exhaust Brands use a voluntary product identification program whereby all emission sensitive products can be identified by placing numbered labels in product packaging and listing corresponding numeric codes next to each part number. The corresponding numbers and explanations are as follows:
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This product is Legal for use on Pre-PoIIution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufactured's Application Guide and lnstallation Instructions.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is legal for Street or Off Highway use in 49 States. This product meets the EPA Anti Tampering Policy for Reasonable Basis that allows the stated vehicle to operate within the legal emissions standards in states that do not require а California EO. This product in Not Legal for Street or Off Highway use in California.
PERTRONIX PERFORMANCE BRANDS EMISSIONS CODES
This Product is Certified by the Manufacturer as being а Non-Emissions Related part per CARB and EPA regulations and therefore does not require emissions certification or CARB EO and is legal in all 50 states.
You may also like
Applications
Universal product.
