Taylor Cable 13630 409 Spiro-Pro Motorcycle blue 16/7in custom90

Taylor Cable 13630 409 Spiro-Pro Motorcycle blue 16/7in custom90

Part Number: 13630
Skip to product information

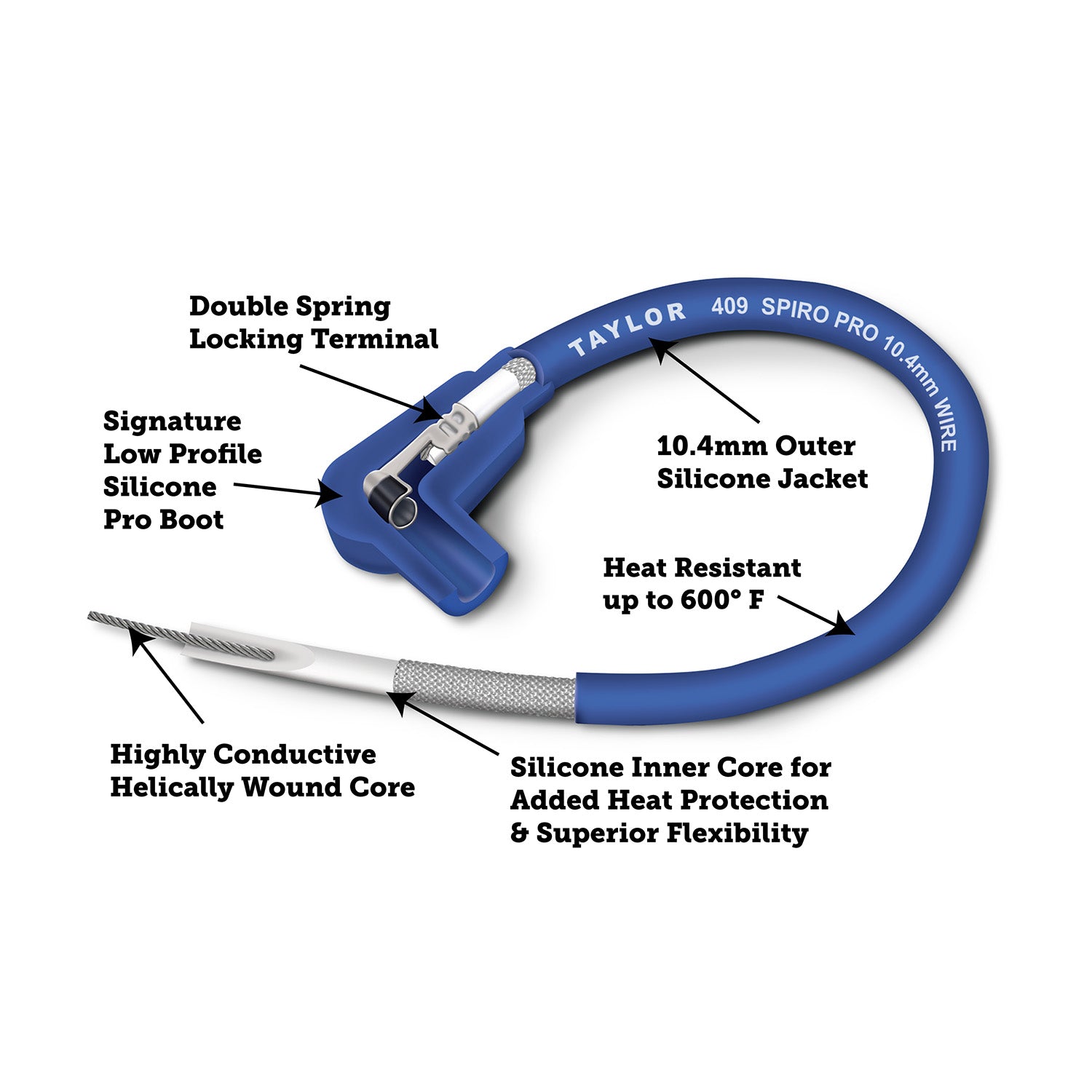

Features & Benefits

  • 350 ohms per foot
  • 10.4 mm Outer Silicone Jacket
  • Highly conductive helically wound core
  • Silicone inner core provides added heat protection and superior flexibility throughout its lifetime.

10.4mm 409 Series Ignition Wires provide continuous heat protection up to 600° F and 120,000 volts of dielectric strength. Each wire is constructed with a conductor, silicone core and fiberglass wrapped in a silicone jacket. Color coordinated silicone Pro Boots feature vibration proof double spring lock spark plug terminals.


For over 90 years, Taylor Cable Products have been the top choice of racers and enthusiasts for its value and high-performance features. Taylor Cable is an icon of quality and customer satisfaction in the automotive performance and racing markets. We are proud to have our Ignition Wire Sets firing some of the fastest race and street vehicles in the world.

Specifications

Wire Series 409
Insulation Color Blue
Resistance 350 ohm/ft
Spark Plug End Boot Degree 90 Degrees
Outside Diameter 10.4 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 10.4 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Blue
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Taylor Spiro Pro, ThunderVolt, StreetThunder and High Energy Spark Plug Wires - Lifetime

Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

Taylor Cable 13630 409 Spiro-Pro Motorcycle blue 16/7in custom90

Taylor Cable 13630 409 Spiro-Pro Motorcycle blue 16/7in custom90

Part Number: 13630
Regular price $27.95
Sale price $27.95 Regular price

Part Number: 13630
Does This part fit My vehicle?
View All Vehicle Applications
Product details

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955

Similar Products

Emissions code

EMISSIONS CODE

What does this emissions code mean?

View full details

Features & Benefits

  • 350 ohms per foot
  • 10.4 mm Outer Silicone Jacket
  • Highly conductive helically wound core
  • Silicone inner core provides added heat protection and superior flexibility throughout its lifetime.

10.4mm 409 Series Ignition Wires provide continuous heat protection up to 600° F and 120,000 volts of dielectric strength. Each wire is constructed with a conductor, silicone core and fiberglass wrapped in a silicone jacket. Color coordinated silicone Pro Boots feature vibration proof double spring lock spark plug terminals.


For over 90 years, Taylor Cable Products have been the top choice of racers and enthusiasts for its value and high-performance features. Taylor Cable is an icon of quality and customer satisfaction in the automotive performance and racing markets. We are proud to have our Ignition Wire Sets firing some of the fastest race and street vehicles in the world.

Specifications

Wire Series 409
Insulation Color Blue
Resistance 350 ohm/ft
Spark Plug End Boot Degree 90 Degrees
Outside Diameter 10.4 Millimeters
Noise Suppression Type Yes
Insulation Outside Diameter 10.4 Millimeters
Insulation Material Silicone
Core Material Stainless Steel Spirol Wound Suppression
Universal Or Specific Fit Specific
Spark Plug Boot Material Silicone
Spark Plug End Boot Color Blue
Grade Type Performance
Wire Separators Included No

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Taylor Spiro Pro, ThunderVolt, StreetThunder and High Energy Spark Plug Wires - Lifetime

Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

Applications

Year / Make / Model 1965-1966 Harley-Davidson FLFB
Notes

Year / Make / Model 1968-1969 Harley-Davidson FLFB
Notes

Year / Make / Model 1970-1985 Harley-Davidson FLH Electra Glide
Notes

Year / Make / Model 1965-1969 Harley-Davidson FLHB
Notes

Year / Make / Model 1979-1981 Harley-Davidson FLHC Electra Glide Classic
Notes

Year / Make / Model 1970-1972 Harley-Davidson FLHF
Notes

Year / Make / Model 1965-1969 Harley-Davidson FLHFB
Notes

Year / Make / Model 1980-1981 Harley-Davidson FLHS Electra Glide Sport
Notes

Year / Make / Model 1984 Harley-Davidson FLHS Electra Glide Sport
Notes

Year / Make / Model 1984-1985 Harley-Davidson FLHX Electra Glide Special
Notes

Year / Make / Model 1980-1983 Harley-Davidson FLT Tour Glide
Notes

Year / Make / Model 1971-1978 Harley-Davidson FX Super Glide
Notes

Year / Make / Model 1980-1982 Harley-Davidson FXB Sturgis
Notes

Year / Make / Model 1992 Harley-Davidson FXDB-D Dyna Glide Daytona
Notes

Year / Make / Model 1991 Harley-Davidson FXDB-S Dyna Glide Sturgis
Notes

Year / Make / Model 1983 Harley-Davidson FXDG Disc Glide
Notes

Year / Make / Model 1994-1998 Harley-Davidson FXDS-Conv Dyna Convertible
Notes

Year / Make / Model 1974-1984 Harley-Davidson FXE Super Glide
Notes

Year / Make / Model 1979-1981 Harley-Davidson FXEF Fat Bob
Notes

Year / Make / Model 1985 Harley-Davidson FXEF Fat Bob
Notes

Year / Make / Model 1982-1983 Harley-Davidson FXR Super Glide II
Notes

Year / Make / Model 1984 Harley-Davidson FXRDG Disc Glide
Notes

Year / Make / Model 1982-1985 Harley-Davidson FXRS Low Glide
Notes

Year / Make / Model 1983-1985 Harley-Davidson FXRT Sport Glide
Notes

Year / Make / Model 1977-1982 Harley-Davidson FXS Low Rider
Notes

Year / Make / Model 1983-1985 Harley-Davidson FXSB Low Rider - Belt
Notes

Year / Make / Model 1980-1985 Harley-Davidson FXWG Wide Glide
Notes

Year / Make / Model 1965-1979 Harley-Davidson XLCH
Notes

Year / Make / Model 1977-1978 Harley-Davidson XLCR Cafe Racer
Notes

Year / Make / Model 1972-1985 Harley-Davidson XLH1000
Notes

Year / Make / Model 1965-1971 Harley-Davidson XLH900
Notes

Year / Make / Model 1978-1985 Harley-Davidson XLS Roadster
Notes

Year / Make / Model 1977-1978 Harley-Davidson XLT
Notes

Year / Make / Model 1983-1985 Harley-Davidson XLX 1000
Notes

Year / Make / Model 1994 Harley-Davidson FLSTN Heritage Softail Special
Notes

Year / Make / Model 1981-1985 Harley-Davidson FLTC Tour Glide Classic
Notes
