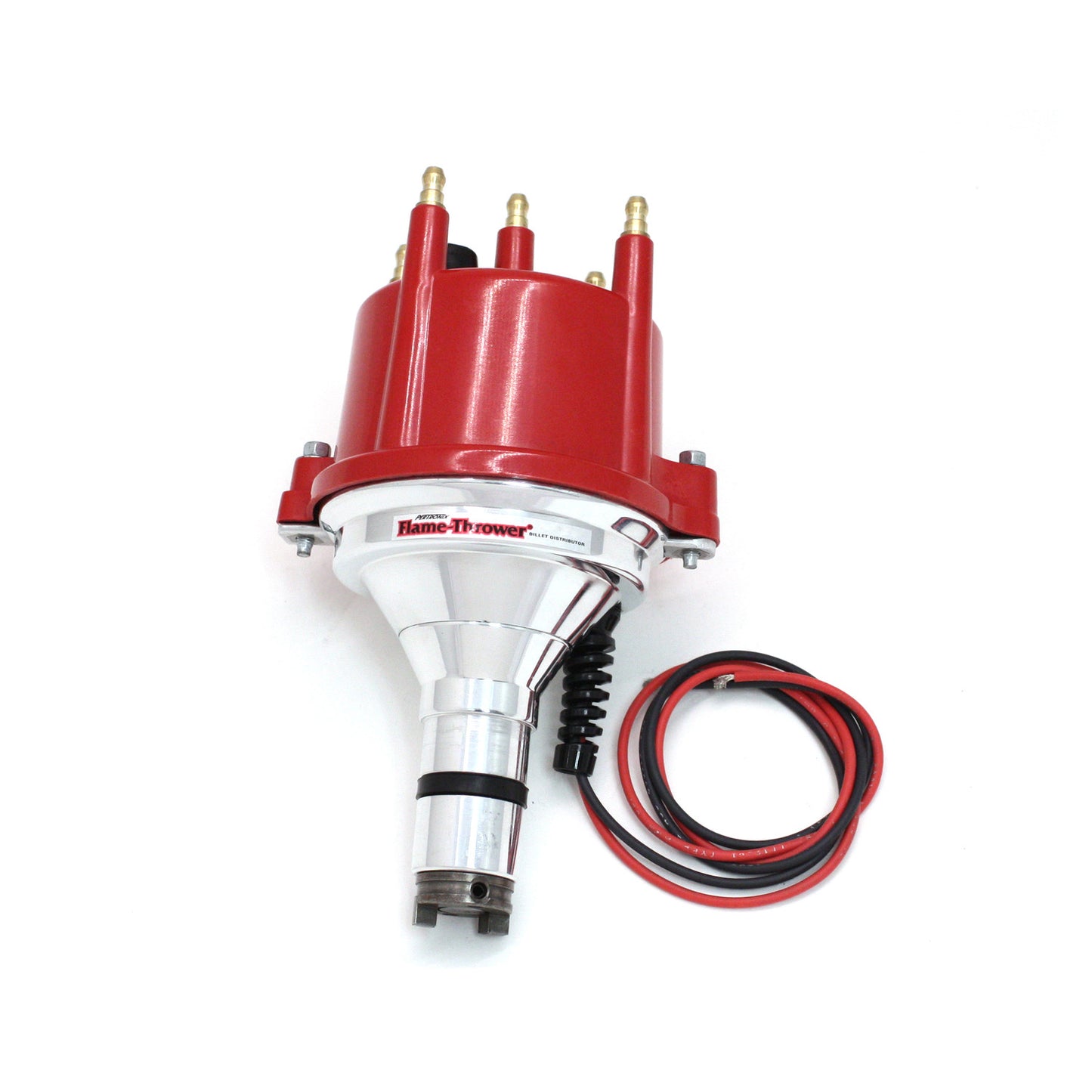

PerTronix D7180811 Flame-Thrower Electronic Distributor Billet VW Type 1 Engine Plug and Play with Ignitor III Non Vacuum Red Cap
D7180811

PerTronix D7180811 Flame-Thrower Electronic Distributor Billet VW Type 1 Engine Plug and Play with Ignitor III Non Vacuum Red Cap

Part Number: D7180811
UPC: 694342550981

$279.87
+ -
3

Emissions Code

Continue reading

  • Highlights
  • Additional Information
  • Download Instruction Manual

Highlights

  • Plug n' Play billet distributors are designed for maximum ignition performance at a price you can afford
  • Our Billet I3 distributors ship with Ignitor III multi-spark rev limiting modules.
  • Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
  • Each billet distributor is hand polished and buffed to a high luster Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
  • Adjustable mechanical advance with proprietary limiting function permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance.

Additional Information

Plug n' Play billet distributors are designed for maximum ignition performance at a price you can afford. Our I3 billet distributors ship with the all NEW Ignitor III multi-spark rev limiting modules. Replace your outdated points, electronic distributor or bulky HEIs with this performance proven system. Simply install the distributor in the engine, connect two wires and start it up! For even more performance, consider adding one of our compatible Flame-Thrower III coils for increased spark energy and higher RPM potential. Available in Flame-Thrower III canister style coils as well as our New HC and HV E-core style coils. FEATURES • Multiple sparks thru the entire RPM range. • Integrated digital REV limiter with LED feedback for precise RPM setting. • Memory safe function stores settings eliminating unintended changes to Rev limit. • Adaptive dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance. • Peak current level is reached just prior to spark for maximum energy without heat build-up, increasing coil performance and module reliability. • Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay. • Senses startup and increases energy for quicker, easier starting. • Thermal clad surface mount construction for superior reliability. • Built-in reverse polarity and over current protection shuts down the system, preventing component damage. • Not compatible with CD or Multi-Spark boxes.

PERTRONIX FLAME-THROWER BILLET PERFORMANCE DISTRIBUTOR FEATURING IGNITOR III ELECTRONICS FOR TYPE 1 VOLKSWAGEN ENGINES. 12-VOLT NEGATIVE GROUND, NON VACUUM ADVANCE, & RED MALE STYLE CAP. MUST USE FLAME-THROWER SPARK PLUG SETS #8042VW, 8043VW, OR 8044VW

Download Instruction Manual

Instruction Manual
Instruction Manual

Download PDF
