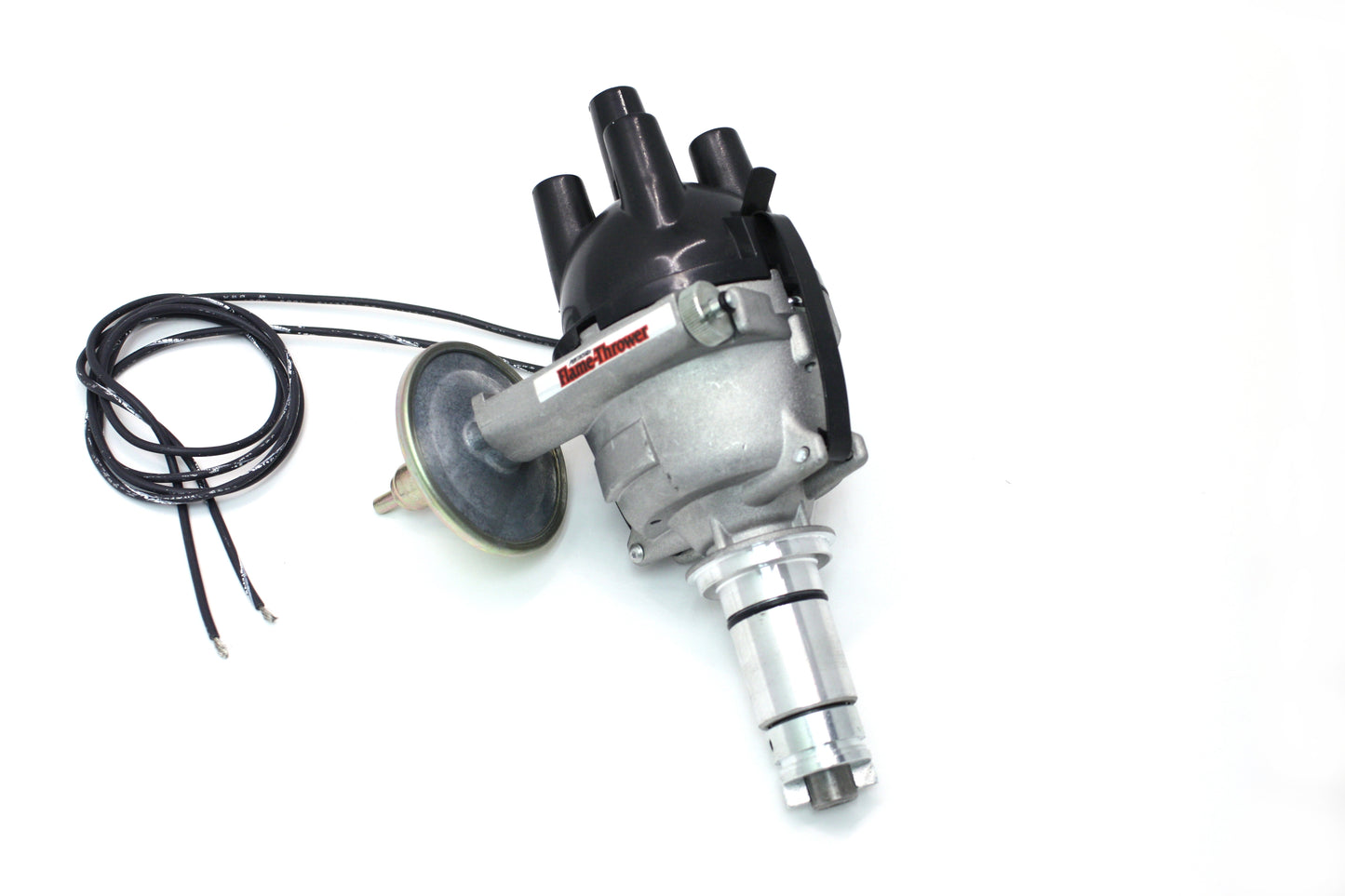

PerTronix D172401 Flame-Thrower Electronic Distributor Cast British 25D 4cyl 12V Pos Top Exit Plug and Play with Ignitor Vacuum Advance
PerTronix D172401 Flame-Thrower Electronic Distributor Cast British 25D 4cyl 12V Pos Top Exit Plug and Play with Ignitor Vacuum Advance
Highlights
Highlights
- All new lightweight cast aluminum housings.
- Tailored advance curve for optimal performance and drivability.
- Integrated Ignitor electronic ignition delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life.
- Rotating cobalt magnets trigger a Hall Effect integrated circuit which enables precise timing.
- High dielectric strength cap with brass terminals.
Additional Information
Additional Information
Performance Distributors for British Engines Replace your worn out Lucas 25D distributor with a distributor that will deliver the performance you demand. Our Flame-Thrower performance distributors use all new castings modeled after the original Lucas 25D distributor. Each distributor is then precision machined for an exact fit. Four cylinder applications are available with top or our new side exit caps. FEATURES • All new lightweight cast aluminum housings. • Tailored advance curve for optimal performance and drivability. • Integrated Ignitor electronic ignition delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life. • Rotating cobalt magnets trigger a Hall Effect integrated circuit which enables precise timing. • High dielectric strength cap with brass terminals. • Balanced rotor with overmolded brass contact. • Top or side exit caps available. • Available for 12-volt negative and positive ground systems. • Warranty: 30 months electronics / limited 1 year mechanical.
PERTRONIX FLAME-THROWER "STOCK-LOOK" DISTRIBUTOR FEATURING ORIGINAL IGNITOR ELECTRONICS FOR BRITISH A & B 4-CYLINDER ENGINES. REPLACES LUCAS 25D DISTRIBUTORS. 12-VOLT POSITIVE EARTH, WITH VACUUM ADVANCE, & TOP EXIT CAP.
Specifications
Specifications
Advance Type | Vacuum and mechanical |
---|---|
Trigger Type | Hall Effect |
Cap Terminal Gender | Female |
Cap Color | Black |
Adjustable Collar | No |
Computer Controlled Compatible | No |
Distributor Cap Included | Yes |
Ignition Module Included | Yes |
Ignition Box Required | No |
Ignition Coil Included | No |
Ignition Rotor Included | Yes |
Clamp Hardware Included | No |
Clamp Included | No |
Distributor Gear Included | Yes |
Gear Material | Steel |
Mechanical Tach Drive Provision | No |
Coil Wire Included | No |
Housing Material | Aluminum |
Housing Finish | Natural |
Housing Color | Natural |
Shaft Material | Steel |
Shaft Diameter | .490 Inches |
Shaft Color | Natural |
Connector Type | Unsealed |
Grade Type | Performance |
Marine Approved | No |
