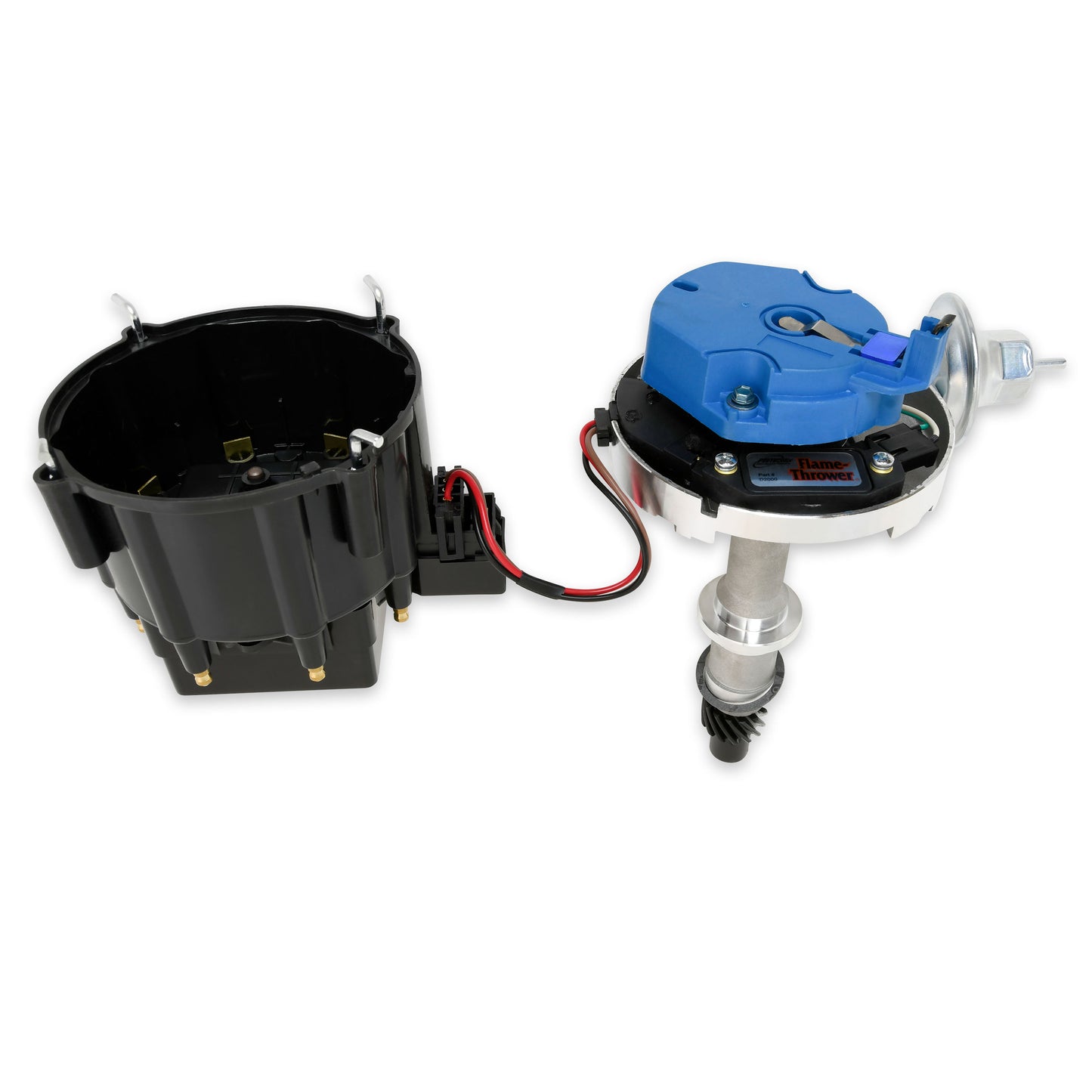

PerTronix D1200 Flame-Thrower Distributor HEI Pontiac 301-455 Black Cap

PerTronix D1200 Flame-Thrower Distributor HEI Pontiac 301-455 Black Cap

Part Number: D1200 / UPC 694342006280
Skip to product information

Product Info

  • New lightweight aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)
  • High dielectric strength cap with brass terminals and low resistance center coil brush.

Highlights

  • New lightweight aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)
  • High dielectric strength cap with brass terminals and low resistance center coil brush.

Additional Information

STREET / STRIP HEI distributors Our HEI distributors are built from the ground up with all new components. We have engineered a special high energy module and coil combination that operates without misfires beyond 7500 RPM. That's nearly 3000 RPM higher than most stock HEI distributors. Flame-Thrower HEI distributor produce 67% more energy with a 45% faster spark breakdown time when compared to the stock HEI. This means twice the energy to the spark plugs. Our tests show that with these improvements wider plug gaps can be used resulting in an increasing flame kernel growth for more efficient combustion. FEATURES • New lightweight aluminum alloy housing. • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life. • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation. • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available) • High dielectric strength cap with brass terminals and low resistance center coil brush. • Balanced rotor with nylon screws prevent arcing and reduce vibration at high RPMs. • Adjustable vacuum advance canister and high performance advance curve. • Precision machined chromoly advance weights and center plate eliminate erratic timing. • Meets stringent automobile susceptibility, vibration and shock requirements. • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-23) • Limited One Year Warranty.

Download instruction manual

Instruction Manual
Instruction Manual

Download PDF

Reviews

PerTronix D1200 Flame-Thrower Distributor HEI Pontiac 301-455 Black Cap

PerTronix D1200 Flame-Thrower Distributor HEI Pontiac 301-455 Black Cap

Part Number: D1200 / UPC 694342006280
Regular price $299.95
Sale price $299.95 Regular price

Part Number: D1200 / UPC 694342006280
Notify me when this item is back in stock
Input your email address and we'll let you know when it's back Please enter a valid email address to be notified. Success! We will notify you when this product is back in stock!.
Emissions code

Emissions Code

Continue Reading to Understand Emissions Codes

View full details

Product Info

  • New lightweight aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)
  • High dielectric strength cap with brass terminals and low resistance center coil brush.

Highlights

  • New lightweight aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)
  • High dielectric strength cap with brass terminals and low resistance center coil brush.

Additional Information

STREET / STRIP HEI distributors Our HEI distributors are built from the ground up with all new components. We have engineered a special high energy module and coil combination that operates without misfires beyond 7500 RPM. That's nearly 3000 RPM higher than most stock HEI distributors. Flame-Thrower HEI distributor produce 67% more energy with a 45% faster spark breakdown time when compared to the stock HEI. This means twice the energy to the spark plugs. Our tests show that with these improvements wider plug gaps can be used resulting in an increasing flame kernel growth for more efficient combustion. FEATURES • New lightweight aluminum alloy housing. • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life. • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation. • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available) • High dielectric strength cap with brass terminals and low resistance center coil brush. • Balanced rotor with nylon screws prevent arcing and reduce vibration at high RPMs. • Adjustable vacuum advance canister and high performance advance curve. • Precision machined chromoly advance weights and center plate eliminate erratic timing. • Meets stringent automobile susceptibility, vibration and shock requirements. • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-23) • Limited One Year Warranty.

Download instruction manual

Instruction Manual
Instruction Manual

Download PDF
