PerTronix D1000 Flame-Thrower Distributor HEI Chevrolet Small Block/Big Block Black Cap

PerTronix D1000 Flame-Thrower Distributor HEI Chevrolet Small Block/Big Block Black Cap

Part Number: D1000
Skip to product information

Highlights

  • New lightweight aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)

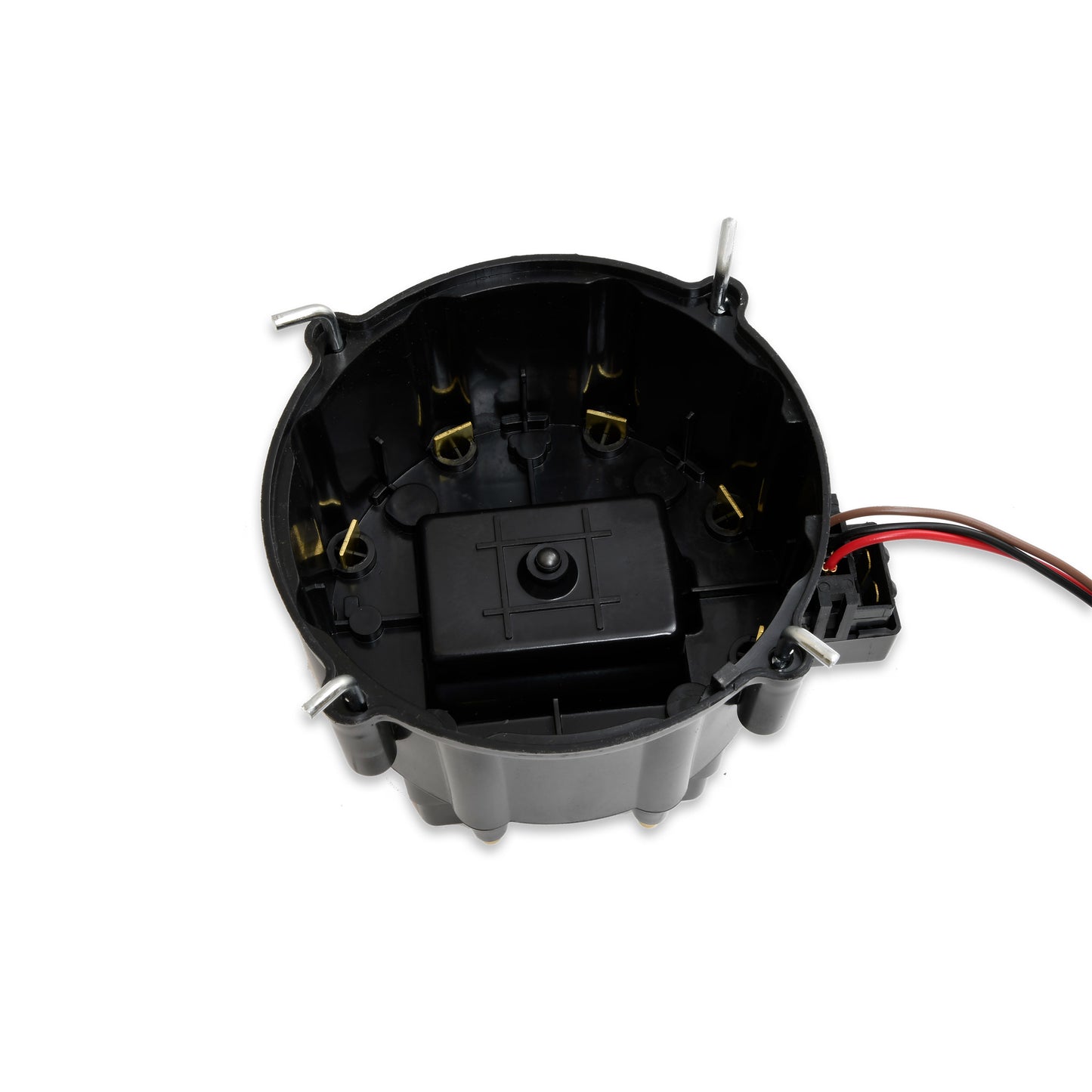

  • High dielectric strength cap with brass terminals and low resistance center coil brush.

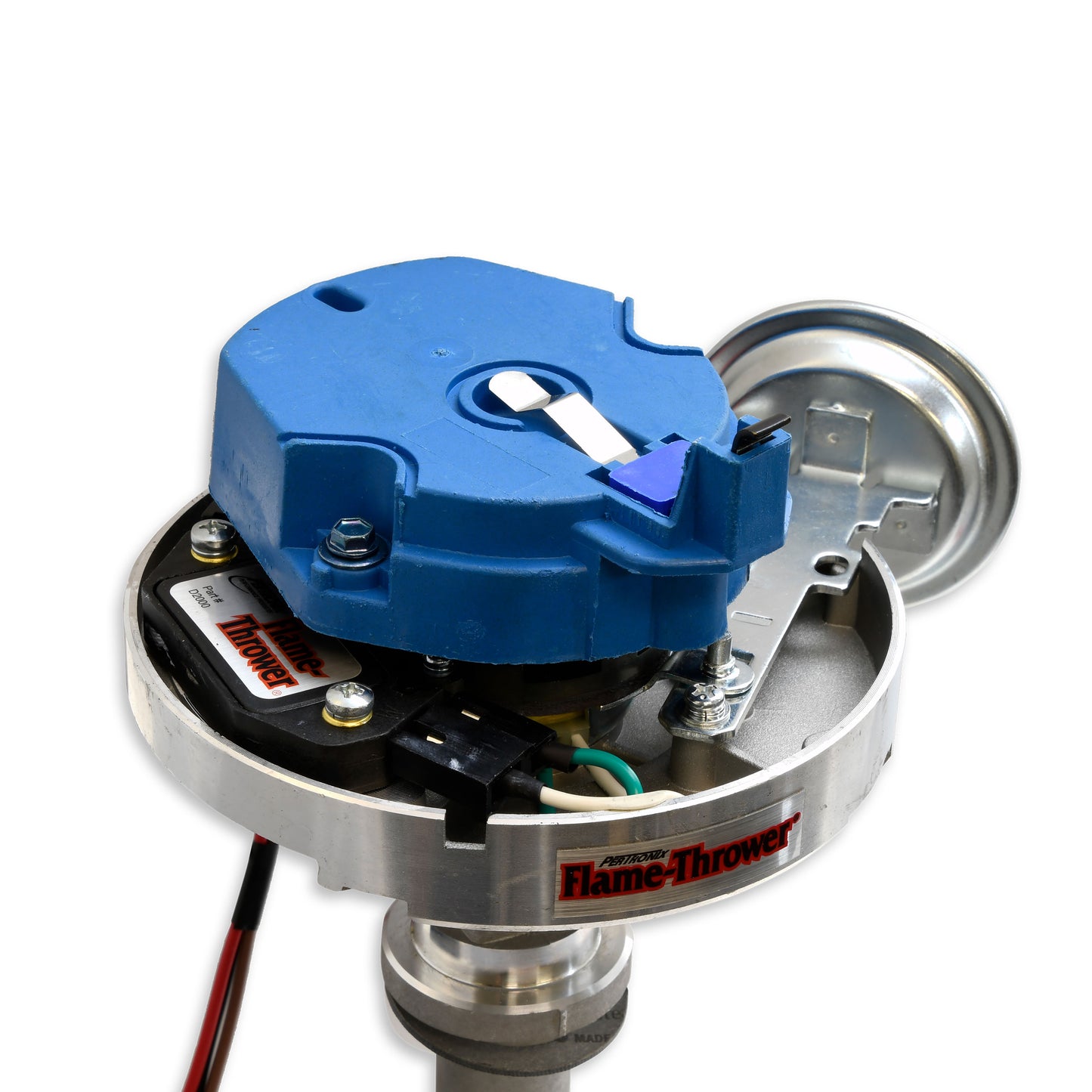

  • Balanced rotor with nylon screws prevent arcing and reduce vibration at high RPMs.
  • Adjustable vacuum advance canister and high performance advance curve.
  • Precision machined chromoly advance weights and center plate eliminate erratic timing.
  • Meets stringent automobile susceptibility, vibration and shock requirements
  • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-23)

Additional Information

STREET / STRIP HEI distributors Our HEI distributors are built from the ground up with all new components. We have engineered a special high energy module and coil combination that operates without misfires beyond 7500 RPM. That's nearly 3000 RPM higher than most stock HEI distributors. Flame-Thrower HEI distributor produce 67% more energy with a 45% faster spark breakdown time when compared to the stock HEI. This means twice the energy to the spark plugs. Our tests show that with these improvements wider plug gaps can be used resulting in an increasing flame kernel growth for more efficient combustion.

Specifications

Advance Type Vacuum and mechanical
Trigger Type Magnetic
Cap Terminal Gender Male
Cap Color Black
Adjustable Collar No
Computer Controlled Compatible No
Distributor Cap Included Yes
Ignition Module Included Yes
Ignition Box Required No
Ignition Coil Included Yes
Ignition Rotor Included Yes
Clamp Hardware Included No
Clamp Included No
Distributor Gear Included Yes
Gear Material Steel
Mechanical Tach Drive Provision No
Cap Diameter 6.295 Inches
Coil Wire Included No
Housing Material Aluminum
Housing Finish Natural
Housing Color Natural
Rotor Rotation Clockwise (Right)
Shaft Material Steel
Shaft Diameter .490 Inches
Shaft Color Natural
Connector Type Unsealed
Grade Type Performance
Marine Approved No

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Ignitor®, Ignitor II, Ignitor III – 30 months
  • Industrial Distributor – 90 days mechanical / 30 months Ignitor
  • Flame-Thrower® Spark Plug Wires – Lifetime
  • Flame-Thrower® HEI Distributors and Component Parts – Limited 1 Year
  • Flame-Thrower® Plug n’ Play Billet and Cast Distributors –1 Year Mechanical / 30 months module
  • Second Strike® & Digital Rev Limiter – Limited 1 Year Digital HP Ignition Box – Limited 1 Year
  • Digital HP Mobile Ignition Box – Limited 1 Year Contour Automotive Starters – Limited 1 Year
  • Compu-Fire VW Ignition and Rotating Electrical – Limited 1 Year
  • Flame-Thrower®/Compu-Fire® Coils – 90 days



Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

PerTronix D1000 Flame-Thrower Distributor HEI Chevrolet Small Block/Big Block Black Cap

PerTronix D1000 Flame-Thrower Distributor HEI Chevrolet Small Block/Big Block Black Cap

Part Number: D1000
Regular price $292.00
Sale price $292.00 Regular price $324.45

Part Number: D1000
Does This part fit My vehicle?
View All Vehicle Applications
Product details

Need help? Call us at 909-599-5955

  • Free shipping on $99+ orders in lower 48 states
  • 90-day return policy
  • We’re here to help! Call us on 909-599-5955

Similar Products

Emissions code

EMISSIONS CODE

What does this emissions code mean?

C.A.R.B. EO Number: D-57-23

View full details

Highlights

  • New lightweight aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • Distributor gear is ground to exact tolerances for tighter mesh with camshaft. (Bronze distributor gear available)
  • High dielectric strength cap with brass terminals and low resistance center coil brush.
  • Balanced rotor with nylon screws prevent arcing and reduce vibration at high RPMs.
  • Adjustable vacuum advance canister and high performance advance curve.
  • Precision machined chromoly advance weights and center plate eliminate erratic timing.
  • Meets stringent automobile susceptibility, vibration and shock requirements
  • Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-23)

Additional Information

STREET / STRIP HEI distributors Our HEI distributors are built from the ground up with all new components. We have engineered a special high energy module and coil combination that operates without misfires beyond 7500 RPM. That's nearly 3000 RPM higher than most stock HEI distributors. Flame-Thrower HEI distributor produce 67% more energy with a 45% faster spark breakdown time when compared to the stock HEI. This means twice the energy to the spark plugs. Our tests show that with these improvements wider plug gaps can be used resulting in an increasing flame kernel growth for more efficient combustion.

Specifications

Advance Type Vacuum and mechanical
Trigger Type Magnetic
Cap Terminal Gender Male
Cap Color Black
Adjustable Collar No
Computer Controlled Compatible No
Distributor Cap Included Yes
Ignition Module Included Yes
Ignition Box Required No
Ignition Coil Included Yes
Ignition Rotor Included Yes
Clamp Hardware Included No
Clamp Included No
Distributor Gear Included Yes
Gear Material Steel
Mechanical Tach Drive Provision No
Cap Diameter 6.295 Inches
Coil Wire Included No
Housing Material Aluminum
Housing Finish Natural
Housing Color Natural
Rotor Rotation Clockwise (Right)
Shaft Material Steel
Shaft Diameter .490 Inches
Shaft Color Natural
Connector Type Unsealed
Grade Type Performance
Marine Approved No

Installation instructions

Instruction Manual
Installation Instructions

Download PDF

Shipping & Delivery

Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

 Shipping Class Order Value Shipping Cost
UPS Ground $0 - 49.99 $6.99 flat rate
UPS Ground $50 - 98.99 $7.49 flat rate
UPS Ground $99+ Free

  • At this time, PerTronix does not offer expedited shipping options from our website.

  • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.

  • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

  • Once an item has tracking info, it cannot be cancelled. If you decide you don’t want the items after shipment, please take receipt of the item and process it via our return policy. Thank you for understanding!

Returns, Replacements & Warranty

Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

For complete details, visit our Returns page.

Warranty

  • Ignitor®, Ignitor II, Ignitor III – 30 months
  • Industrial Distributor – 90 days mechanical / 30 months Ignitor
  • Flame-Thrower® Spark Plug Wires – Lifetime
  • Flame-Thrower® HEI Distributors and Component Parts – Limited 1 Year
  • Flame-Thrower® Plug n’ Play Billet and Cast Distributors –1 Year Mechanical / 30 months module
  • Second Strike® & Digital Rev Limiter – Limited 1 Year Digital HP Ignition Box – Limited 1 Year
  • Digital HP Mobile Ignition Box – Limited 1 Year Contour Automotive Starters – Limited 1 Year
  • Compu-Fire VW Ignition and Rotating Electrical – Limited 1 Year
  • Flame-Thrower®/Compu-Fire® Coils – 90 days



Limited Warranty

PerTronix, LLC warrants to the original Purchaser that its products shall be free from defects in material and workmanship for a period, as specified above, from the day of purchase. This warranty covers the replacement/repair of the product only and does not cover the cost of removal and installation.

Should a part become defective it should be returned to the original selling retailer and must be accompanied with the sales receipt.
If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. The manufacturer reserves the right to replace or repair the alleged defective part and return the part freight collect.

Reviews

Applications

Year / Make / Model 1991-1994 Chevrolet Commercial Chassis
Engine Type V8
Notes

Year / Make / Model 1975 Chevrolet Bel Air
Engine Type V8
Engine Size(s) Cubic Inches: 350, 400
Notes

Year / Make / Model 1987-1994 Chevrolet Blazer
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350
Notes

Year / Make / Model 1975-1986 Chevrolet K5 Blazer
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1975-1986 Chevrolet C10
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1975-1986 Chevrolet C10 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 454
Notes

Year / Make / Model 1988-1997 Chevrolet C1500
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350
Notes

Year / Make / Model 1992-1997 Chevrolet C1500 Suburban
Engine Type V8
Engine Size(s) Liters: 5.7
Cubic Inches: 350
Notes

Year / Make / Model 1975-1986 Chevrolet C20
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1975-1986 Chevrolet C20 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1988-1997 Chevrolet C2500
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7, 7.4
Cubic Inches: 305, 350, 454
Notes

Year / Make / Model 1992-1997 Chevrolet C2500 Suburban
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 350, 454
Notes

Year / Make / Model 1975-1986 Chevrolet C30
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1988-1997 Chevrolet C3500
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 350, 454
Notes

Year / Make / Model 1975-1997 Chevrolet Camaro
Engine Type V8
Engine Size(s) Liters: 5.7
Cubic Inches: 267, 305, 350
Notes

Year / Make / Model 1975-1982 Chevrolet Caprice
Engine Type V8
Engine Size(s) Cubic Inches: 267, 305, 350, 400, 454
Notes

Year / Make / Model 1975-1982 Chevrolet El Camino
Engine Type V8
Engine Size(s) Cubic Inches: 267, 305, 350, 400
Notes

Year / Make / Model 1996-1997 Chevrolet Express 1500
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350
Notes

Year / Make / Model 1975-1995 Chevrolet G10
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400
Notes

Year / Make / Model 1996-1997 Chevrolet Express 2500
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350
Notes

Year / Make / Model 1975-1995 Chevrolet G20
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1996-1997 Chevrolet Express 3500
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 350, 454
Notes

Year / Make / Model 1975-1996 Chevrolet G30
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1975-1984 Chevrolet Impala
Engine Type V8
Engine Size(s) Cubic Inches: 267, 305, 350, 400, 454
Notes

Year / Make / Model 1975-1986 Chevrolet K10
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1975-1986 Chevrolet K10 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400
Notes

Year / Make / Model 1988-1997 Chevrolet K1500
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7
Cubic Inches: 305, 350
Notes

Year / Make / Model 1992-1997 Chevrolet K1500 Suburban
Engine Type V8
Engine Size(s) Liters: 5.7
Cubic Inches: 350
Notes

Year / Make / Model 1975-1986 Chevrolet K20
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1975-1986 Chevrolet K20 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400, 454
Notes

Year / Make / Model 1988-1997 Chevrolet K2500
Engine Type V8
Engine Size(s) Liters: 5.0, 5.7, 7.4
Cubic Inches: 305, 350, 454
Notes

Year / Make / Model 1992-1997 Chevrolet K2500 Suburban
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 350, 454
Notes

Year / Make / Model 1977-1986 Chevrolet K30
Engine Type V8
Engine Size(s) Cubic Inches: 350, 400, 454
Notes

Year / Make / Model 1988-1997 Chevrolet K3500
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 350, 454
Notes

Year / Make / Model 1975-1976 Chevrolet Laguna
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400
Notes

Year / Make / Model 1975-1982 Chevrolet Malibu
Engine Type V8
Engine Size(s) Cubic Inches: 267, 305, 350, 400
Notes

Year / Make / Model 1975-1988 Chevrolet Monte Carlo
Engine Type V8
Engine Size(s) Cubic Inches: 267, 305, 350, 400
Notes

Year / Make / Model 1975-1979 Chevrolet Monza
Engine Type V8
Engine Size(s) Cubic Inches: 262, 305
Notes

Year / Make / Model 1975-1979 Chevrolet Nova
Engine Type V8
Engine Size(s) Cubic Inches: 262, 305, 350
Notes

Year / Make / Model 1975 Chevrolet P10
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400
Notes

Year / Make / Model 1977-1979 Chevrolet P10
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 400
Notes

Year / Make / Model 1975-1989 Chevrolet P20
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1975-1997 Chevrolet P30
Engine Type V8
Engine Size(s) Liters: 5.7, 7.4
Cubic Inches: 350, 400, 454
Notes

Year / Make / Model 1987 Chevrolet R10
Engine Type V8
Notes

Year / Make / Model 1987-1988 Chevrolet R10 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350
Notes

Year / Make / Model 1989-1991 Chevrolet R1500 Suburban
Engine Type V8
Notes

Year / Make / Model 1987-1988 Chevrolet R20
Engine Type V8
Engine Size(s) Cubic Inches: 305, 350, 454
Notes

Year / Make / Model 1987-1988 Chevrolet R20 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1989 Chevrolet R2500
Engine Type V8
Notes

Year / Make / Model 1989-1991 Chevrolet R2500 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1987-1988 Chevrolet R30
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1989-1991 Chevrolet R3500
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1995-1997 Chevrolet Tahoe
Engine Type V8
Engine Size(s) Liters: 5.7
Cubic Inches: 350
Notes

Year / Make / Model 1987 Chevrolet V10
Engine Type V8
Notes

Year / Make / Model 1987-1988 Chevrolet V10 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes

Year / Make / Model 1989-1991 Chevrolet V1500 Suburban
Engine Type V8
Notes

Year / Make / Model 1987 Chevrolet V20
Engine Type V8
Notes

Year / Make / Model 1987-1988 Chevrolet V20 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1989-1991 Chevrolet V2500 Suburban
Engine Type V8
Engine Size(s) Cubic Inches: 350
Notes

Year / Make / Model 1987-1988 Chevrolet V30
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

Year / Make / Model 1989-1991 Chevrolet V3500
Engine Type V8
Engine Size(s) Cubic Inches: 350, 454
Notes

You may also like

RECENTLY VIEWED PRODUCTS
