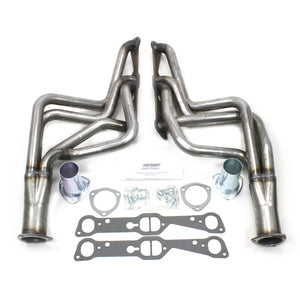

Patriot Exhaust H8301 1 5/8" Full Length Header Pontiac Firebird 350-455 70-79 Raw Steel

Patriot Exhaust H8301 1 5/8" Full Length Header Pontiac Firebird 350-455 70-79 Raw Steel

Part Number: H8301 / UPC 694342512224
Skip to product information

Highlights

  • Full length headers are typically used for higher RPM horsepower, but can also increase the mid range torque in applications were there is room to fit a long tube design.
  • Durable 18-gauge tubing
  • Comes complete with gaskets, header bolts and collector reducers.
  • Available in three finishes; raw steel for individual customizing, Hi-Temp Black Coating or Metallic Ceramic Thermal Barrier Coating
  • Limited One Year Warranty

Pontiac - Firebird, Trans AM

Years:
1970-1979
Engine:
350-455
EO Code:
EO Code 2
Tube Size:
1 5/8"
Collector Size:
3"
Port Shape:
SAP
  • 104 - Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.
  • Pontiac - GTO, Le Mans, Grand Am

    Years:
    1964-1975
    Engine:
    326-455
    EO Code:
    EO Code 2
    Tube Size:
    1 5/8"
    Collector Size:
    3"
    Port Shape:
    SAP
  • 104 - Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.
  • Additional Information

    Full length and fenderwell headers provide the ultimate performance for street rodders with high performance engines. These header styles have longer primary tubes, which help produce more horsepower and torque than Tight Tucks. Chassis headers fit inside the frame rails, but if there is not enough room, our "up and over" fenderwell headers will provide the same great performance with an awesome look.

    Installation instructions

    Instruction Manual
    Installation Instructions

    Download PDF

    Shipping & Delivery

    Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

     Shipping Class Order Value Shipping Cost
    UPS Ground $0 - 49.99 $6.99 flat rate
    UPS Ground $50 - 98.99 $7.49 flat rate
    UPS Ground $99+ Free

    • At this time, PerTronix does not offer expedited shipping options from our website.
    • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
    • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

    Returns, Replacements & Warranty

    Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

    Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

    For complete details, visit our Returns page.

    Warranty

    All Patriot headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any other discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision,improper installation, off-road use, road hazards, the use of exhaust insulting wrap or like products or rust occurring after installation, is not covered by the warranty. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the original sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the right to replace or repair the alleged defective part and return the part freight collect.

    Reviews

    Patriot Exhaust H8301 1 5/8" Full Length Header Pontiac Firebird 350-455 70-79 Raw Steel

    Patriot Exhaust H8301 1 5/8" Full Length Header Pontiac Firebird 350-455 70-79 Raw Steel

    Part Number: H8301 / UPC 694342512224
    Regular price $374.45
    Sale price $374.45 Regular price

    Part Number: H8301 / UPC 694342512224
    Does This part fit My vehicle?
    View All Vehicle Applications

    Need help? Call us at 909-599-5955

    • Free shipping on $99+ orders in lower 48 states
    • 90-day return policy
    • We’re here to help! Call us on 909-599-5955
    Emissions code

    Emissions Code

    Continue Reading to Understand Emissions Codes

    Similar Products

    View full details

    Highlights

    • Full length headers are typically used for higher RPM horsepower, but can also increase the mid range torque in applications were there is room to fit a long tube design.
    • Durable 18-gauge tubing
    • Comes complete with gaskets, header bolts and collector reducers.
    • Available in three finishes; raw steel for individual customizing, Hi-Temp Black Coating or Metallic Ceramic Thermal Barrier Coating
    • Limited One Year Warranty

    Pontiac - Firebird, Trans AM

    Years:
    1970-1979
    Engine:
    350-455
    EO Code:
    EO Code 2
    Tube Size:
    1 5/8"
    Collector Size:
    3"
    Port Shape:
    SAP
  • 104 - Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.
  • Pontiac - GTO, Le Mans, Grand Am

    Years:
    1964-1975
    Engine:
    326-455
    EO Code:
    EO Code 2
    Tube Size:
    1 5/8"
    Collector Size:
    3"
    Port Shape:
    SAP
  • 104 - Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.
  • Additional Information

    Full length and fenderwell headers provide the ultimate performance for street rodders with high performance engines. These header styles have longer primary tubes, which help produce more horsepower and torque than Tight Tucks. Chassis headers fit inside the frame rails, but if there is not enough room, our "up and over" fenderwell headers will provide the same great performance with an awesome look.

    Installation instructions

    Instruction Manual
    Installation Instructions

    Download PDF

    Shipping & Delivery

    Our ignition and exhaust products ship from our warehouse in Lenexa, KS. Our normal shipping time is 2-3 business days for in-stock parts.

     Shipping Class Order Value Shipping Cost
    UPS Ground $0 - 49.99 $6.99 flat rate
    UPS Ground $50 - 98.99 $7.49 flat rate
    UPS Ground $99+ Free

    • At this time, PerTronix does not offer expedited shipping options from our website.
    • All packages must be inspected upon receipt for any missing or damaged goods and claims for such must be made within 7 days of receipt.
    • PerTronix does not currently ship our products internationally from our web store. For international orders call 909-599-5955 or connect with us here.

    Returns, Replacements & Warranty

    Returns at Pertronix are accepted within 90 days of purchase with prior authorization, ensuring items are in new, resalable condition. To initiate a return, call for an RGA and follow provided instructions. Customers are responsible for return shipping, using a trackable method.

    Refunds exclude initial shipping and handling fees and may be subject to a restocking fee. For defective or damaged items, contact Pertronix directly. We are not responsible for user-initiated damage/loss of parts.

    For complete details, visit our Returns page.

    Warranty

    All Patriot headers and exhaust products are guaranteed, to the original purchaser, to be free of defects in materials and workmanship for one year. This warranty covers the replacement or repair of the product only and does not cover the cost of removal and installation, customer applied aftermarket coatings or any other discoloration or corrosion of finished surfaces. Damage or product failure resulting from collision,improper installation, off-road use, road hazards, the use of exhaust insulting wrap or like products or rust occurring after installation, is not covered by the warranty. Should a part become defective it should be returned to the original selling retailer and must be accompanied with the original sales receipt. If there is no retailer in your area, call the factory for a return authorization and return your part prepaid to the factory for inspection. PerTronix reserves the right to replace or repair the alleged defective part and return the part freight collect.

    Reviews

    Applications

    Year / Make / Model 1964-1966 Pontiac GTO
    Engine Type V8
    Engine Size(s) Cubic Inches: 389
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1967 Pontiac GTO
    Engine Type V8
    Engine Size(s) Cubic Inches: 400
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1970-1973 Pontiac GTO
    Engine Type V8
    Engine Size(s) Cubic Inches: 455
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1973 Pontiac GTO
    Engine Type V8
    Engine Size(s) Cubic Inches: 400
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1970-1979 Pontiac Firebird
    Engine Type V8
    Engine Size(s) Cubic Inches: 350
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1970-1974 Pontiac Firebird
    Engine Type V8
    Engine Size(s) Cubic Inches: 400
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1971-1974 Pontiac Firebird
    Engine Type V8
    Engine Size(s) Cubic Inches: 455
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1975-1976 Pontiac Firebird
    Engine Type V8
    Engine Size(s) Cubic Inches: 455
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1977-1979 Pontiac Firebird
    Engine Type V8
    Engine Size(s) Cubic Inches: 403
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1973-1974 Pontiac Grand Am
    Engine Type V8
    Engine Size(s) Cubic Inches: 350, 400, 455
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1975 Pontiac Grand Am
    Engine Type V8
    Engine Size(s) Cubic Inches: 350, 400, 455
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1964-1967 Pontiac LeMans
    Engine Type V8
    Engine Size(s) Cubic Inches: 326
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1968-1975 Pontiac LeMans
    Engine Type V8
    Engine Size(s) Cubic Inches: 350
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1968-1974 Pontiac LeMans
    Engine Type V8
    Engine Size(s) Cubic Inches: 400
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1970-1974 Pontiac LeMans
    Engine Type V8
    Engine Size(s) Cubic Inches: 455
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.

    Year / Make / Model 1975 Pontiac LeMans
    Engine Type V8
    Engine Size(s) Cubic Inches: 400
    Notes
    • Some factory heads do not have end bolt holes and should be drilled and tapped to assure proper sealing.
