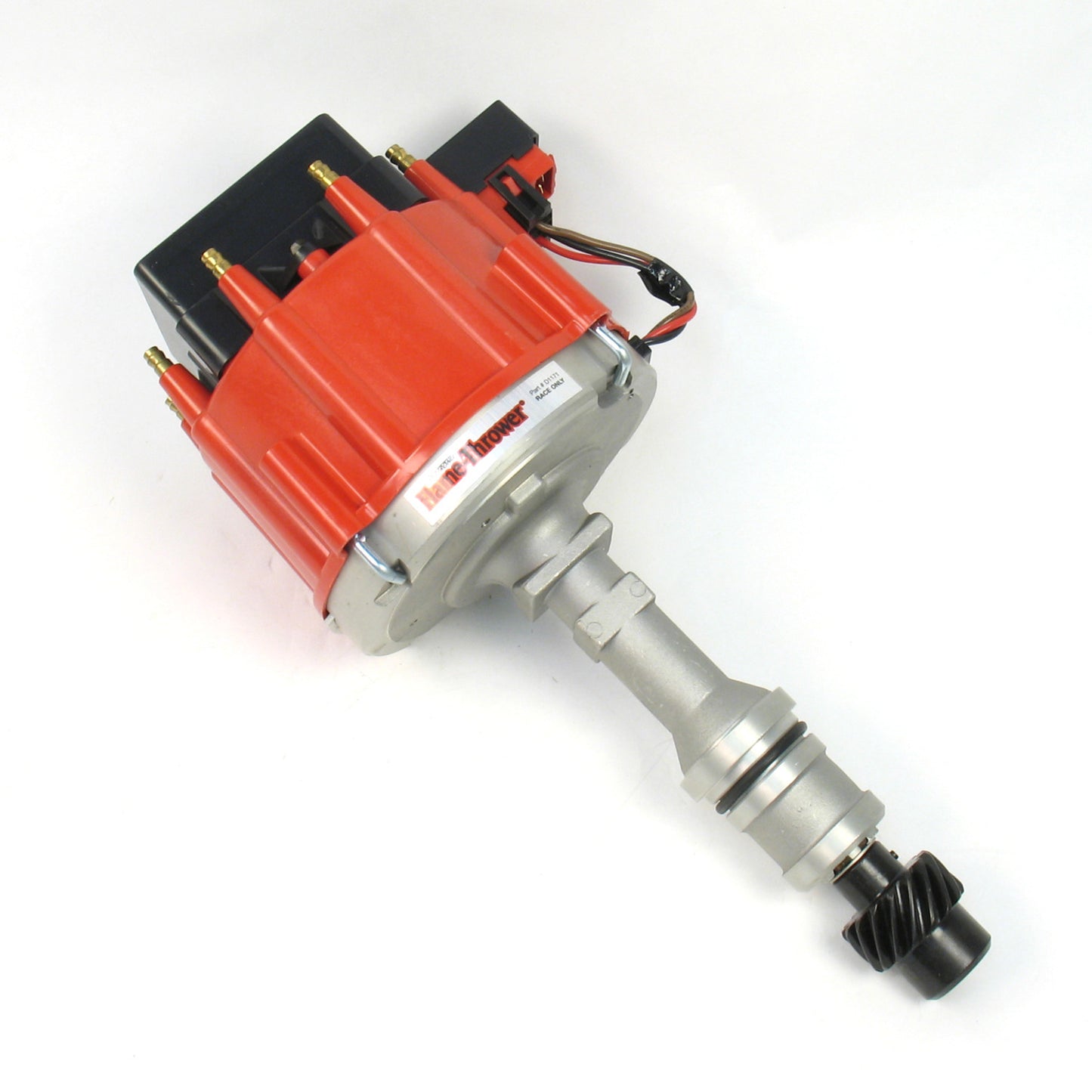

PerTronix D1171 Flame-Thrower Race Distributor HEI Oldsmobile 260-455 Red Cap
D1171

PerTronix D1171 Flame-Thrower Race Distributor HEI Oldsmobile 260-455 Red Cap

Part Number: D1171
UPC:

$304.80
+ -
3

Emissions Code

Continue reading

  • Highlights
  • Additional Information
  • Download Instruction Manual

Highlights

  • New lightweight A384 cast aluminum alloy housing.
  • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
  • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
  • RACE ONLY 7.2 amp module and 50,000 volt coil.
  • Distributor gear is ground to exact tolerances for tighter mesh with cam. (Bronze distributor gear available)

Additional Information

Race HEI units use all new components and feature an electronic module and coil combination that optimizes spark energy and peak current to the spark plug in the 6000 to 8500 RPM range. Compared to our street or strip version, race units produce 42 percent more energy with 46 percent faster spark breakdown time allowing 48 percent more peak current to reach the spark plug. This abundant energy doubles the spark intensity during the critical one millisecond of burn time. Great for both circle track and drag race applications where factory type HEI distributors are mandated. Product Features • New lightweight A384 cast aluminum alloy housing • Aligned and honed high quality bronze sintered bushings for reduced friction and extended life • Centerless ground corrosion resistant shaft reduces friction and provides concentric operation • RACE ONLY 7.2 amp module and 50,000 volt coil • Distributor gear is ground to exact tolerances for tighter mesh with cam (Bronze distributor gear available)

Download Instruction Manual

Instruction Manual
Instruction Manual

Download PDF
