Doug's Headers D314-R 1 7/8" 4-Tube Full Length Header Chevrolet C10 Truck LS1/LS6 Swap 73-87 Raw Steel
D314-R

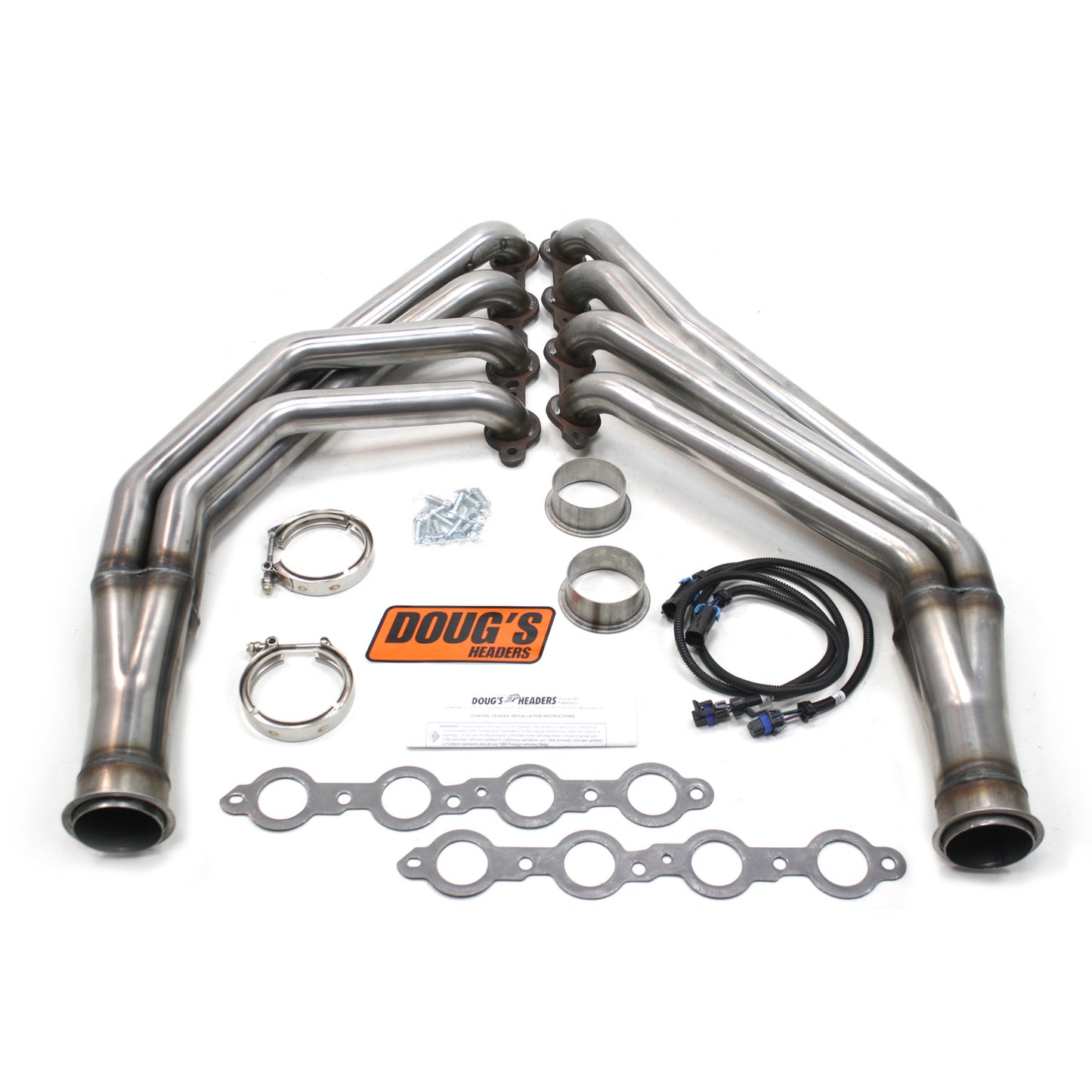

Doug's Headers D314-R 1 7/8" 4-Tube Full Length Header Chevrolet C10 Truck LS1/LS6 Swap 73-87 Raw Steel

Part Number: D314-R
UPC: 694342536541

$529.66
+ -
2

Emissions Code

Continue reading

  • Highlights
  • Applications and Footnotes
  • Applications and Footnotes
  • Additional Information
  • Download Instruction Manual

Highlights

  • 3/8" Thick machined flanges...no warping
  • CNC mandrel bent tubes... accurate fit & better flow
  • Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
  • Heavy 16 gauge tubing...longer life
  • Tubes are pre-polished to remove scratches and the header is left unfinished (raw steel) for individual customizing

Applications and Footnotes

Chevrolet/GMC - GMC 2WD TRUCKS & SUV

EMISSION AUTO STD TUBE COLLECTOR PORT
YEARS ENGINES CODE A/C P/B P/S COL FLR COL FLR SIZE (in.) SIZE (in.) SHAPE
73 - 87 LS1-LS6 Y Y Y N Y N Y 1 7/8 3 RD
Check motor mount position before ordering
Equipped with 02 Sensor Bungs
Includes O2 sensor extension(s) harness
LS1/LS6 engines require the use of a LS1 oil pan for proper header fit.
Long tube headers for off-highway racing use only
Requires a Doug's LS1 /LS6 motor mount adapter plate kit P/N SK101 or equivalent see catalog page__
This long tube header has excellent ground clearance with collector above the bottom of the frame rails
Uses 3" V band collectors with clamps provided
Will not fit manual transmission cars with factory Z bar clutch linkage

Applications and Footnotes

Chevrolet/GMC - GMC 2WD TRUCKS & SUV

YEARS 73 - 87
ENGINES LS1-LS6
EMISSION CODE
A/C Y
P/B Y
P/S Y
AUTO COL N
AUTO FLR Y
STD COL N
STD FLR Y
TUBE SIZE (in.) 1 7/8
COLLECTOR SIZE (in.) 3
PORT SHAPE RD
Check motor mount position before ordering
Equipped with 02 Sensor Bungs
Includes O2 sensor extension(s) harness
LS1/LS6 engines require the use of a LS1 oil pan for proper header fit.
Long tube headers for off-highway racing use only
Requires a Doug's LS1 /LS6 motor mount adapter plate kit P/N SK101 or equivalent see catalog page__
This long tube header has excellent ground clearance with collector above the bottom of the frame rails
Uses 3" V band collectors with clamps provided
Will not fit manual transmission cars with factory Z bar clutch linkage

Key for abbreviations and acronyms
2V Two valve cylinder head
DP Dual Smog Pump (emissions device)
PSIG Pounds Per Square Inch Gauge
3V Three valve cylinder head
E.O. Executive Order
RD Round Port
4V Four valve cylinder head
EGR Exhaust Gas Recirculation (emissions device)
REC Rectangle Port
A/C Air Conditioning
FLR Floor
SAP Same As (cylinder head) Port
AUTO Automatice Transmission
MCTBC Metallic Ceramic Thermal Barrier Coating
SP Single Smog Pump (emissions device)
COL Column shift
OVL Oval Port
STD Standard Transmission
COLL Collector
P/B Power Brakes
T.P.I. Tuned Port Injection
DIA Diameter
P/S Power Steering

Emissions Code Key

The application guide above specifies which Emissions Code applies to this part. Doug's Headers uses a voluntary product identification program whereby all mission-sensitive products can be identified by placing numbered labels in product packaging and listing corresponding numeric codes next to each part number. The corresponding numbers and explanations are as follows:

This Product has been granted a California Air Resources Board (CARB) "E.O" (Executive Order) Exemption, or is considered a Direct Replacement or Consolidated Replacement part. It is 50 State Legal when installed on the appropriate vehicle per the Manufacturer Application guide and Installation Instructions

This product is Legal for use on 1974 and older non catalyst equipped vehicles and is considered a "replacement part" per California Air Resources Board regulations, as long as ALL emissions sensitive components are retained, including A.I.R., EGR, Heat Risers etc. Failure to retain any of these components, or use on any 1975 or newer catalytic converter equipped car would render this product Illegal for Street or Off Highway Use in California, or in states that have adopted California Emissions regulations and may only be used for Closed Course Competition.

This product is Not legal for Street or Off Highway use in California or in states that have adopted California Emissions Regulations and is only intended for Closed Course Competition use, except 1965 and Older US manufactured California Certified vehicles, 1967 or older US manufactured Federally Certified vehicles, or 1967 and older Foreign manufactured vehicles which may have any aftermarket add-on or modified part installed as long as the vehicle can still meet the tailpipe emission standards for the year of the vehicle and retain any original or retrofit crankcase control (PCV) devices and NOx device required for the year of the vehicle.

Additional Information

Doug's PASSENGER CAR HEADERS Long Tube Raw Steel Header development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

Download Instruction Manual

Instruction Manual
Instruction Manual

Download PDF
